Relay And Control Unit Locations - Dashboard
Relay And Control Unit Locations - Dashboard

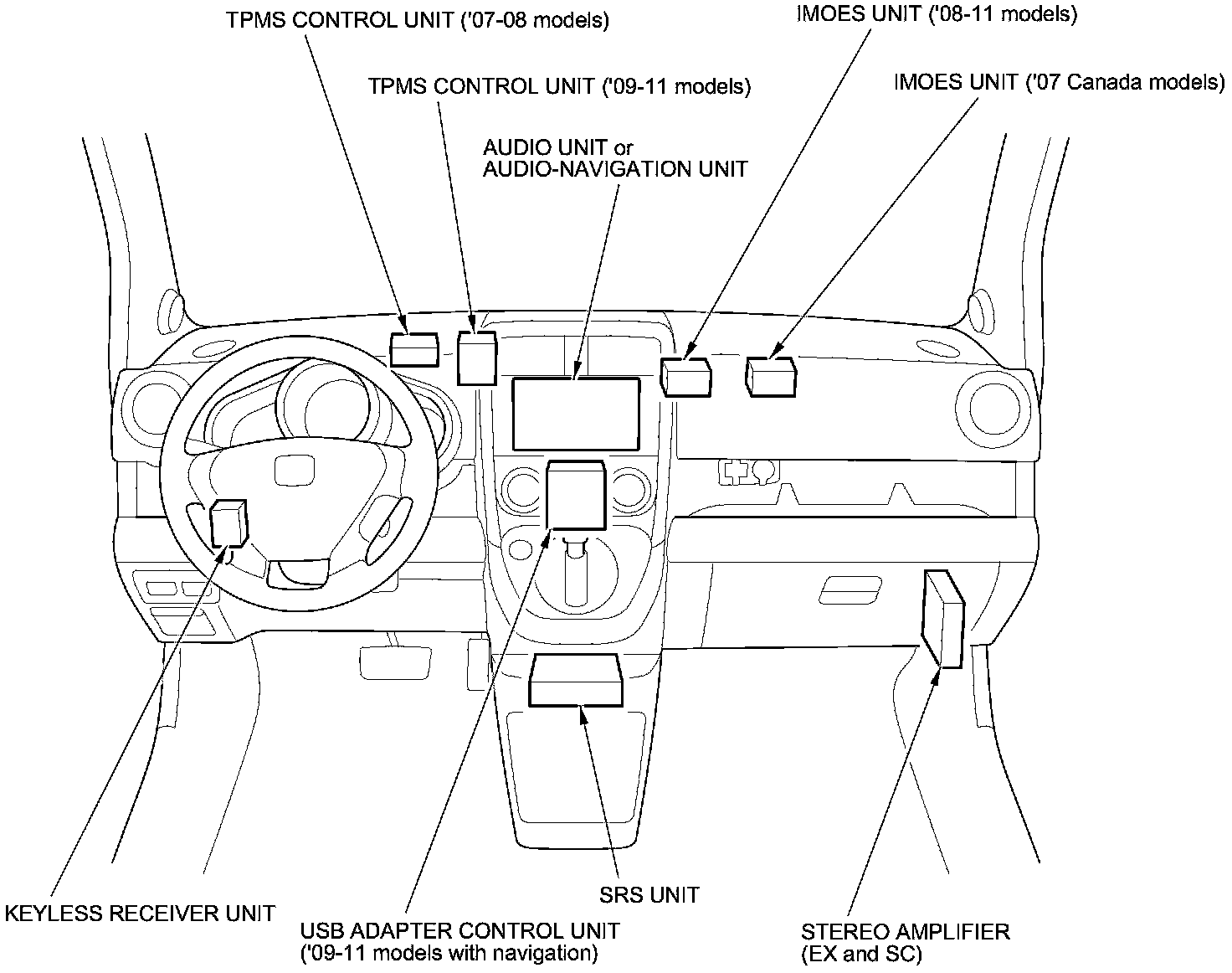

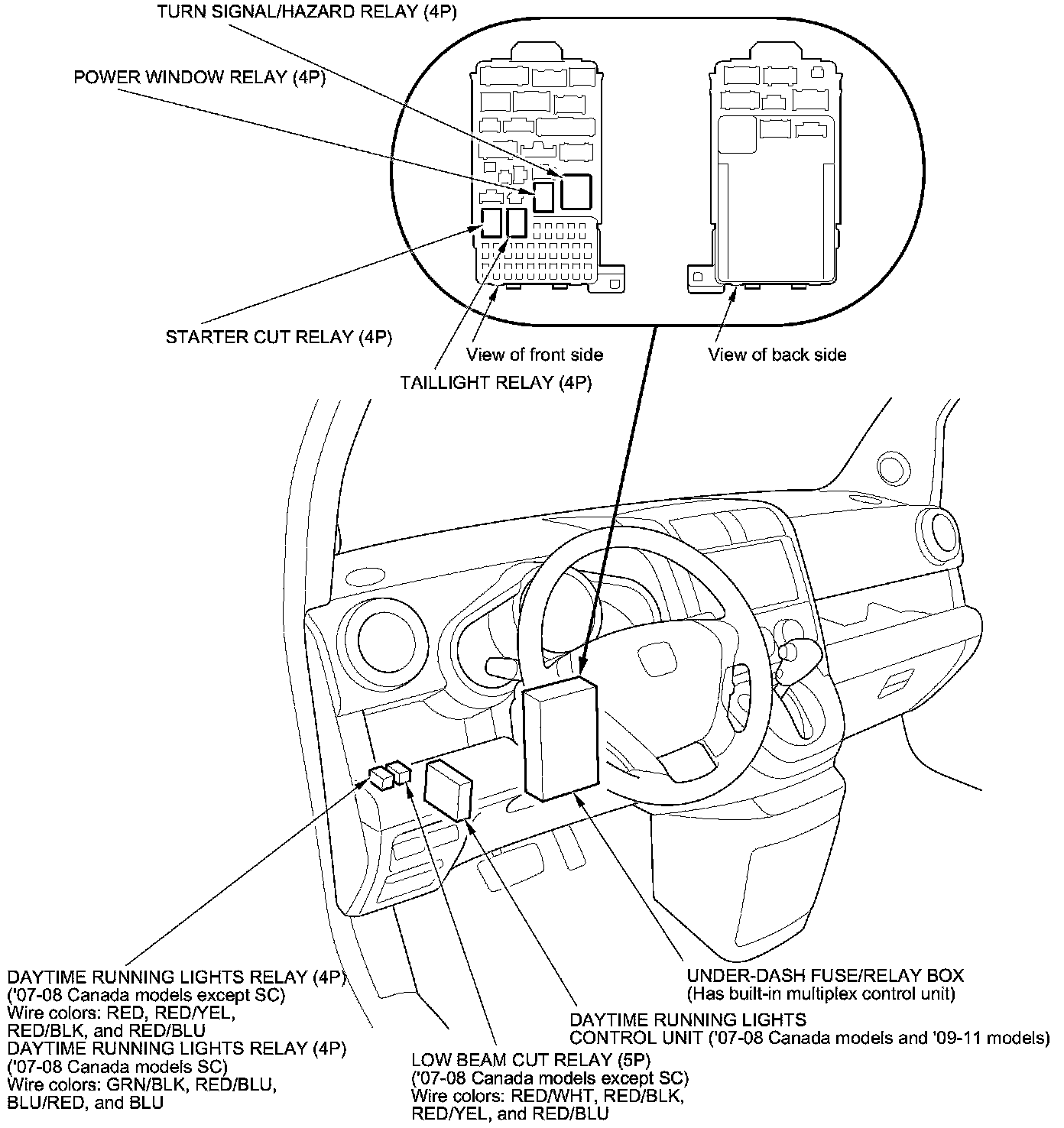

Relay and Control Unit Locations - Dashboard

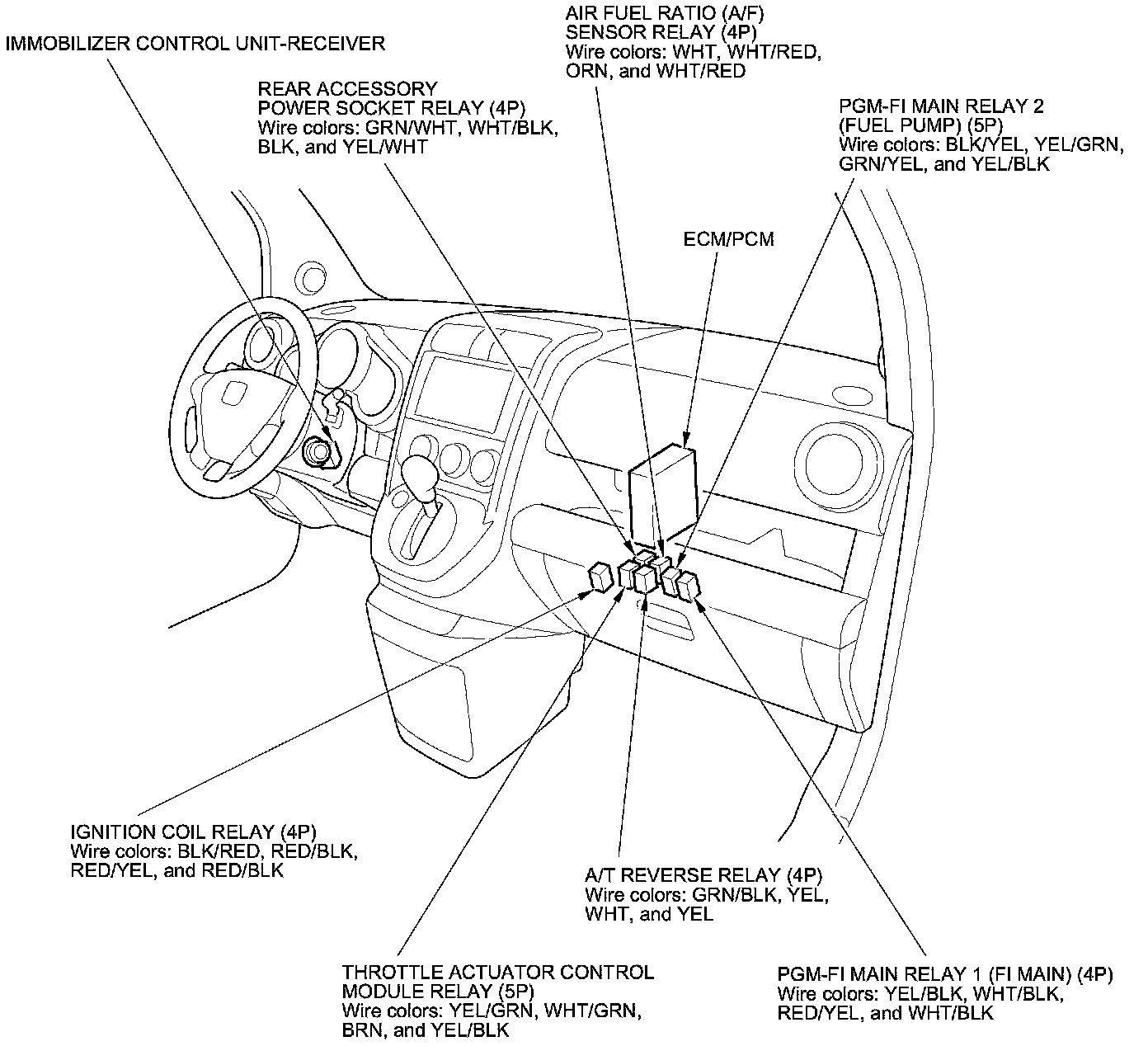

'07-08 models

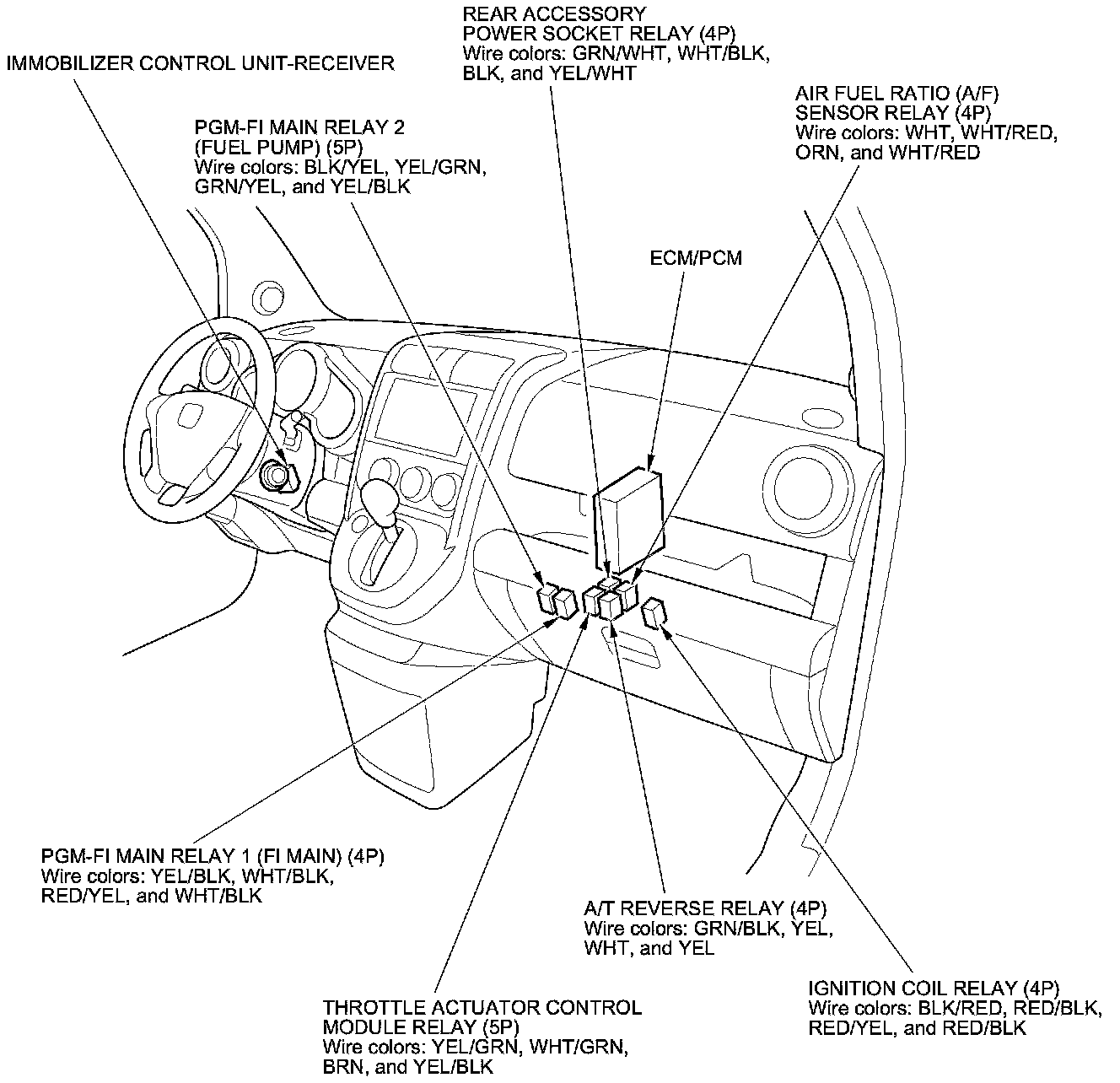

'09-11 models
