Splash Shield Replacement

Splash Shield Replacement

NOTE:

- Take care not to scratch the body.
- When prying with a flat-tip screwdriver, wrap it with protective tape to prevent damage.

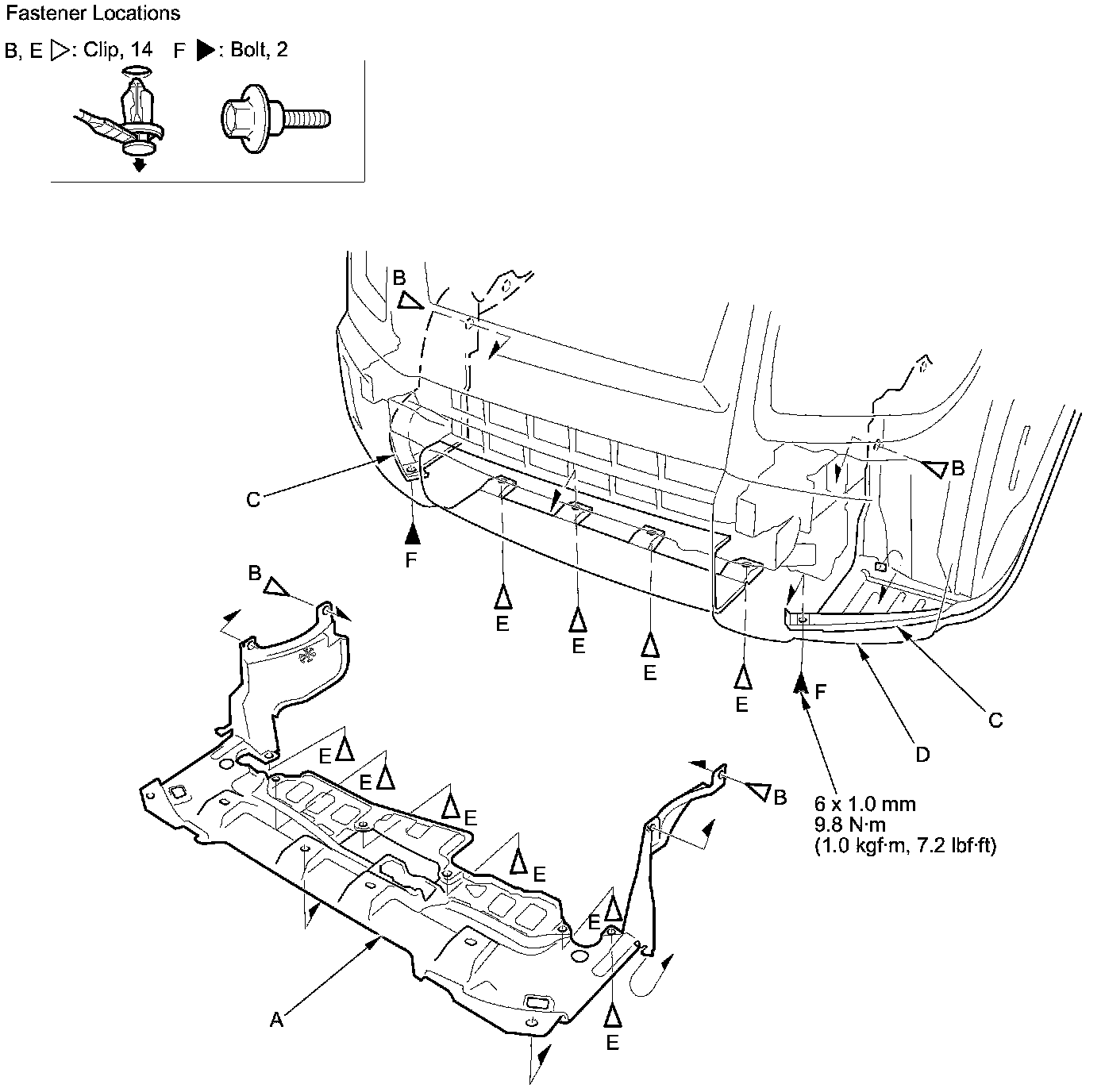

1. Remove the splash shield (A).

1. From both wheel arches, detach the clips (B) securing the front inner fender (C) and the splash shield to the body.

2. From under the front bumper (D), detach the clips (E) and remove the bolts (F).

3. Pull out the splash shield.





2. Install the splash shield in the reverse order of removal, and note these items:

- If the clips are damaged or stress-whitened, replace them with new ones.
- Push the clips into place securely.
