Home >> Honda >> 2009 >> S2000 L4-2.2L >> Repair and Diagnosis >> Power and Ground Distribution >> Fuse >> Locations >> Under-dash Fuse/Relay Box - Fuse-to-Components Index

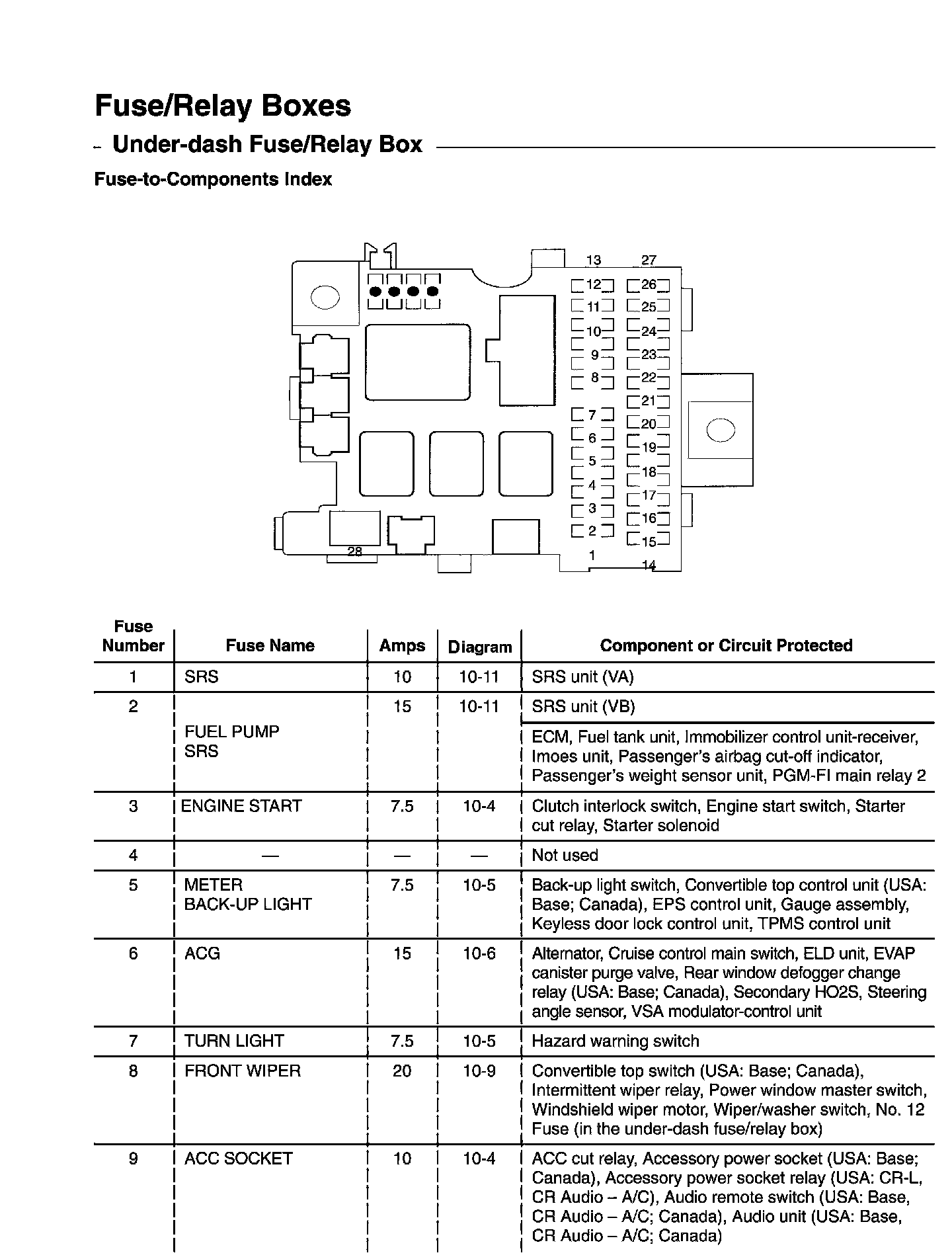

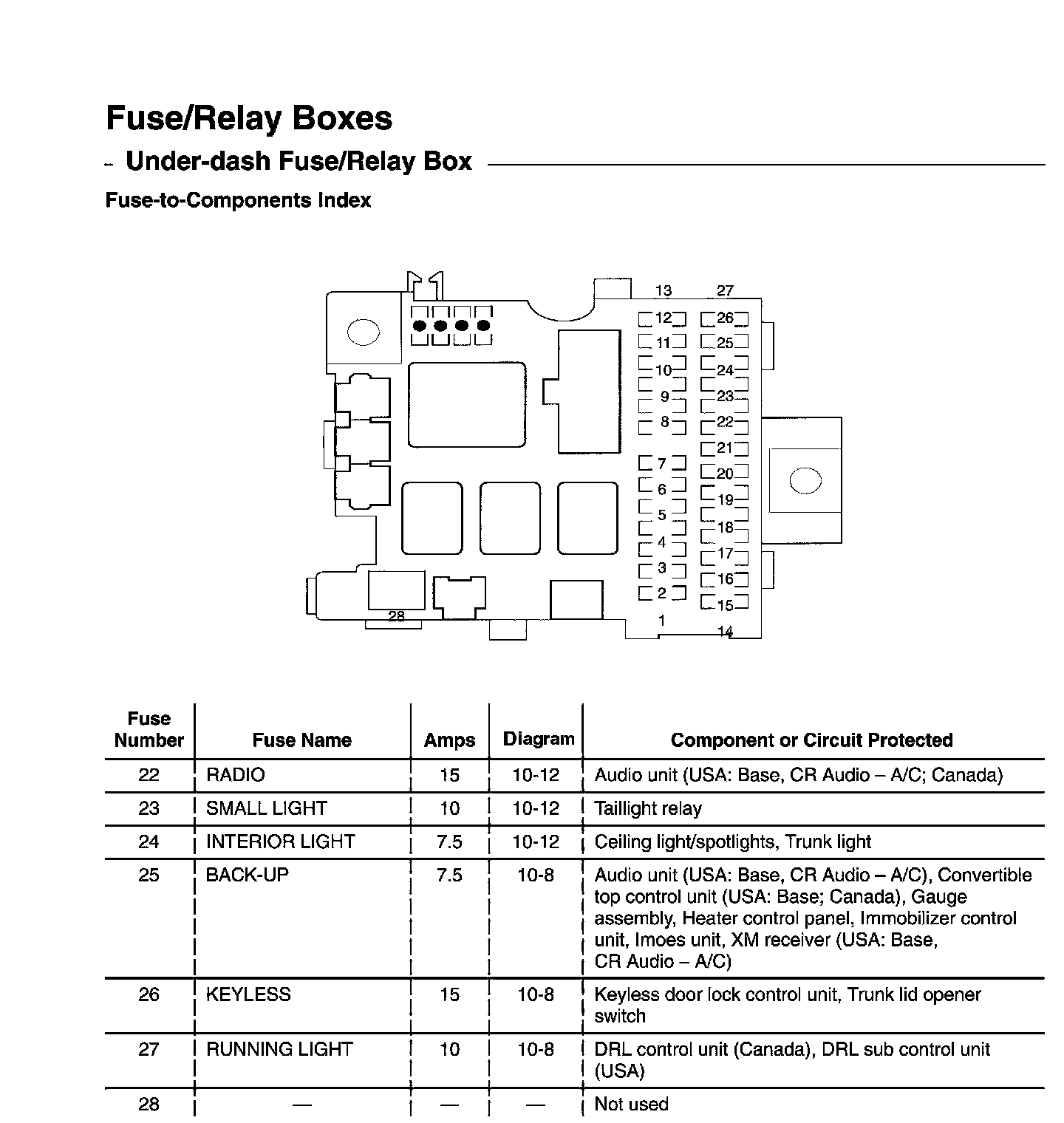

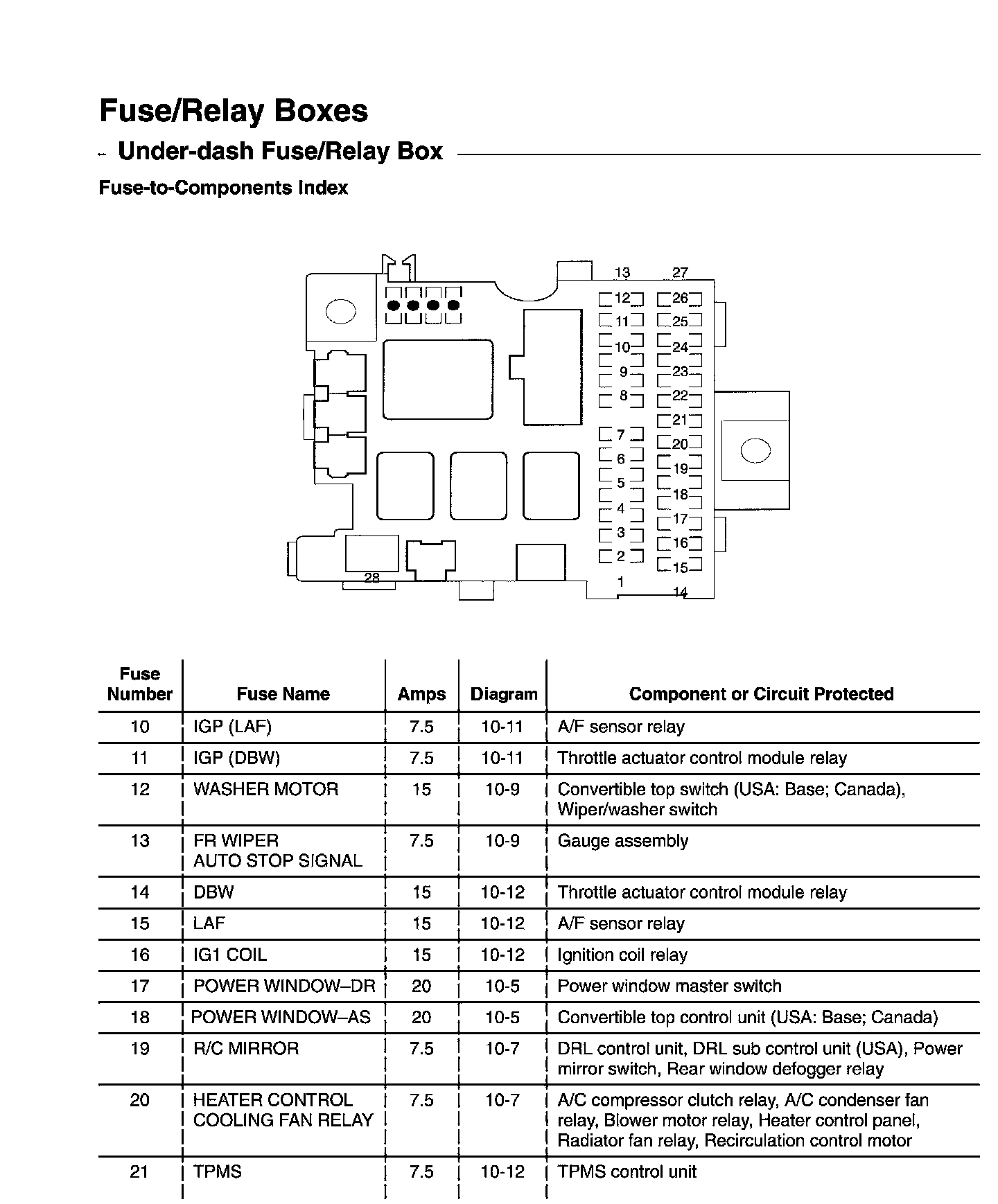

Under-dash Fuse/Relay Box - Fuse-to-Components Index
