Voice Activation Module
>>

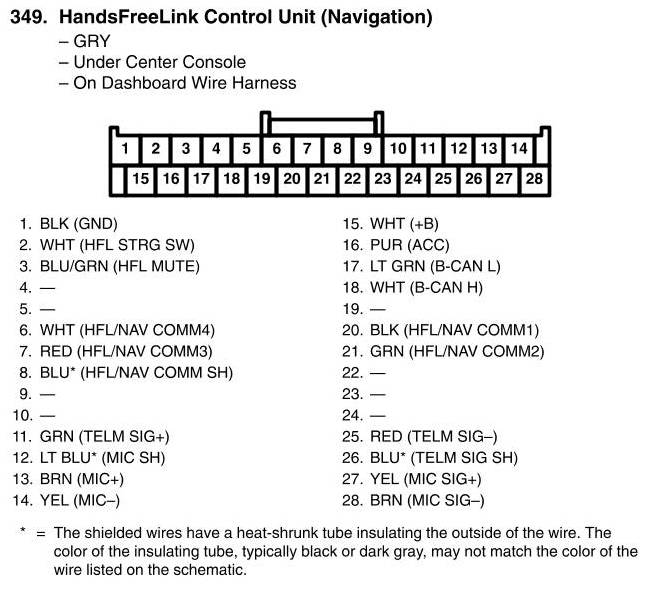

HandsFreeLink Control Unit Connector View (Navigation)
HandsFreeLink Control Unit Connector View (Navigation)
