Voice Activation Module
>>

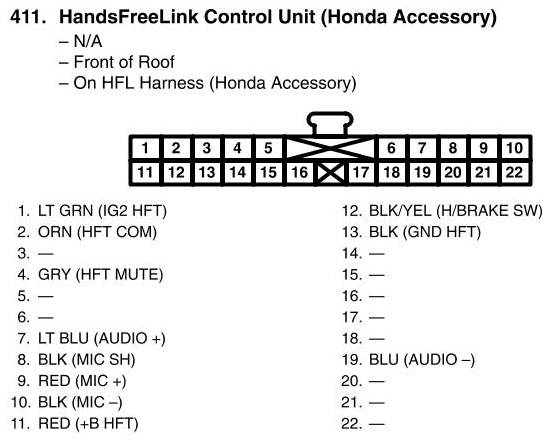

HandsFreeLink Control Unit Connector View (Honda Accessory)
HandsFreeLink Control Unit Connector View (Honda Accessory)
