Trailer Brake Control Module
>>

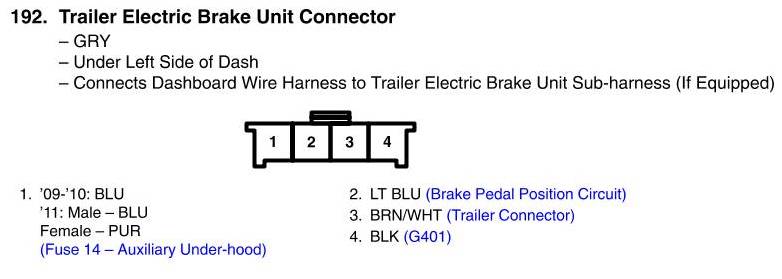

Trailer Electric Brake Unit Connector Connector View
Trailer Electric Brake Unit Connector Connector View
