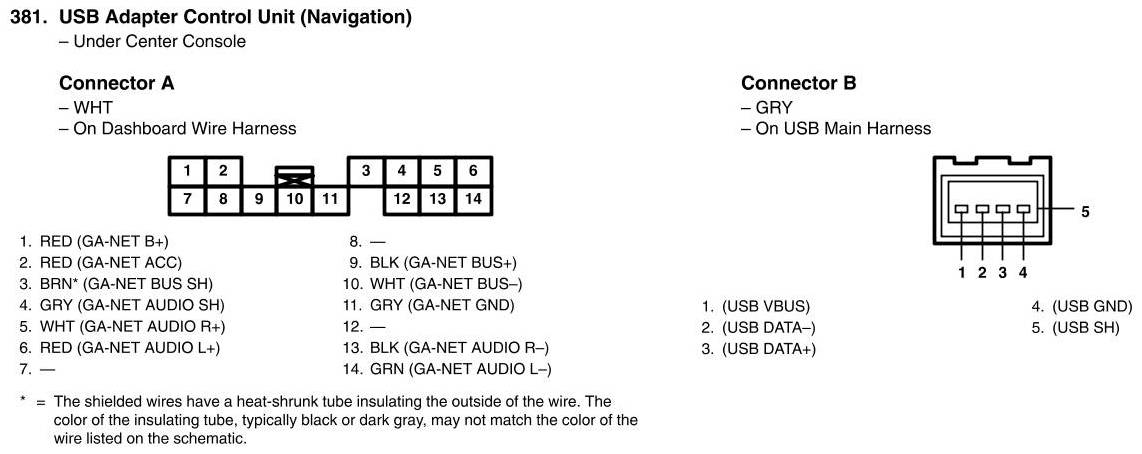

View 381 - USB Control Adapter Unit Connector View (Navigation)
View 381 - USB Control Adapter Unit Connector View (Navigation)
