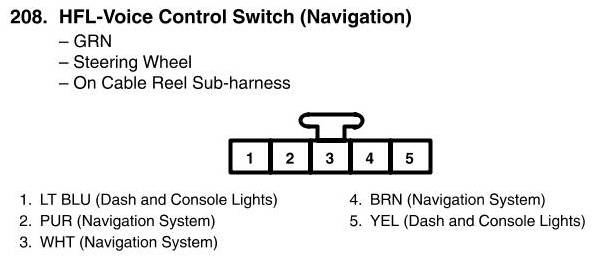

View 208 - HFL-Voice Control Switch Connector View (Navigation)
View 208 - HFL-Voice Control Switch Connector View (Navigation)
