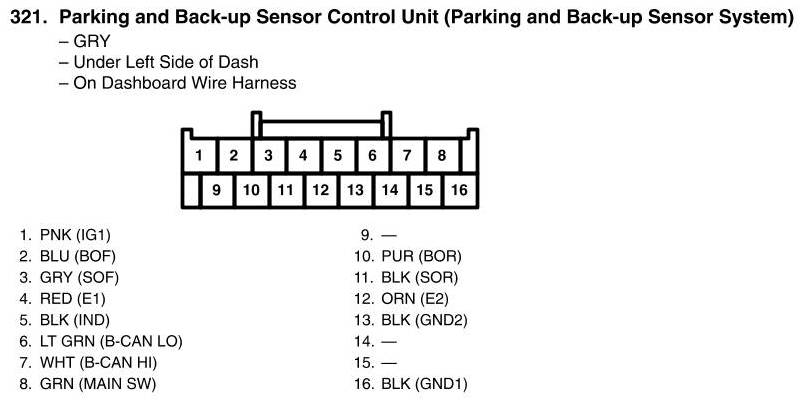

Parking And Back-up Sensor Control Unit Connector View
Parking And Back-up Sensor Control Unit Connector View
