Electronic Control Systems

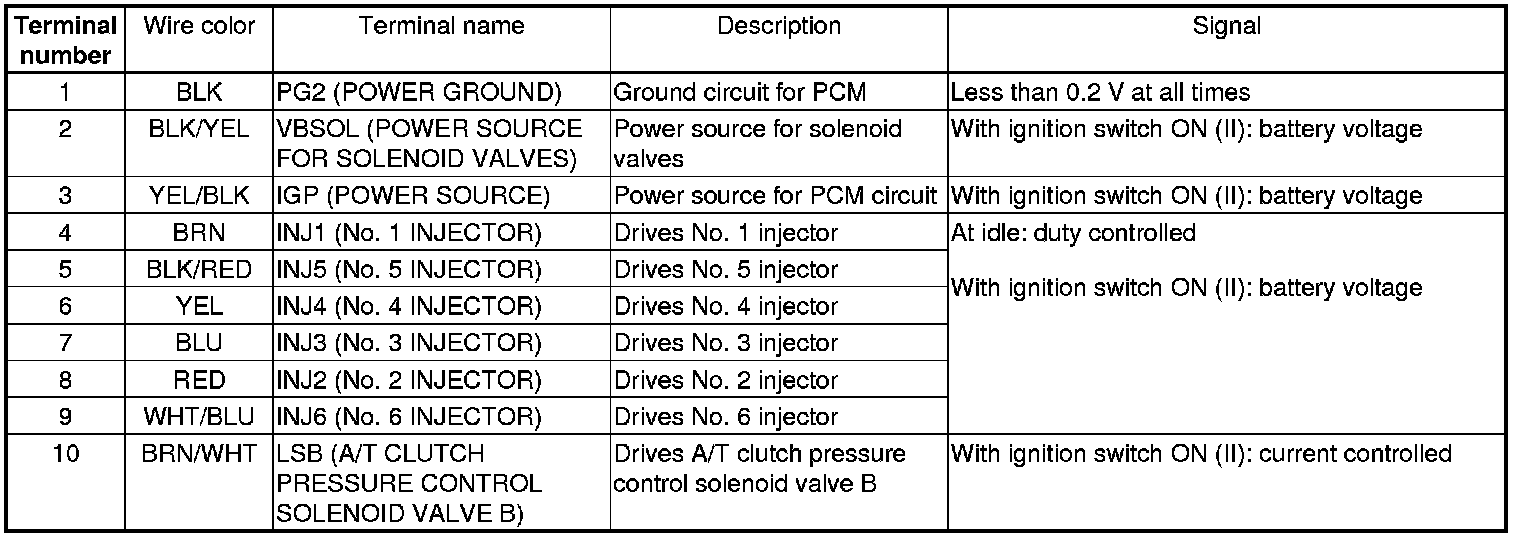

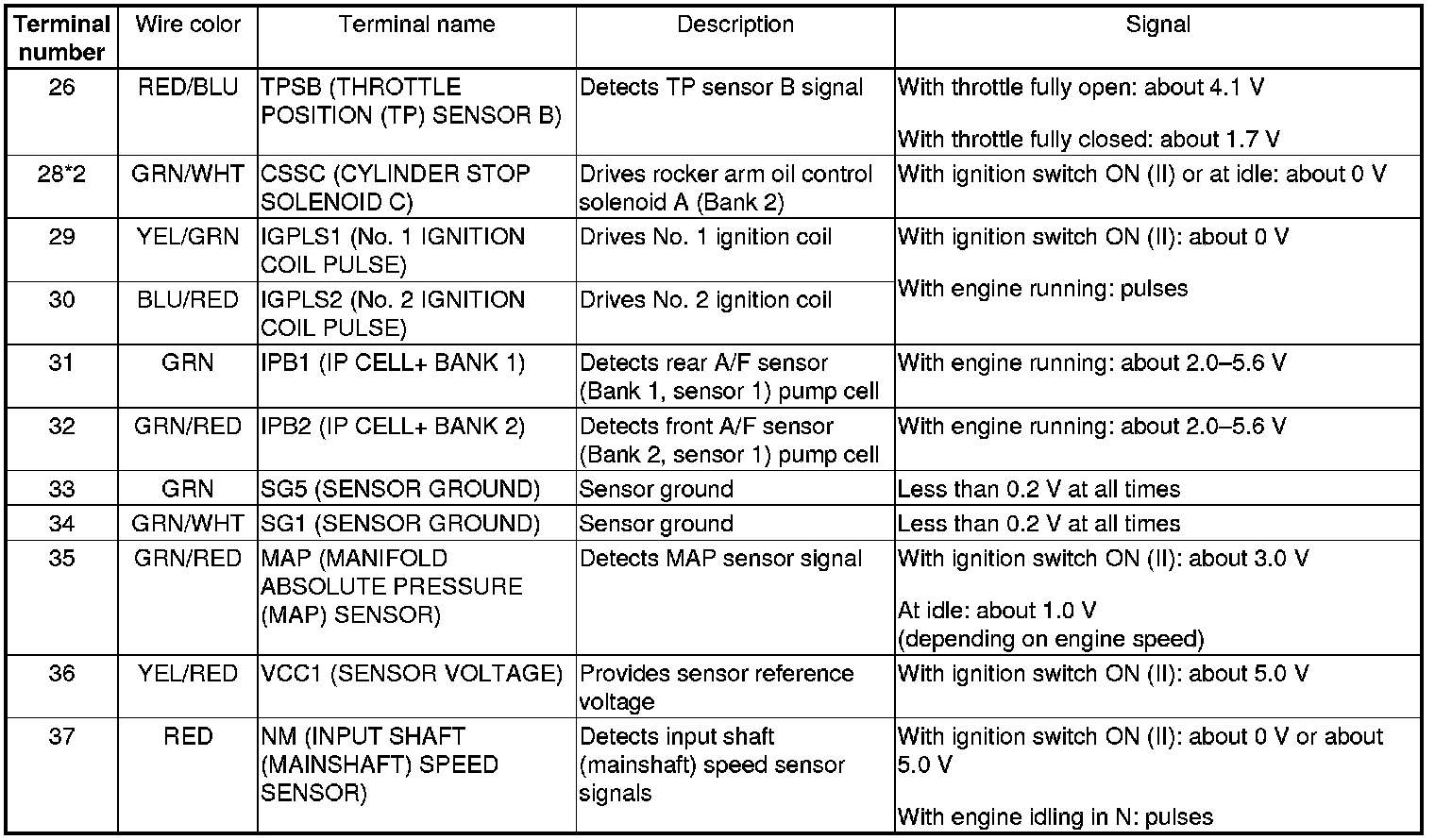

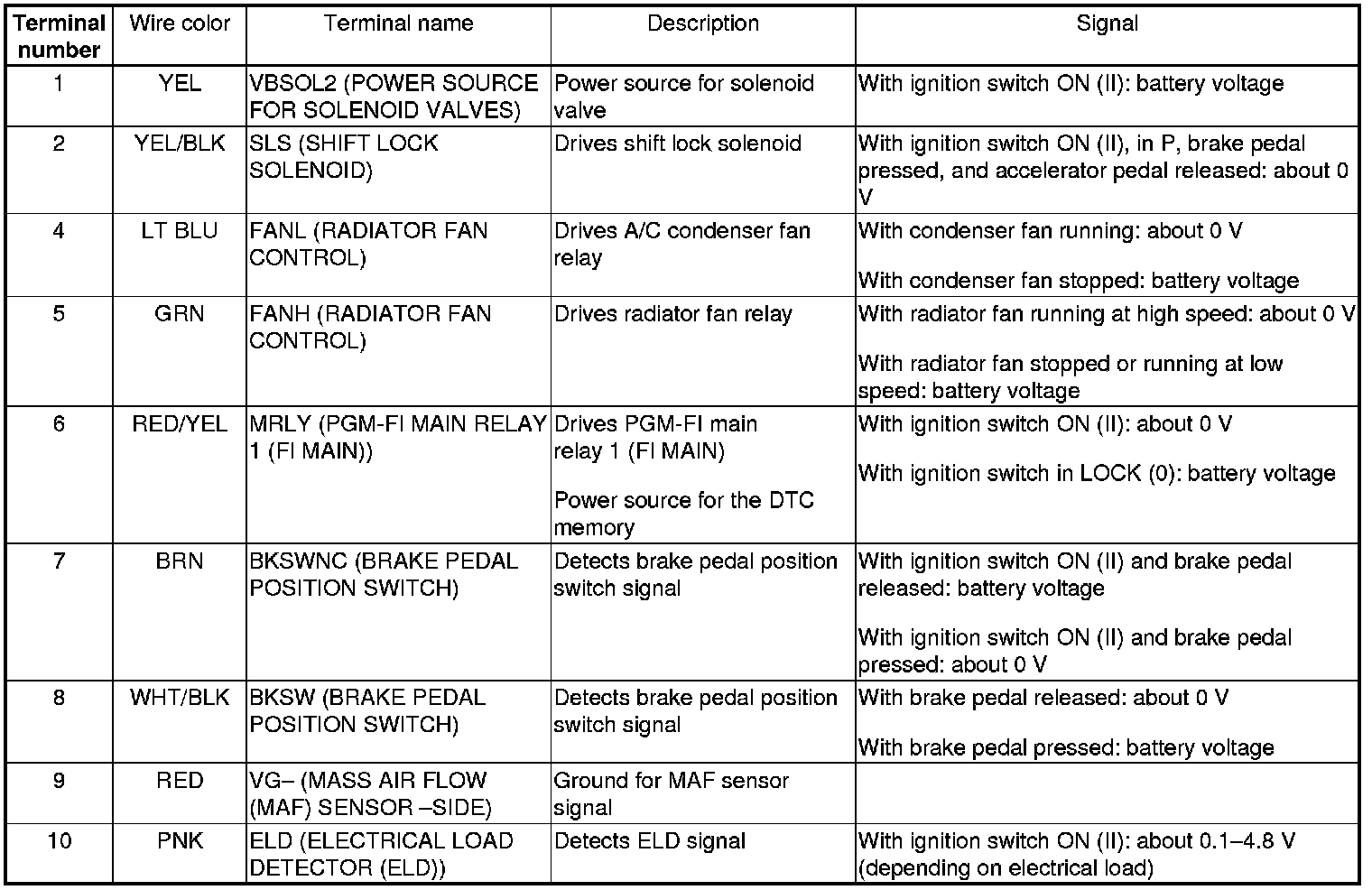

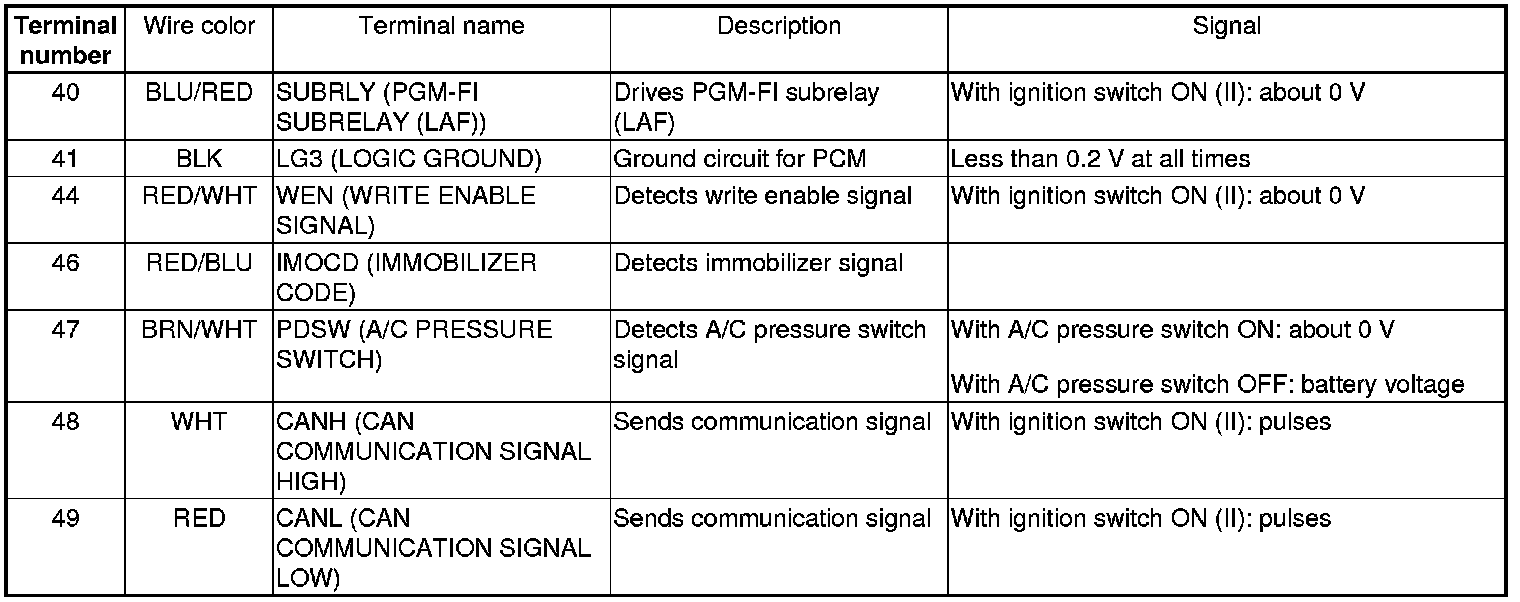

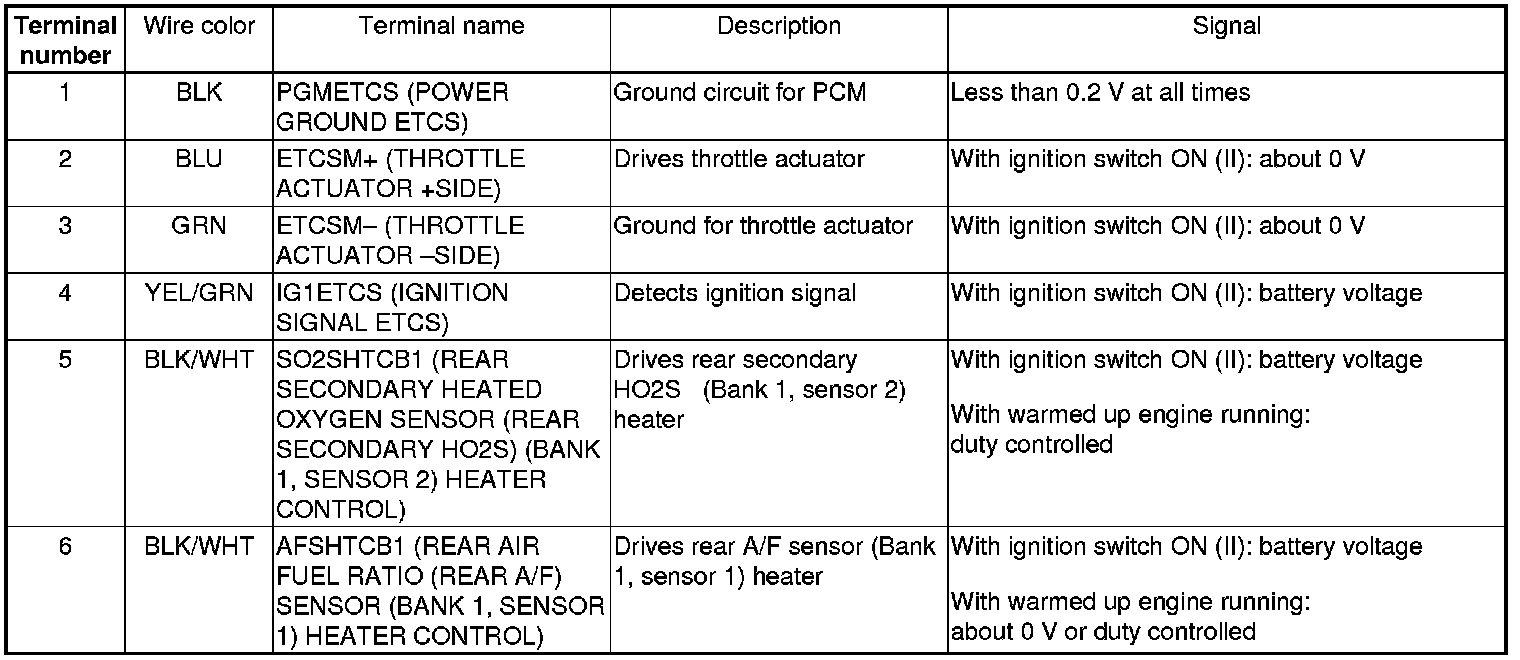

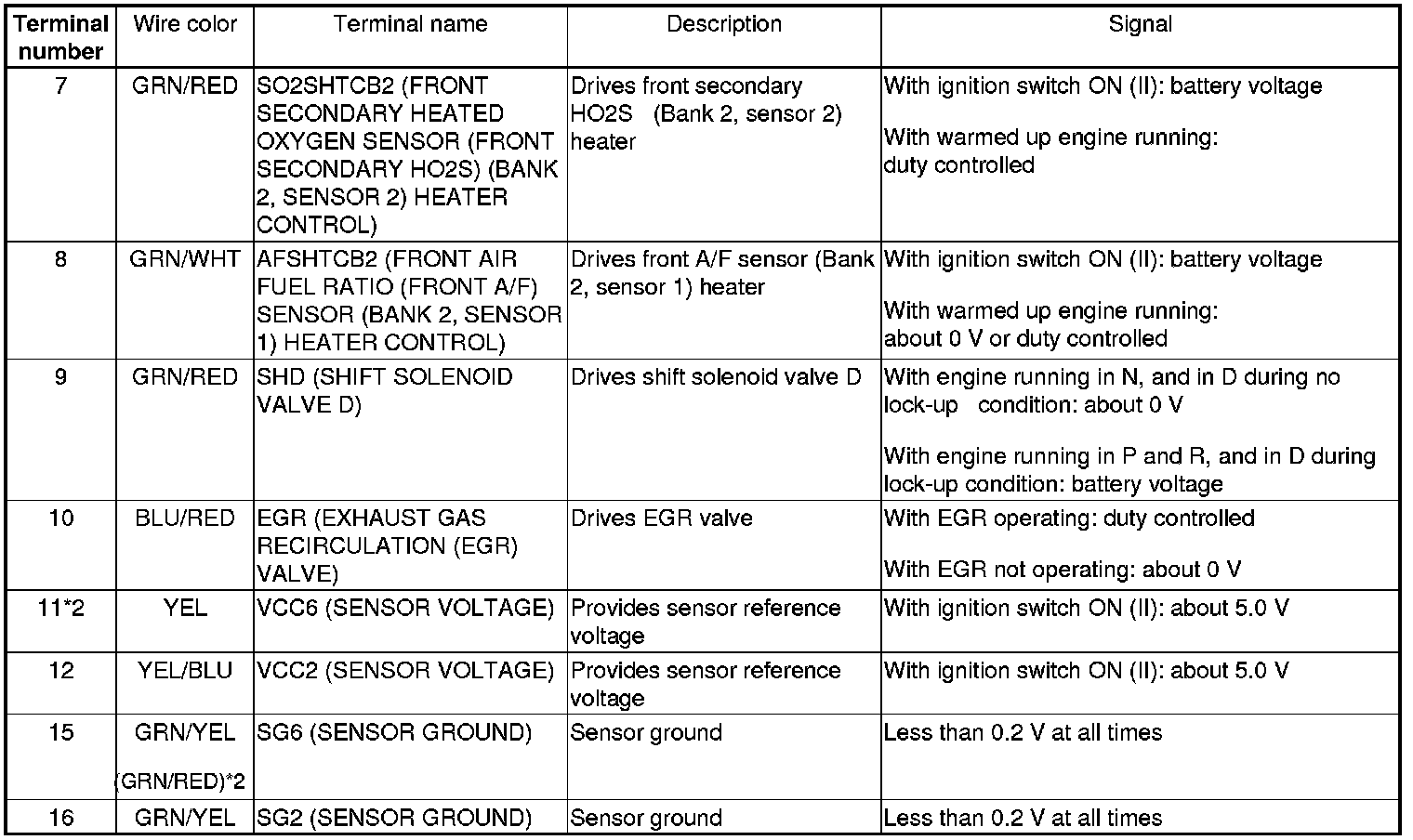

PCM Inputs and Outputs at PCM Connector A ((square)) (49P) ('08-10 models)











PCM Inputs and Outputs at PCM Connector A ((square)) (49P) ('08-10 models)

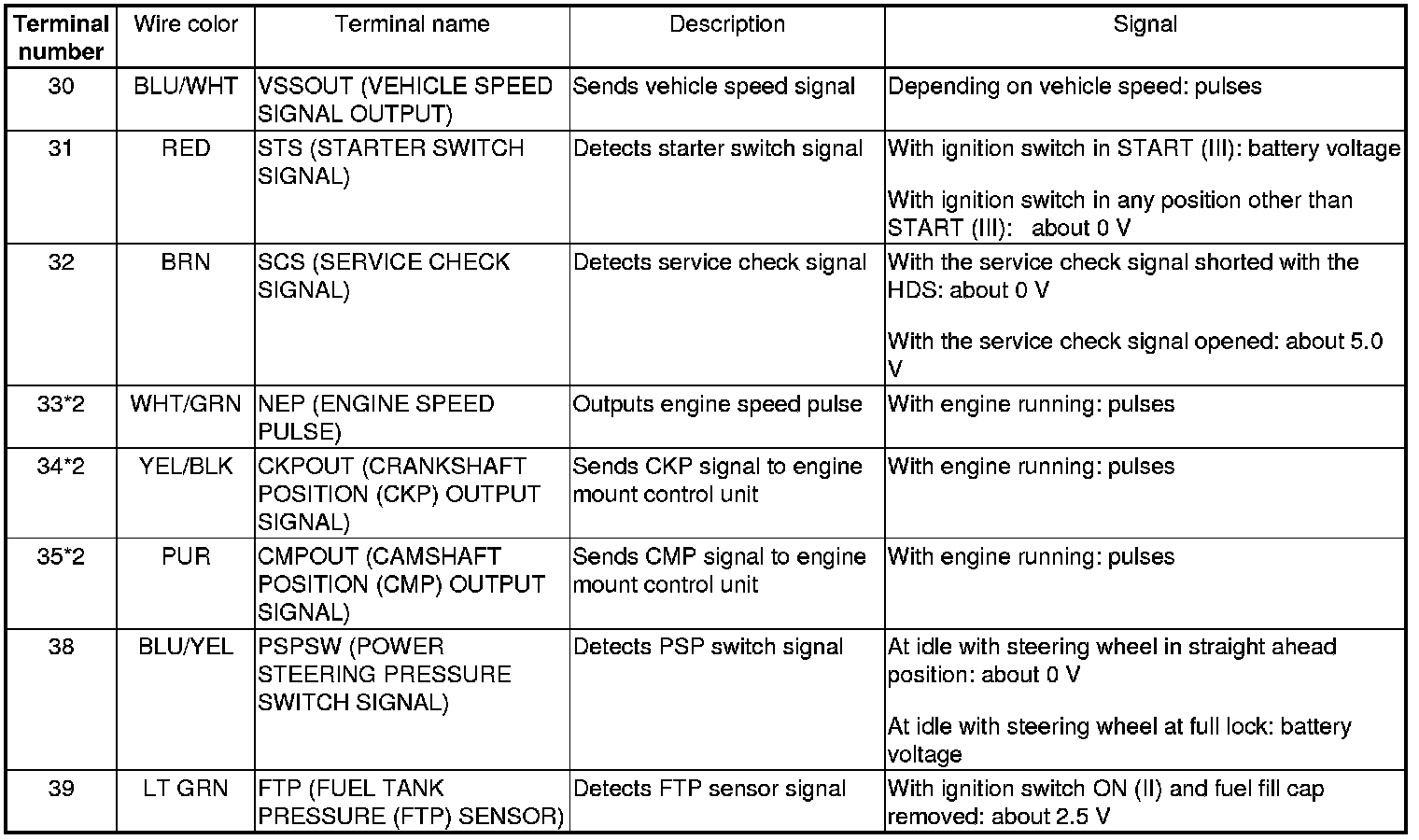

PCM Inputs and Outputs at PCM Connector A ((square)) (49P) ('08-10 models)











PCM Inputs and Outputs at PCM Connector A ((square)) (49P) ('08-10 models)

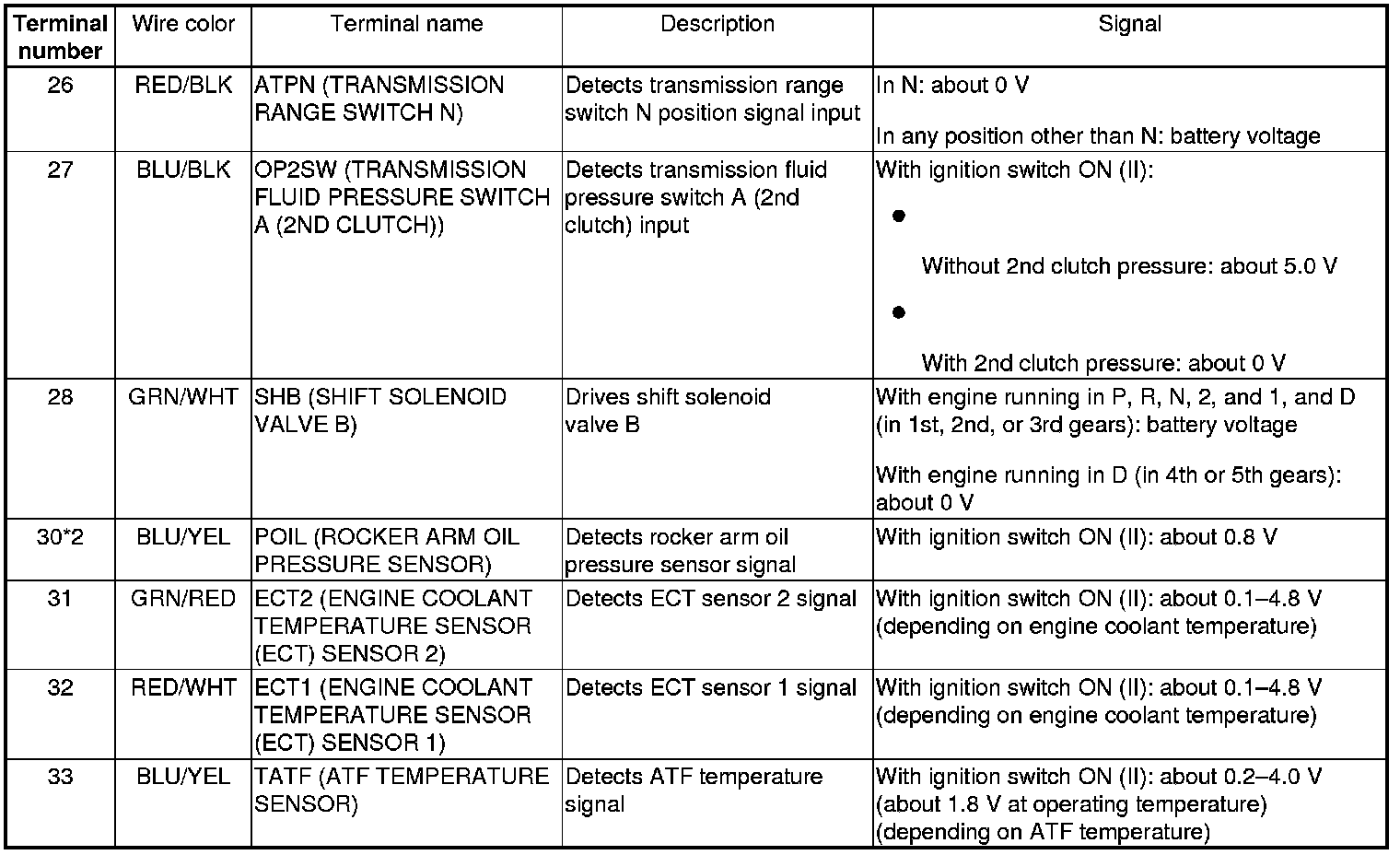

PCM Inputs and Outputs at PCM Connector A ((square)) (49P) ('08-10 models)

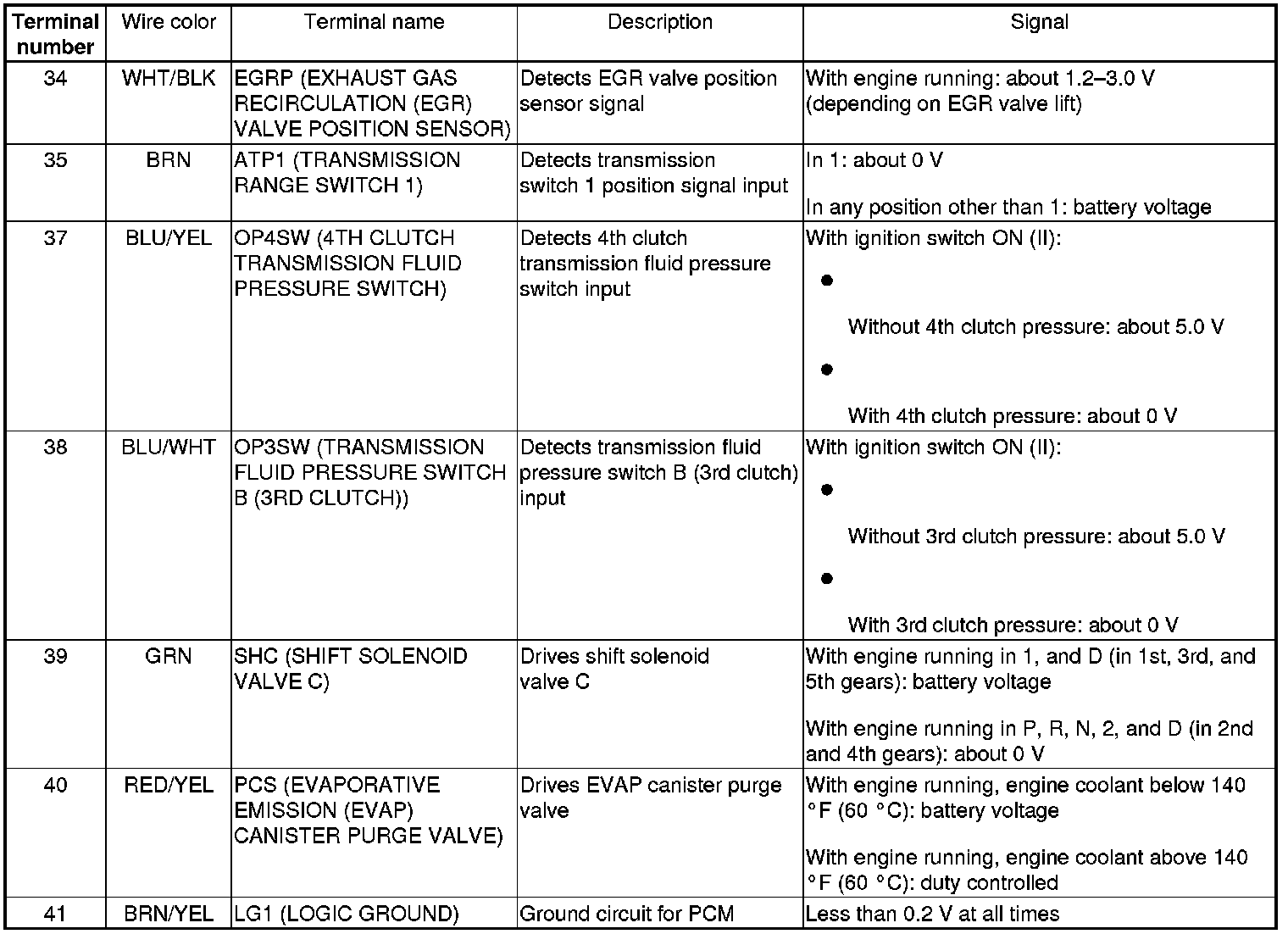

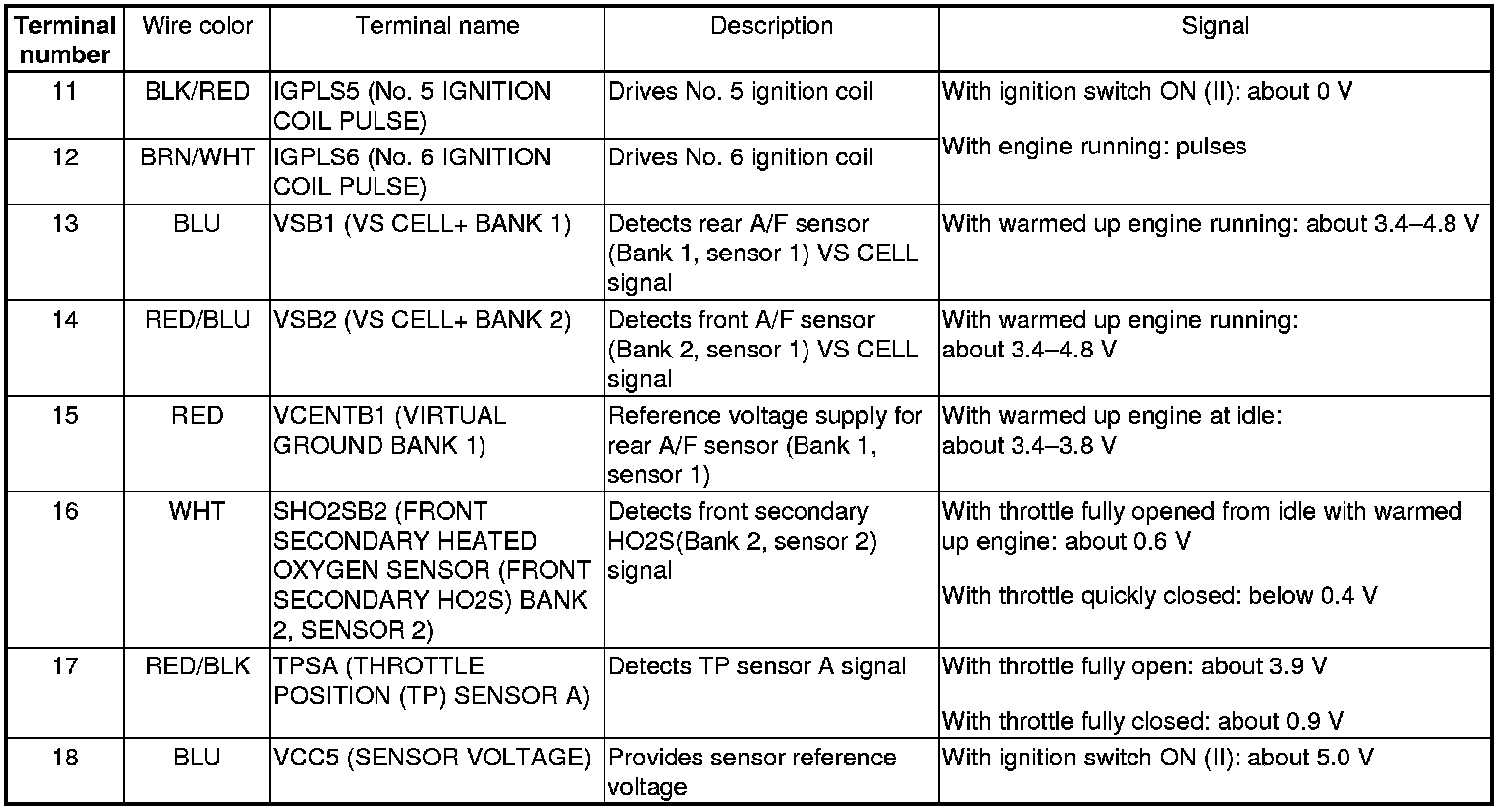

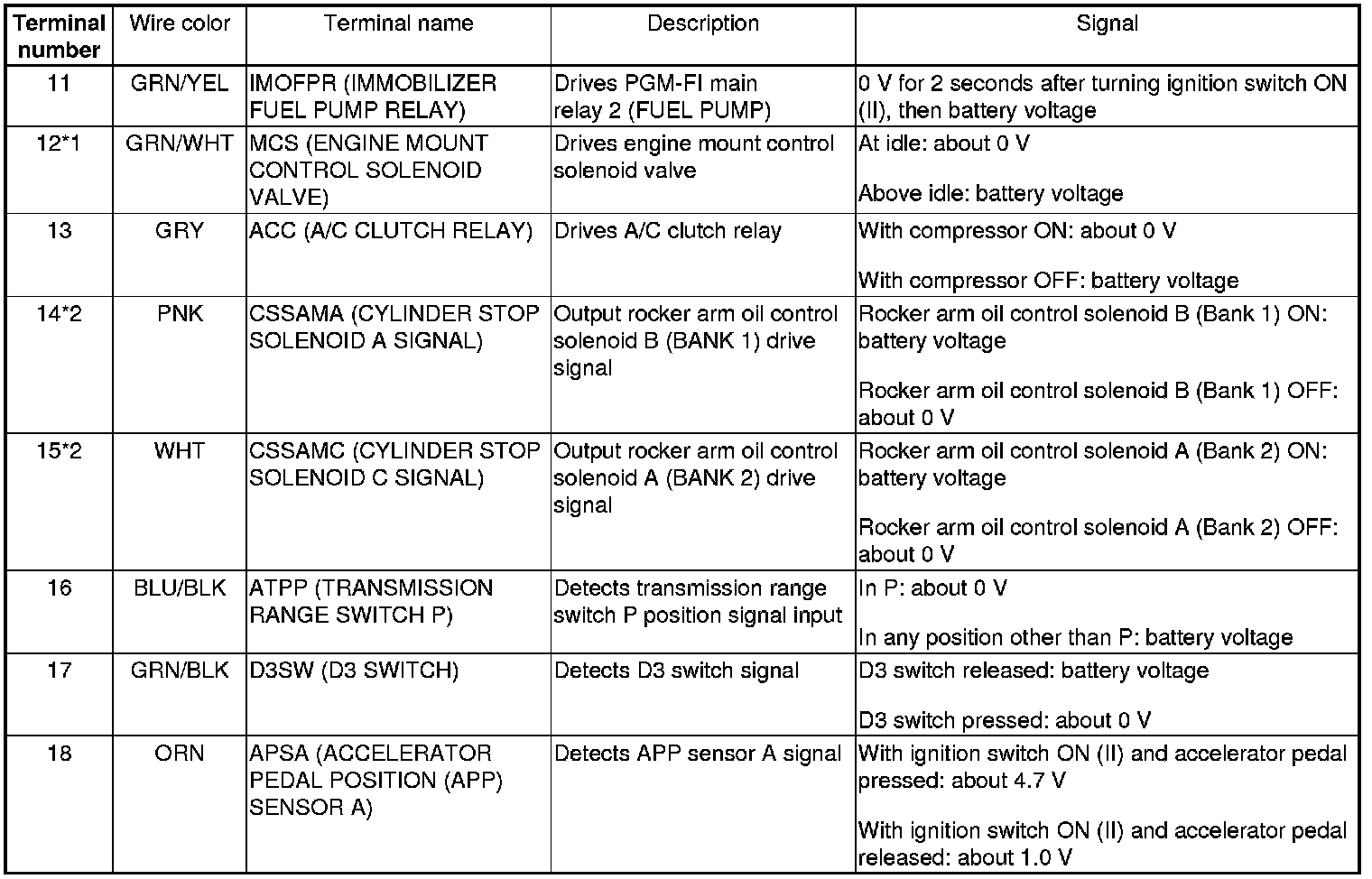

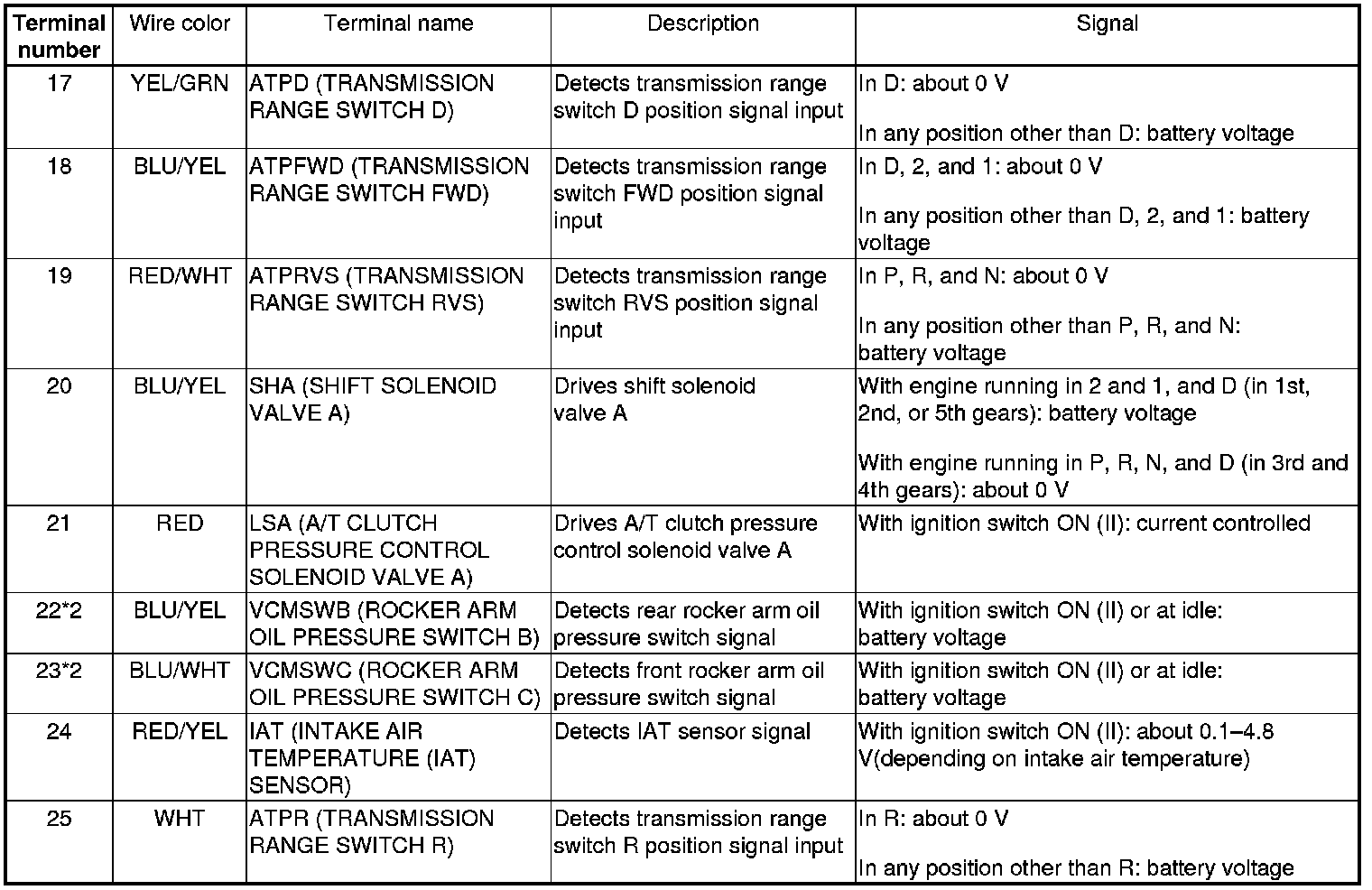

PCM Inputs and Outputs at PCM Connector B ((triangle)) (49P) ('08-10 models)











PCM Inputs and Outputs at PCM Connector B ((triangle)) (49P) ('08-10 models)

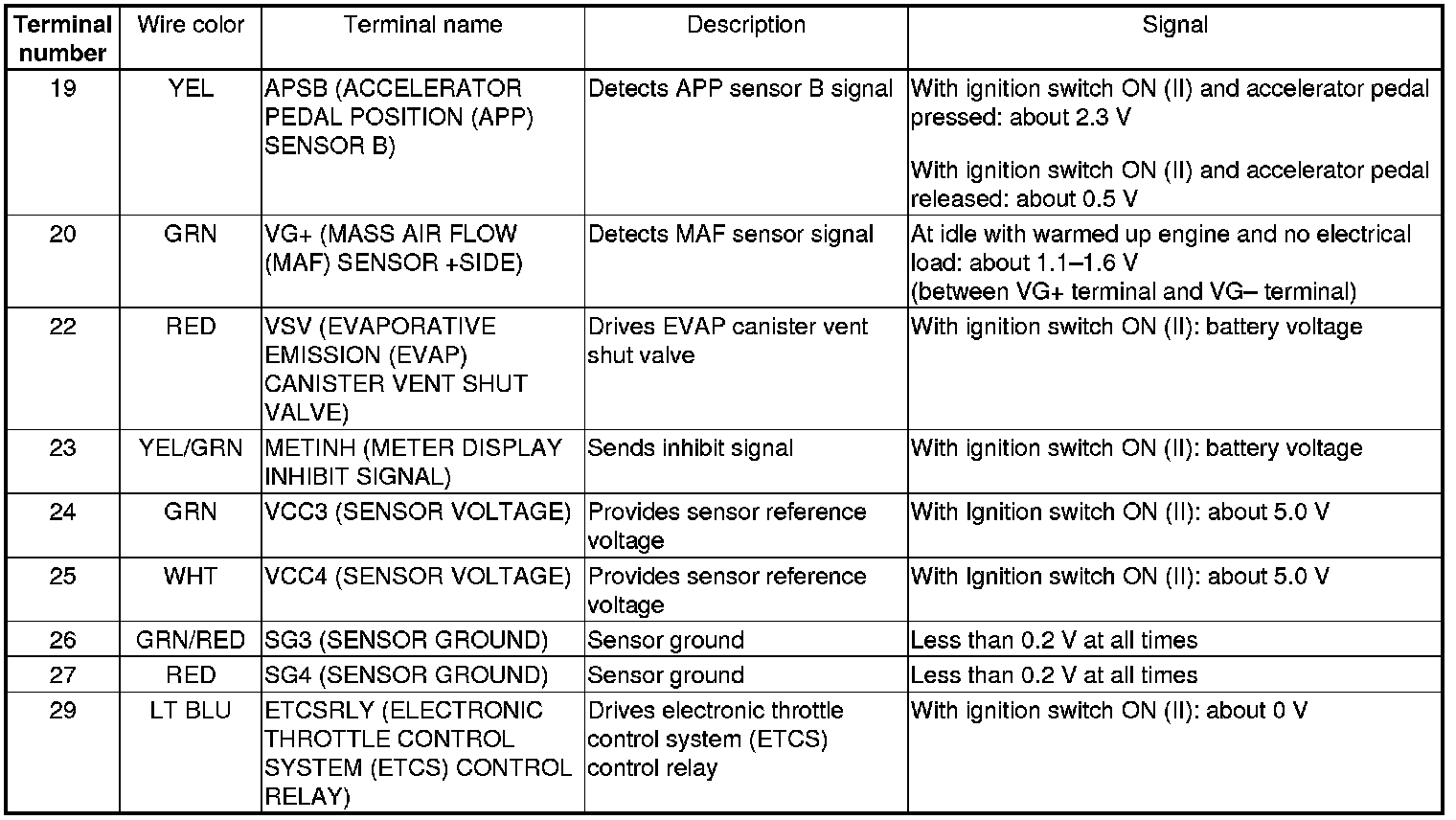

PCM Inputs and Outputs at PCM Connector B ((triangle)) (49P) ('08-10 models)















PCM Inputs and Outputs at PCM Connector B ((triangle)) (49P) ('08-10 models)















PCM Inputs and Outputs at PCM Connector B ((triangle)) (49P) ('08-10 models)

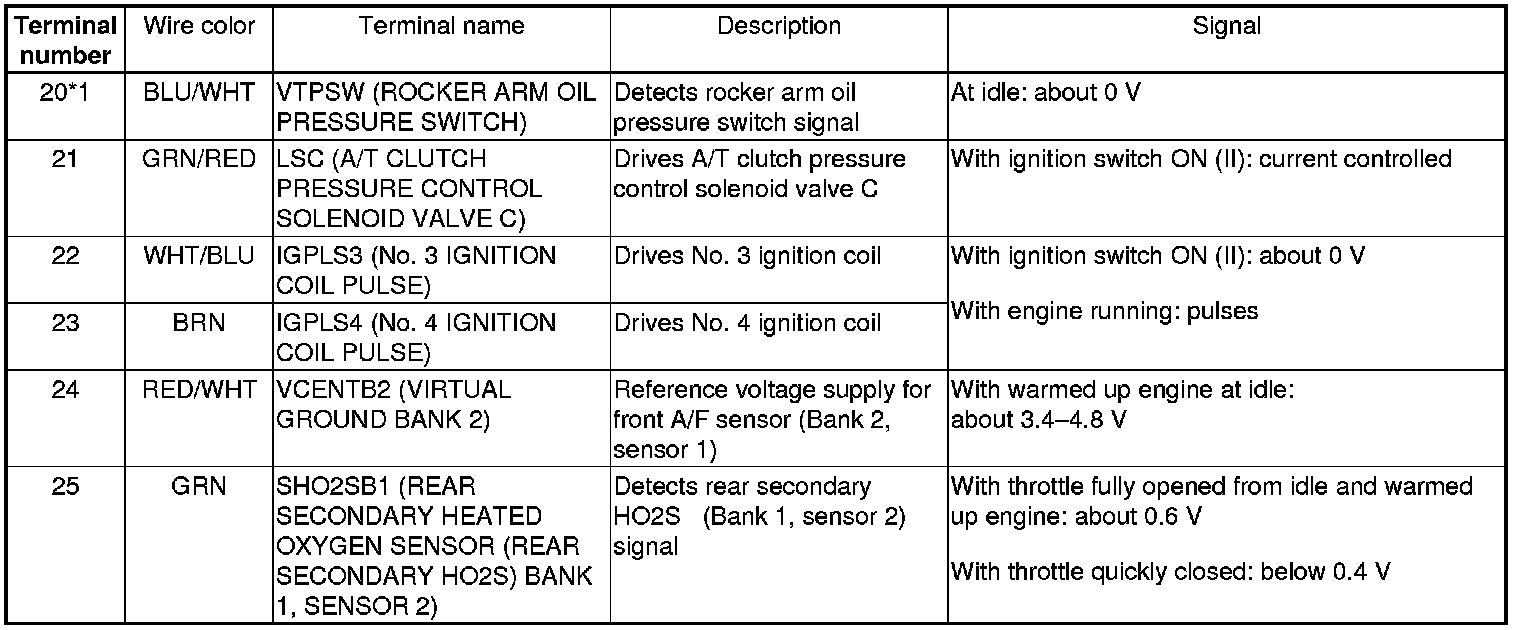

PCM Inputs and Outputs at PCM Connector C ((circle)) (49P) ('08-10 models)











PCM Inputs and Outputs at PCM Connector C ((circle)) (49P) ('08-10 models)















PCM Inputs and Outputs at PCM Connector C ((circle)) (49P) ('08-10 models)

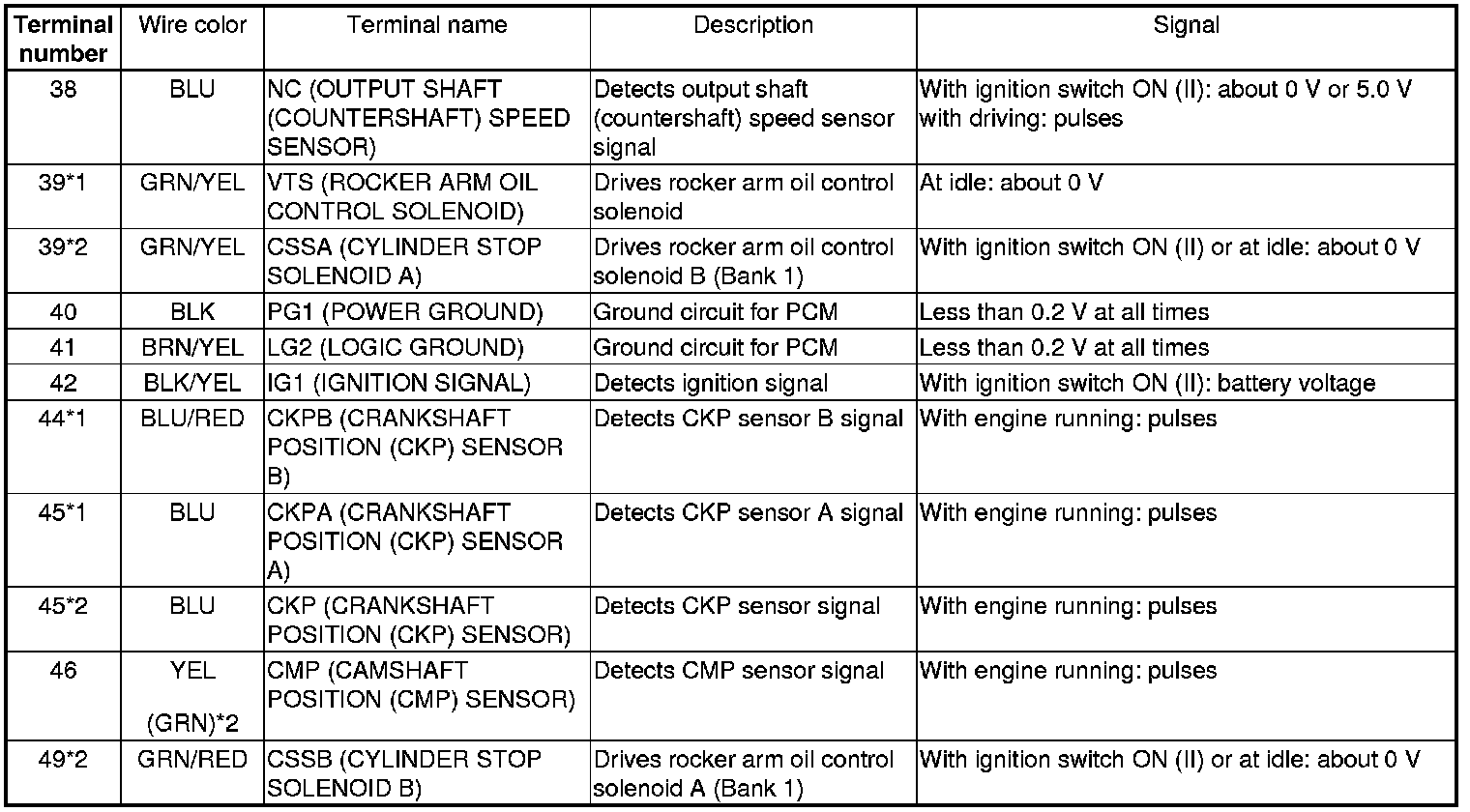

PCM Inputs and Outputs at PCM Connector C ((circle)) (49P) ('08-10 models)

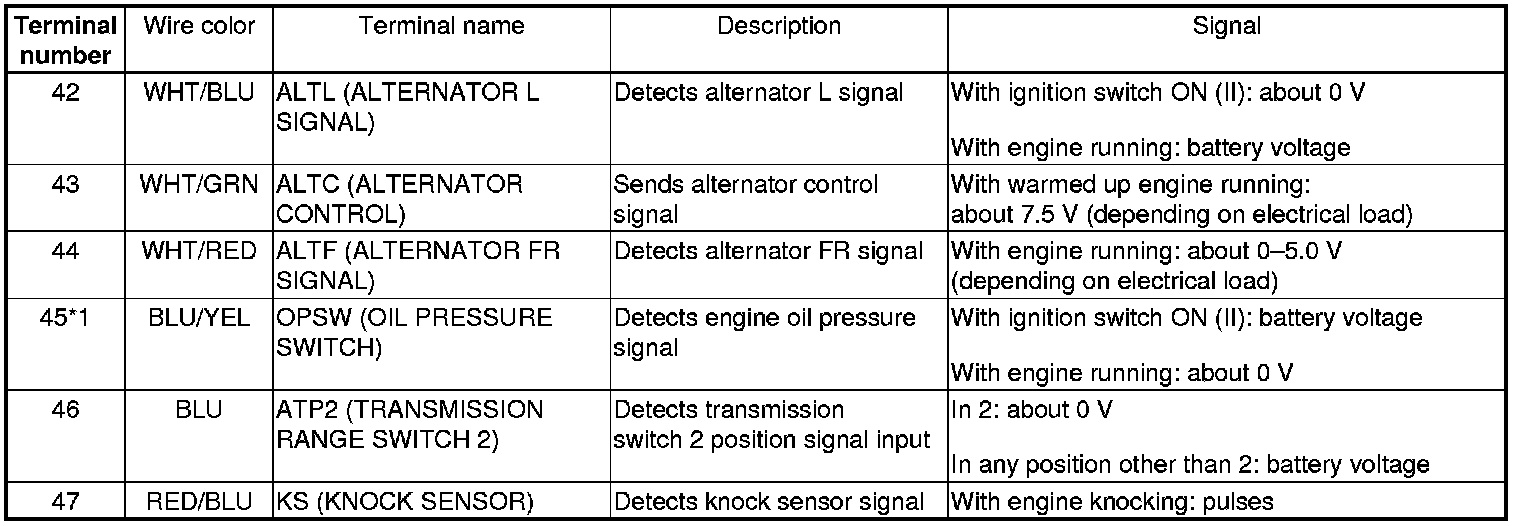

PCM Inputs and Outputs at PCM Connector C ((circle)) (49P) ('08-10 models)











PCM Inputs and Outputs at PCM Connector C ((circle)) (49P) ('08-10 models)
