Passengers Power Window Switch Test

Passenger's Power Window Switch Test

1. Remove the grip cover:
- Front passenger's Service and Repair

- Rear Service and Repair

2. Disconnect the 5P connector (A) from the passenger's window switch.

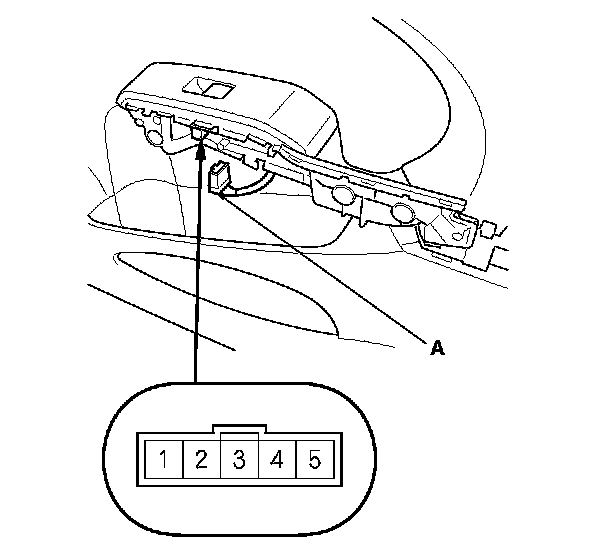

Front passenger's

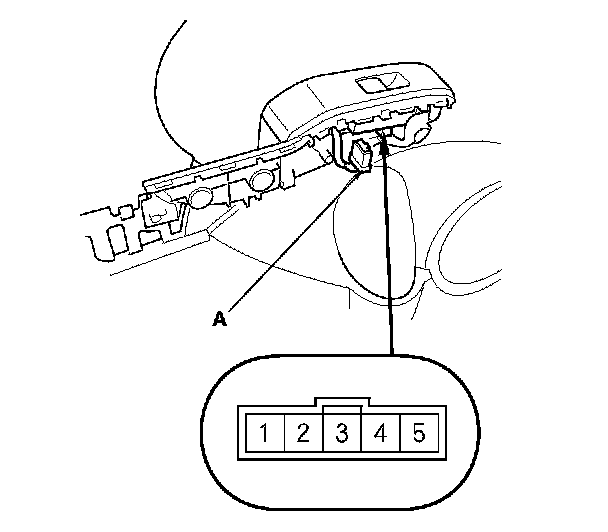

Rear

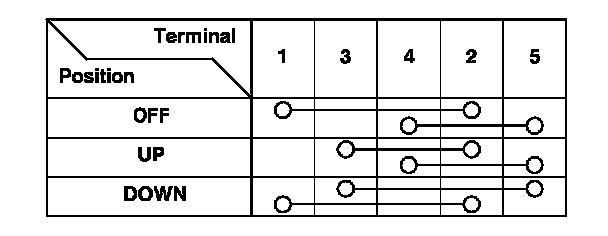

3. Check for continuity between the terminals in each switch position according to the table.

4. If the continuity is not as specified, replace switch. Passengers Power Window Switch Replacement
