Home >> Honda >> 2009 >> Element 2WD L4-2.4L >> Repair and Diagnosis >> Power and Ground Distribution >> Fuse >> Locations >> Under-dash Fuse/Relay Box - Fuse-to-Components Index

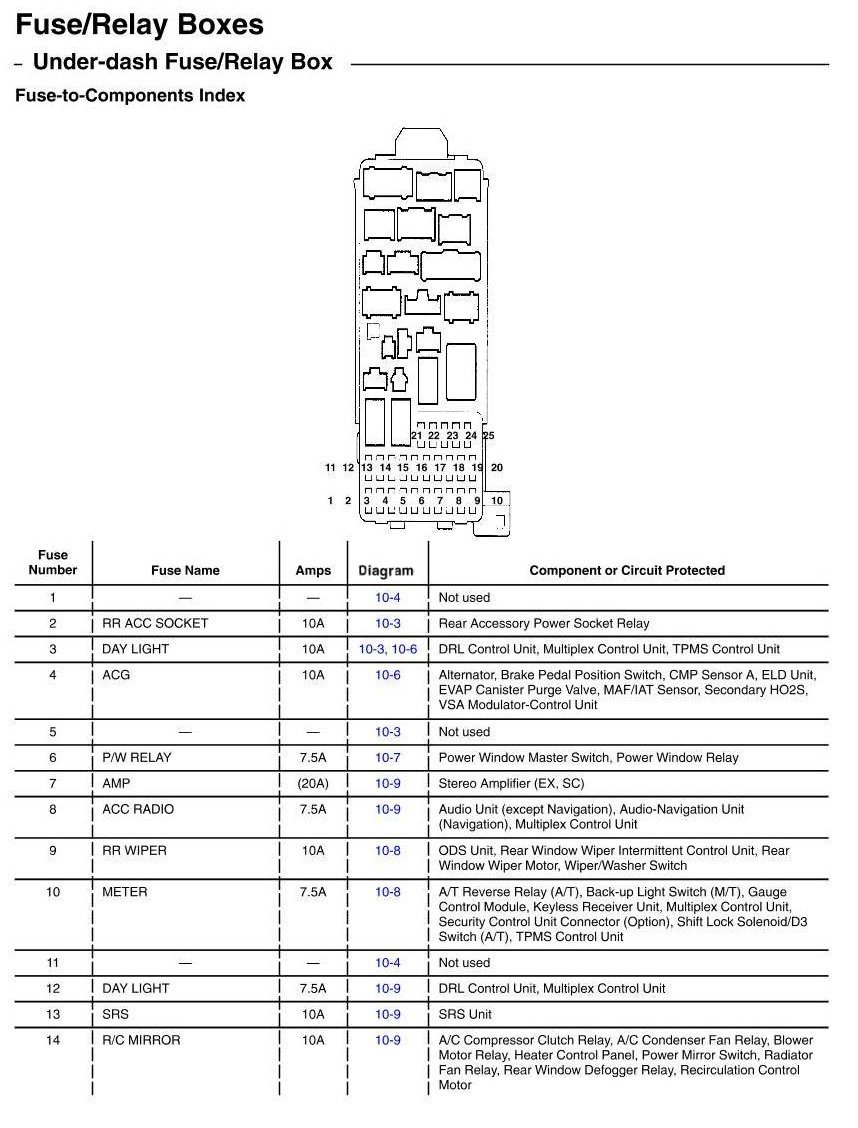

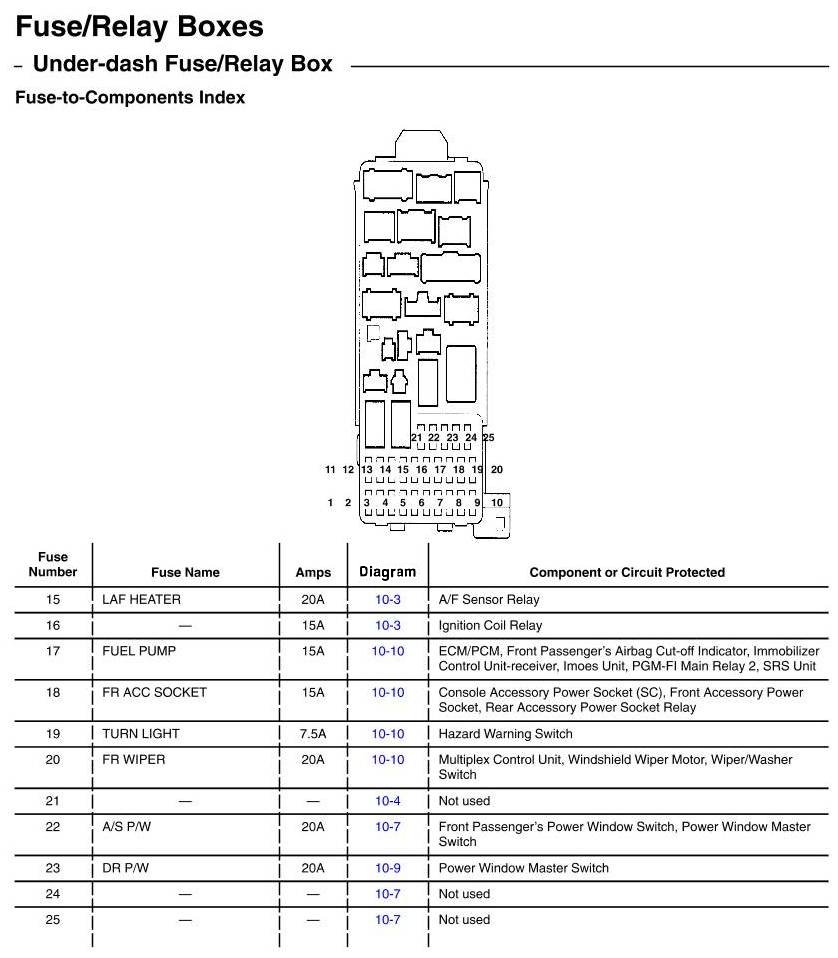

Under-dash Fuse/Relay Box - Fuse-to-Components Index
