Home
>>
Honda
>>
2009
>>
Element 2WD L4-2.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Window Switch
>>

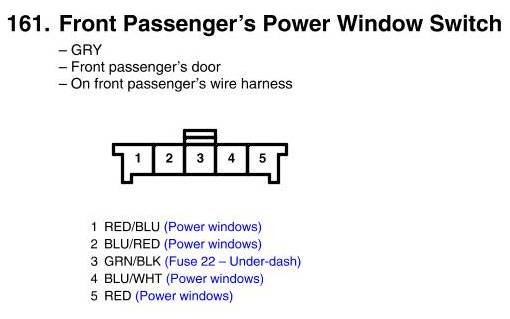

Front Passenger's Power Window Switch Connector View
Front Passenger's Power Window Switch Connector View
