Power Window Motor
>>

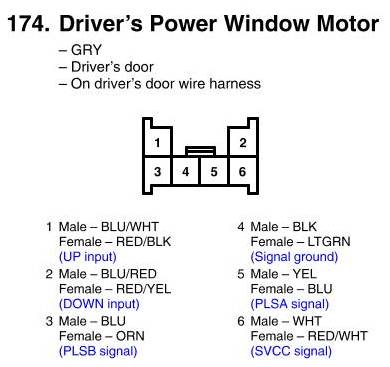

Driver's Power Window Motor Connector View
Driver's Power Window Motor Connector View
