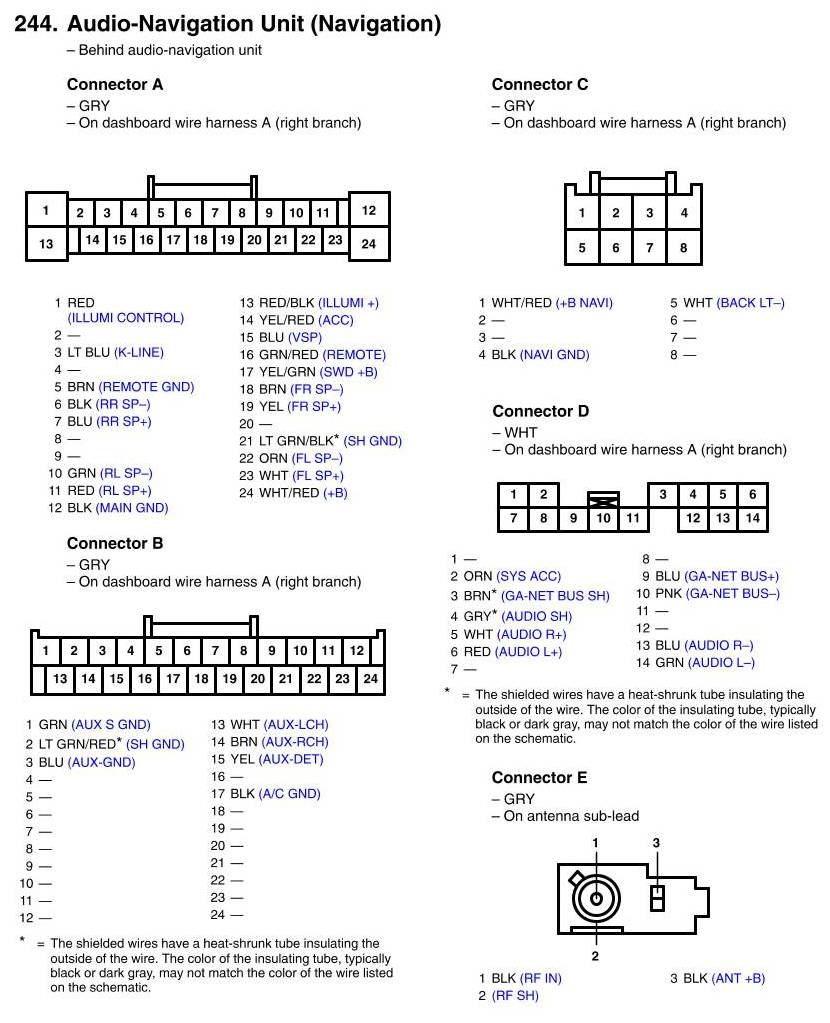

View 244 - Audio-Navigation Unit Connector View (Navigation)
View 244 - Audio-Navigation Unit Connector View (Navigation)
