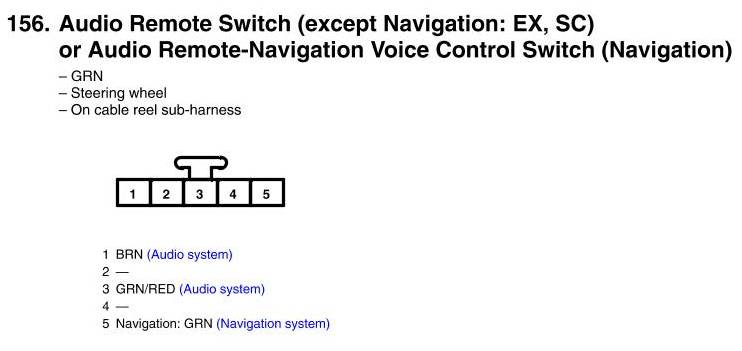

View 156 - Audio Remote Switch or Audio Remote-Navigation Voice Control Switch Connector View
View 156 - Audio Remote Switch or Audio Remote-Navigation Voice Control Switch Connector View
View 156 - Audio
Remote Switch
(except Navigation: EX, SC) or Audio Remote-Navigation Voice Control
Switch
(Navigation) Connector View
