Automatic Transmission/Transaxle
>>
Automatic Transmission
Automatic Transmission
Automatic Transmission

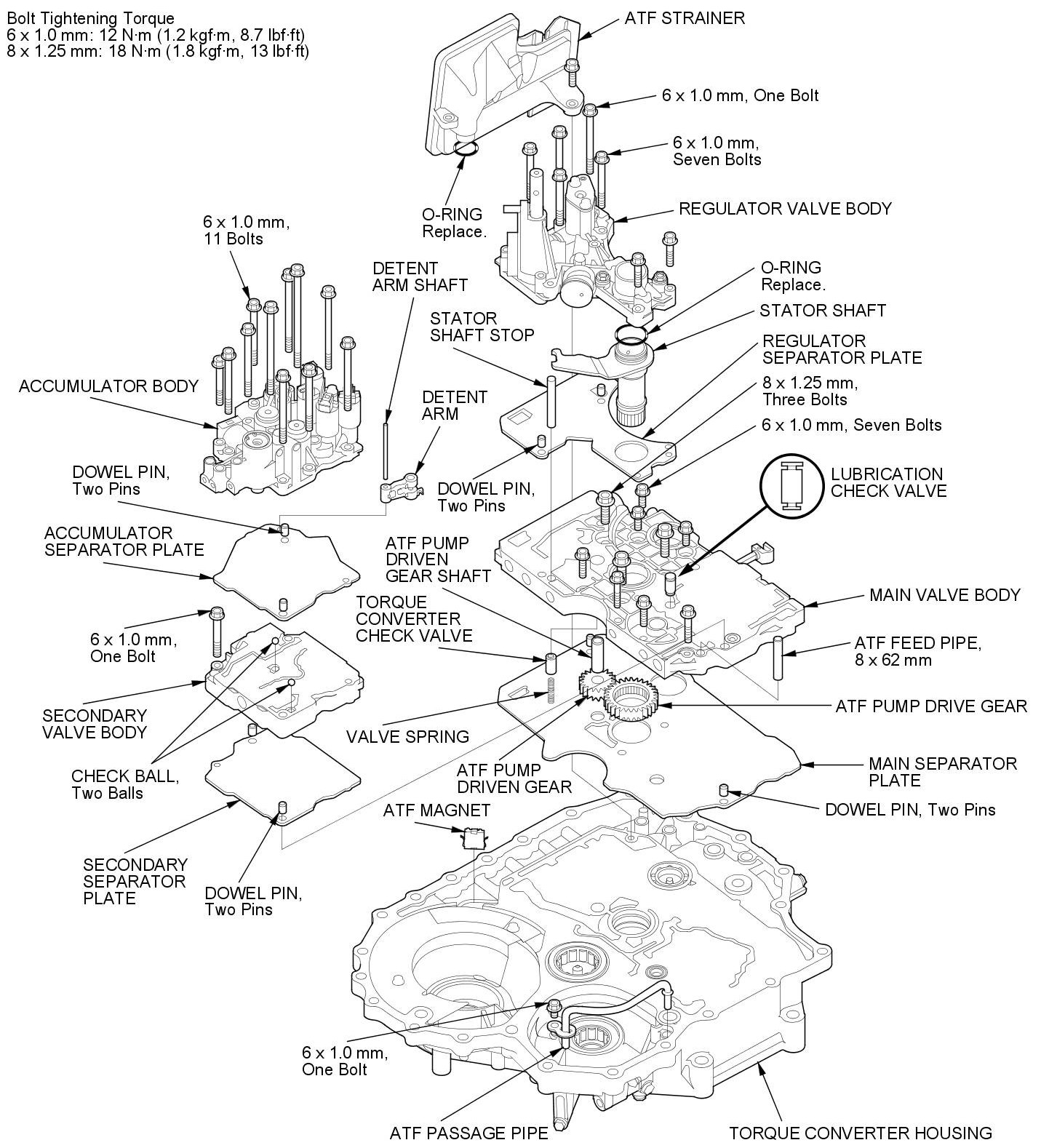

Exploded View
