Air Conditioning Switch: Service and Repair

Climate Control Switch Removal/Installation

With Navigation

1. Remove the audio unit. Audio Unit Removal/Installation (With Navigation)

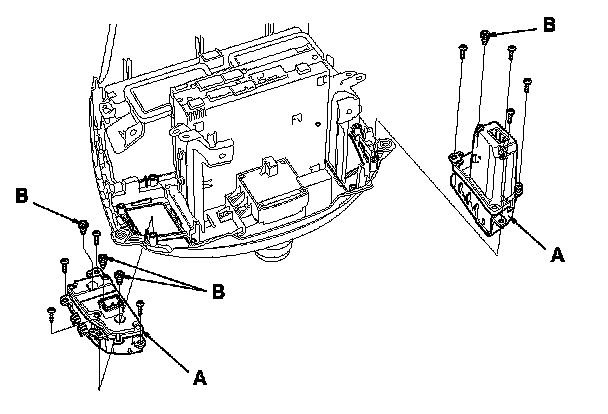

2. Remove the self-tapping screws and the climate control switches (A). If necessary, replace the bulbs (B).

3. Install the switches in the reverse order of removal.

4. Run the self-diagnostic function to confirm that there are no problems in the system. How to Troubleshoot the Climate Control System
