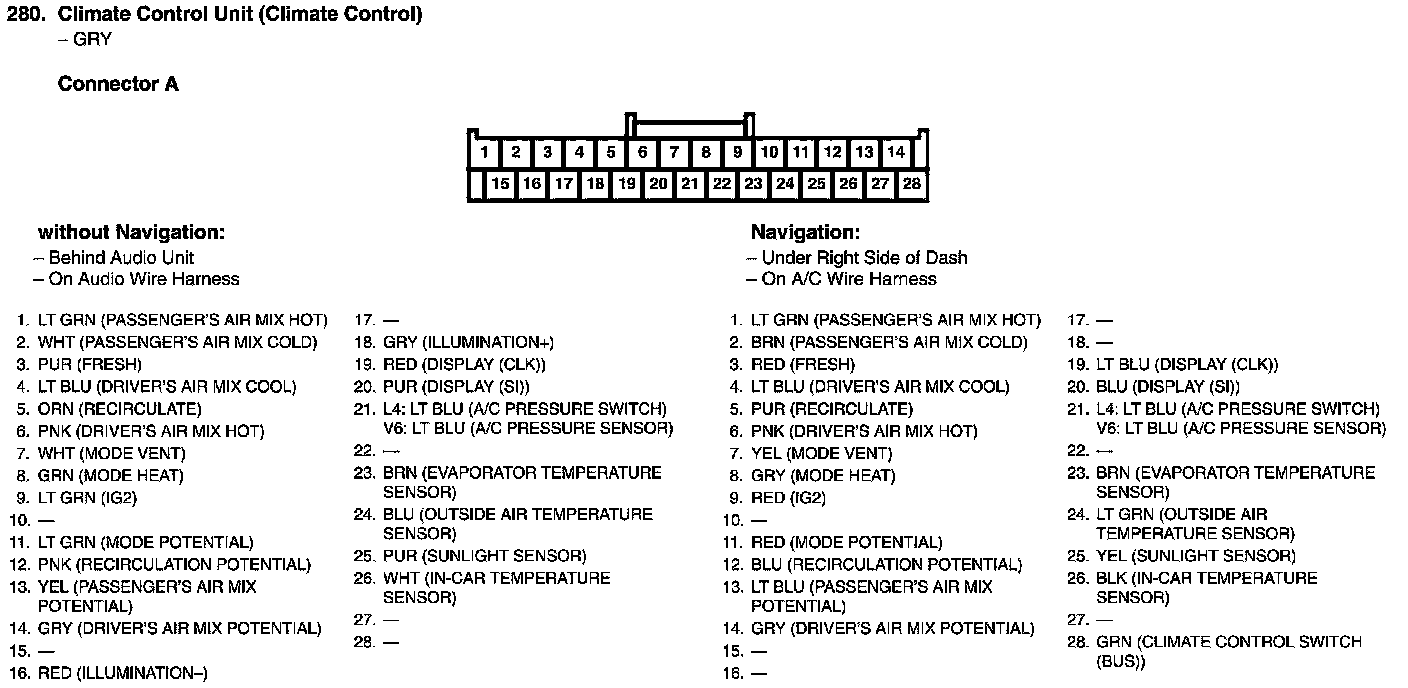

Climate Control Unit Connector View (Climate Control)
Climate Control Unit Connector View (Climate Control)
