Home >> Honda >> 2009 >> Accord L4-2.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> View 281 Driver's Junction Box 1 Connector View

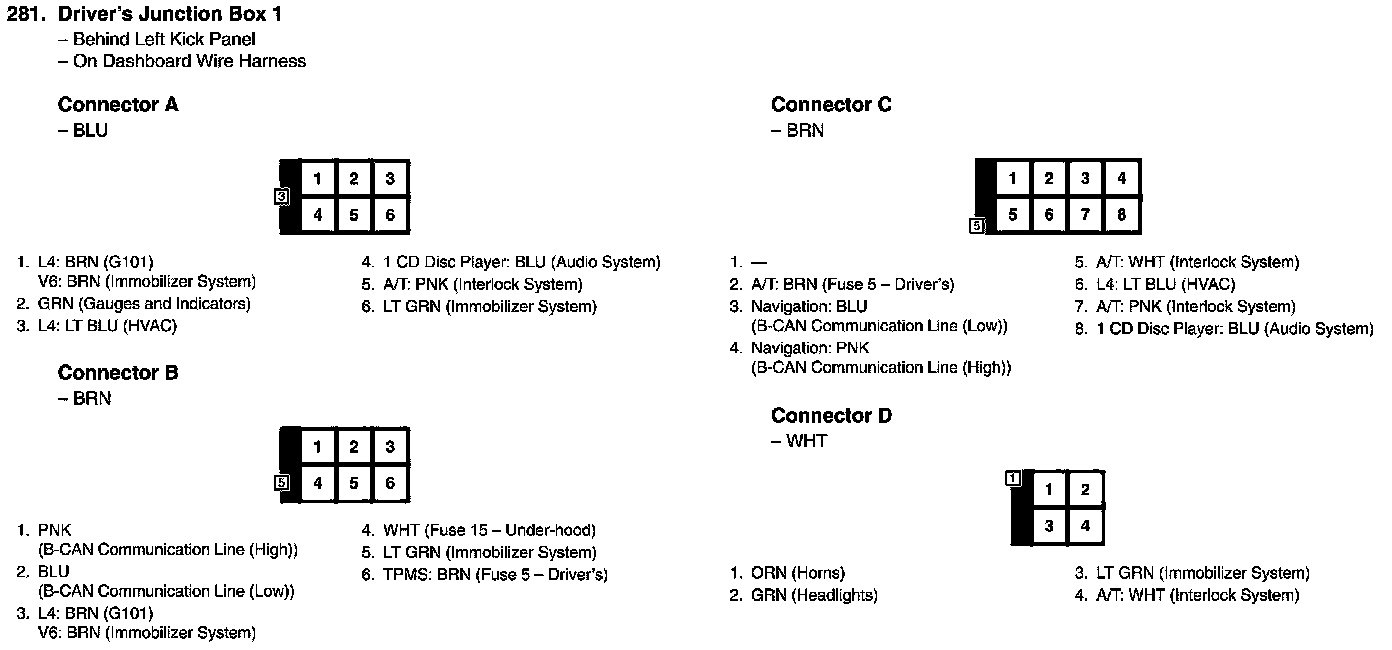

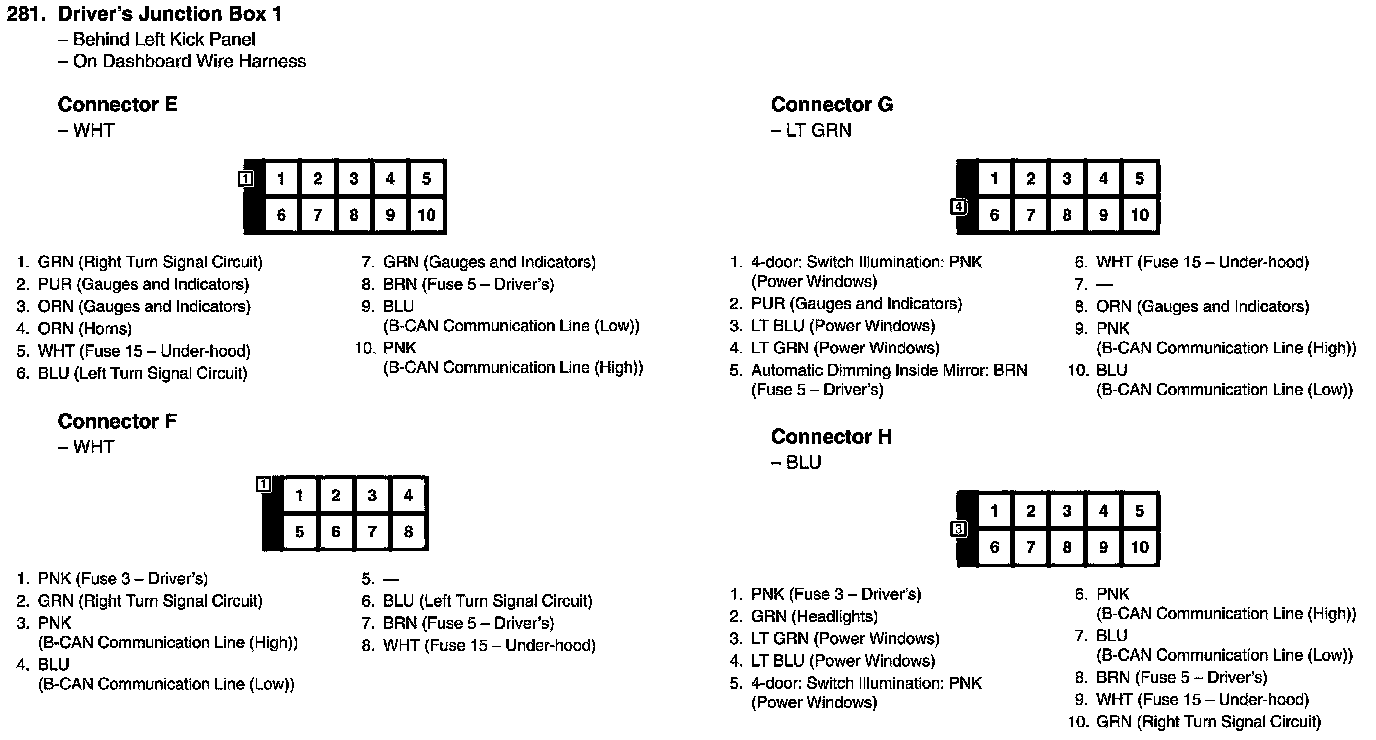

View 281 Driver's Junction Box 1 Connector View
