Home >> Honda >> 2008 >> S2000 L4-2.2L >> Repair and Diagnosis >> Steering and Suspension >> Steering >> Power Steering >> Steering Control Module >> Locations

Steering Control Module: Locations

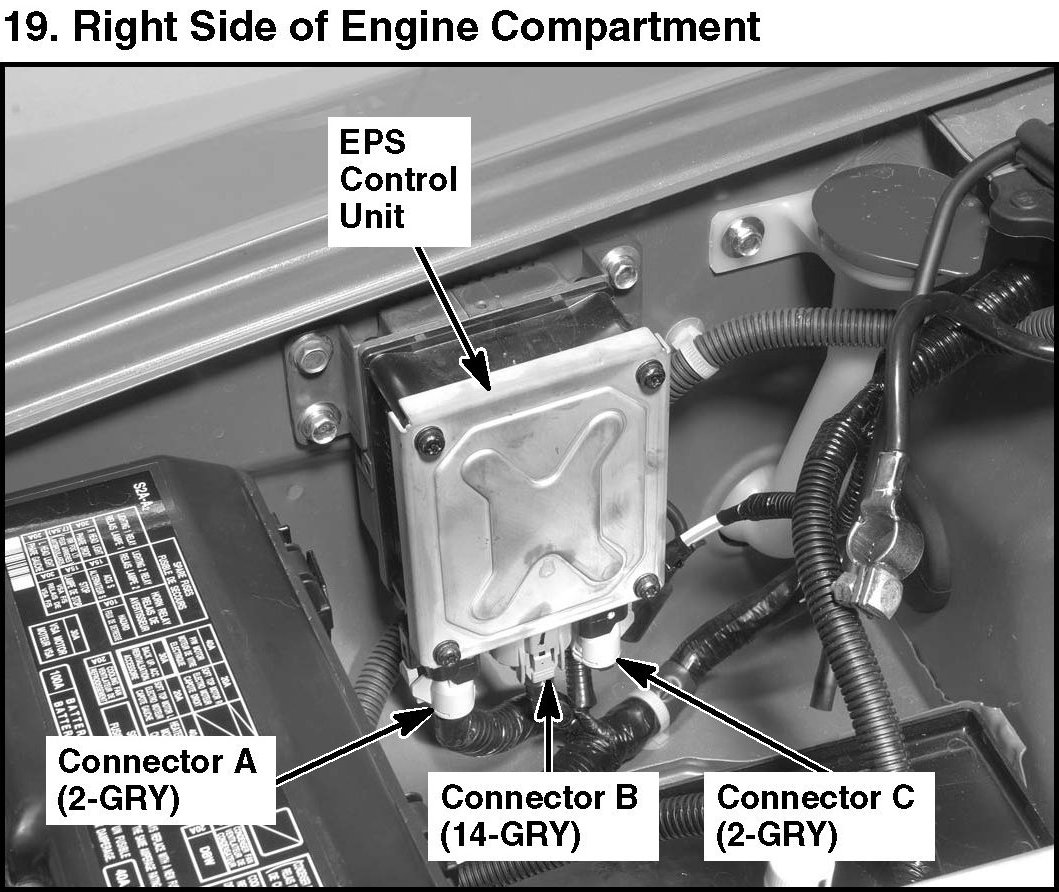

19. Right Side Of Engine Compartment:

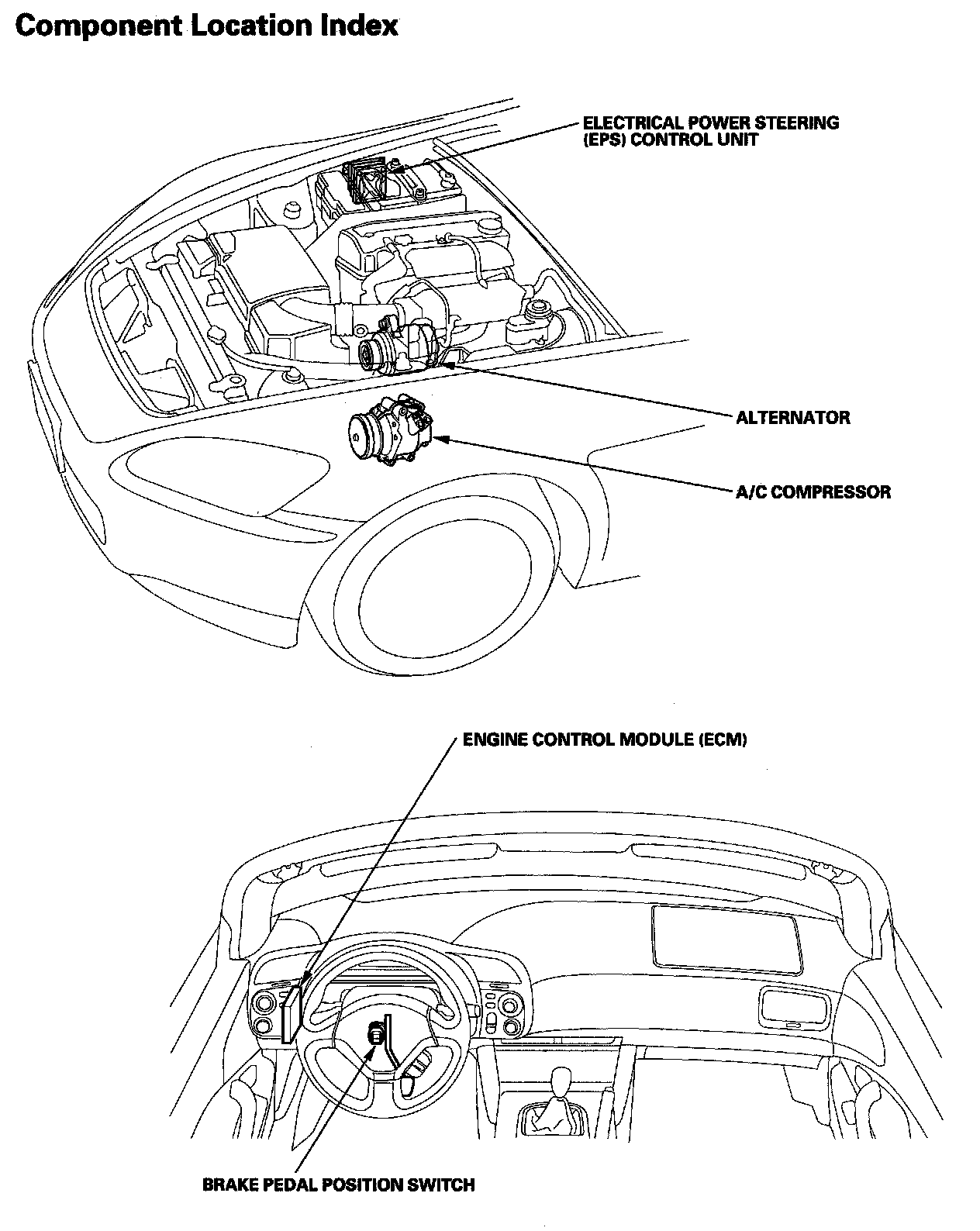

Idle Control System Component Location Index:

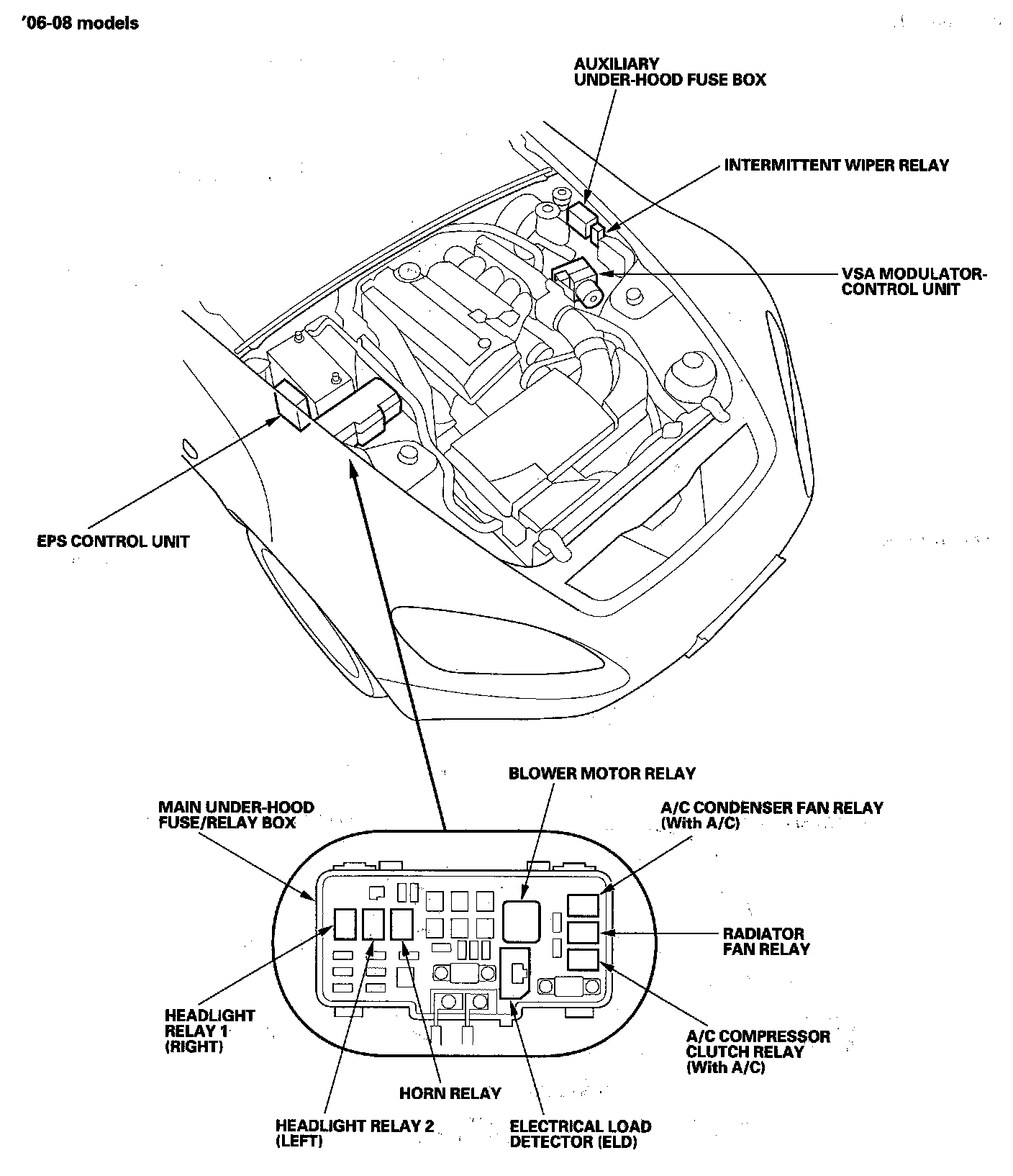

Relay And Control Unit Locations Engine Compartment:
