Air Bag Control Module: Locations

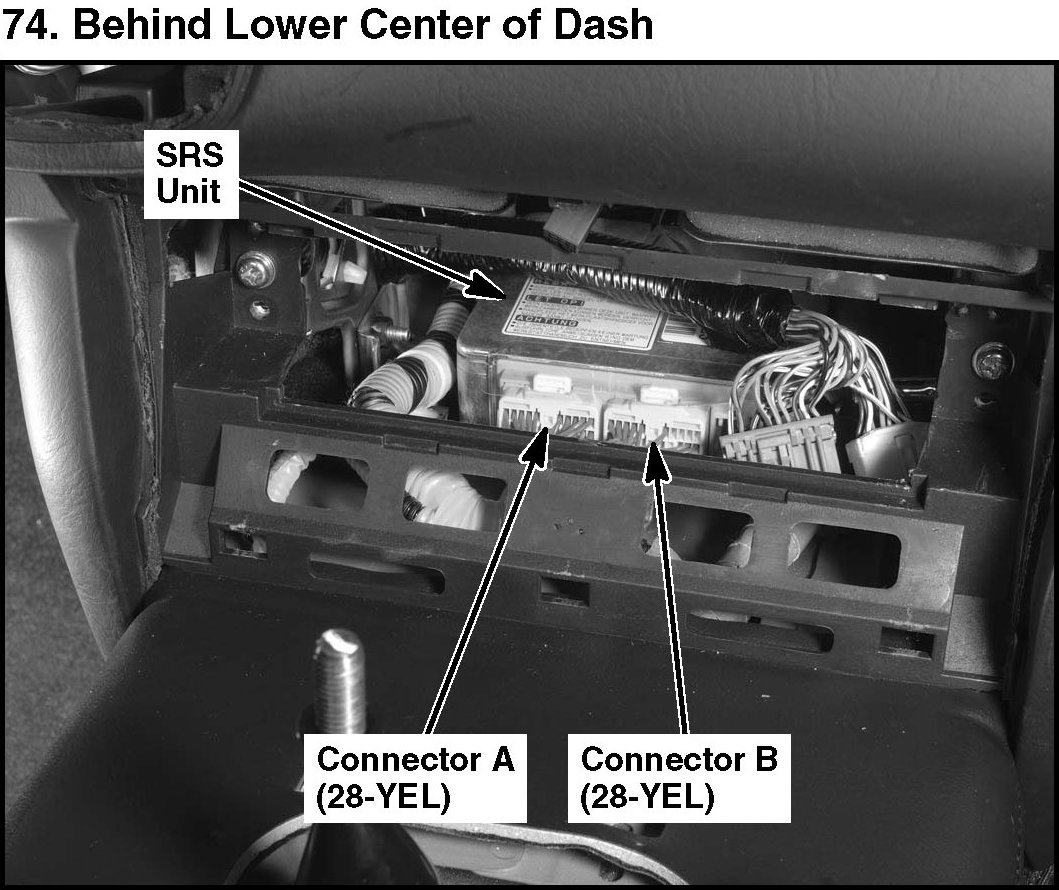

74. Behind Lower Center Of Dash:

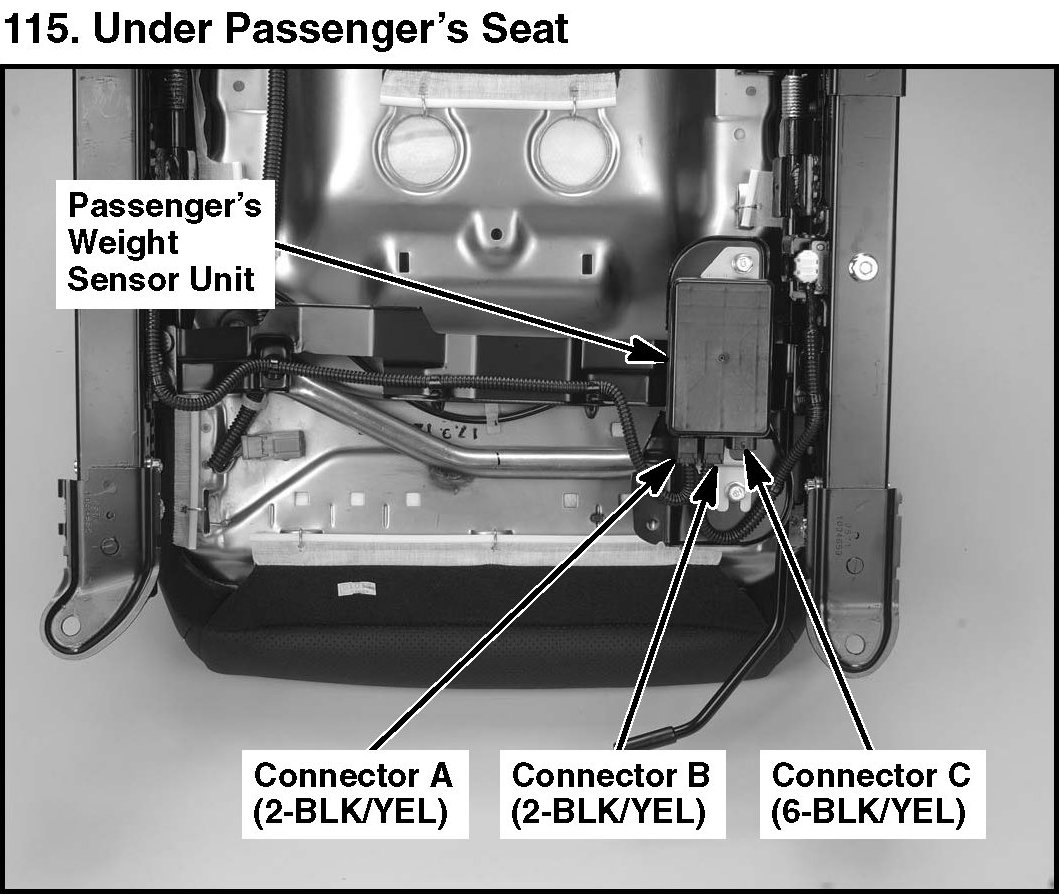

115. Under Passenger's Seat:

Relay And Control Unit Locations Dashboard And Door:

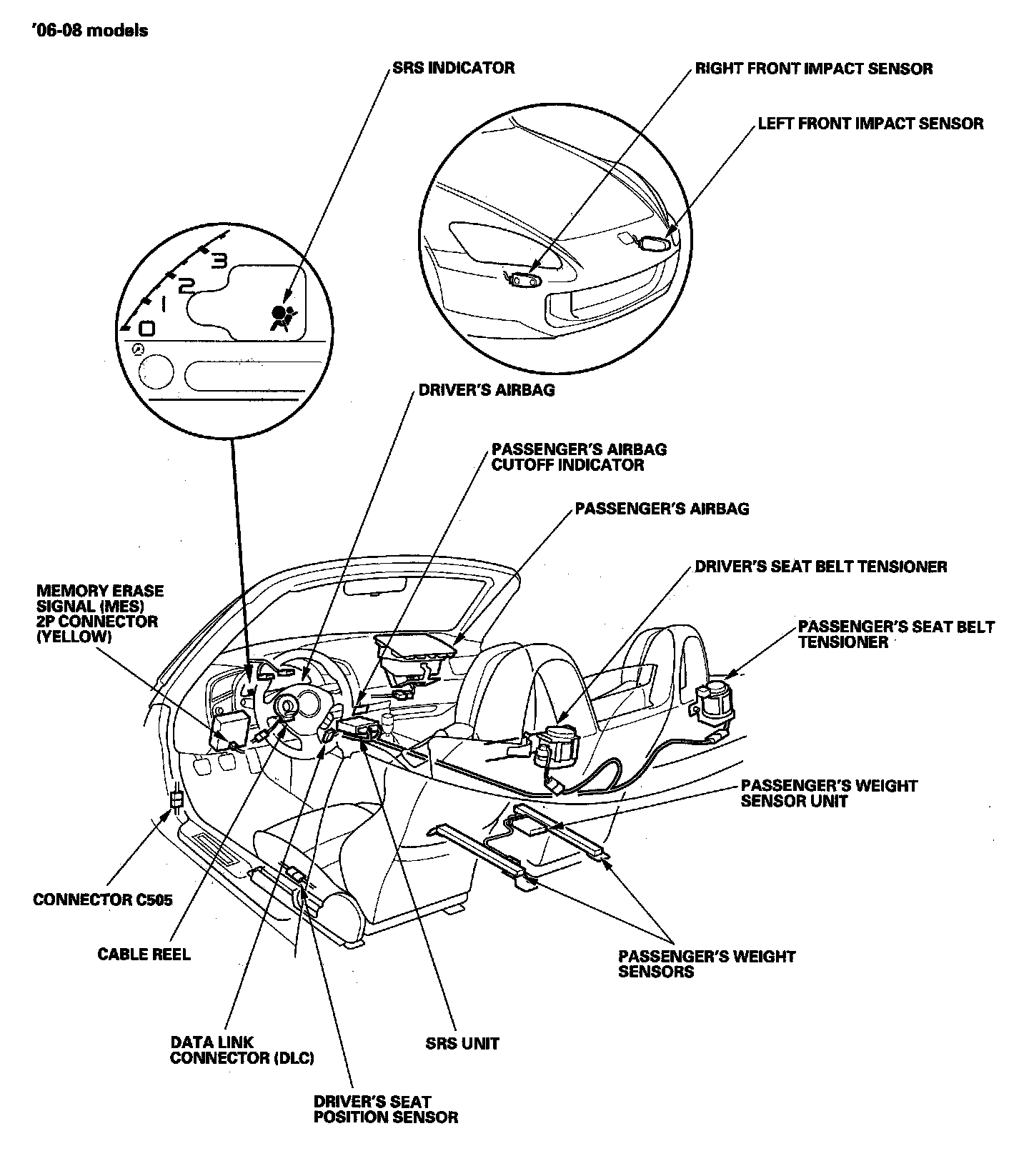

SRS Component Location Index:
