CKP Sensor Subharness
CKP Sensor Subharness

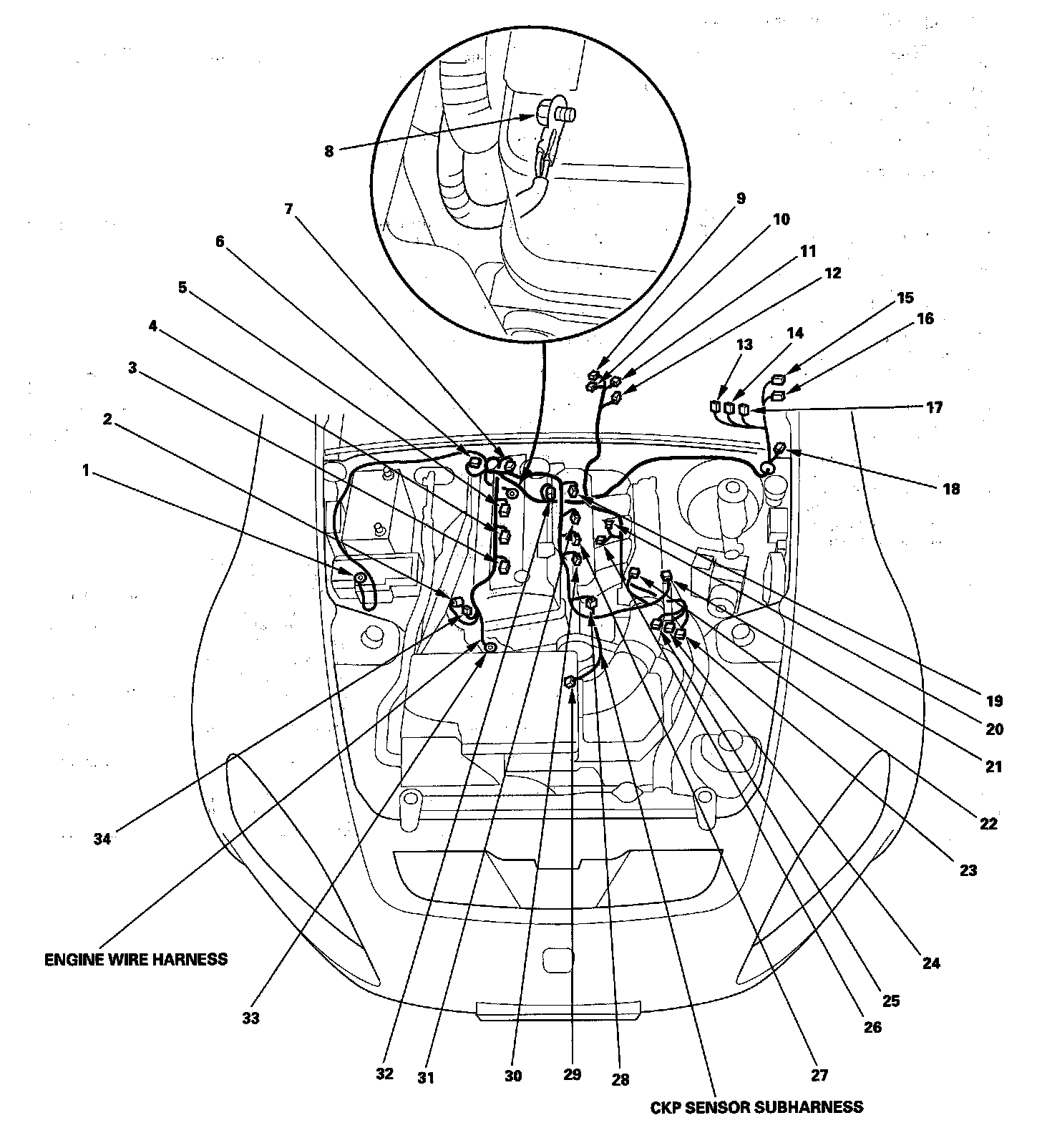

Harness Location View:
Engine Wire Harness:

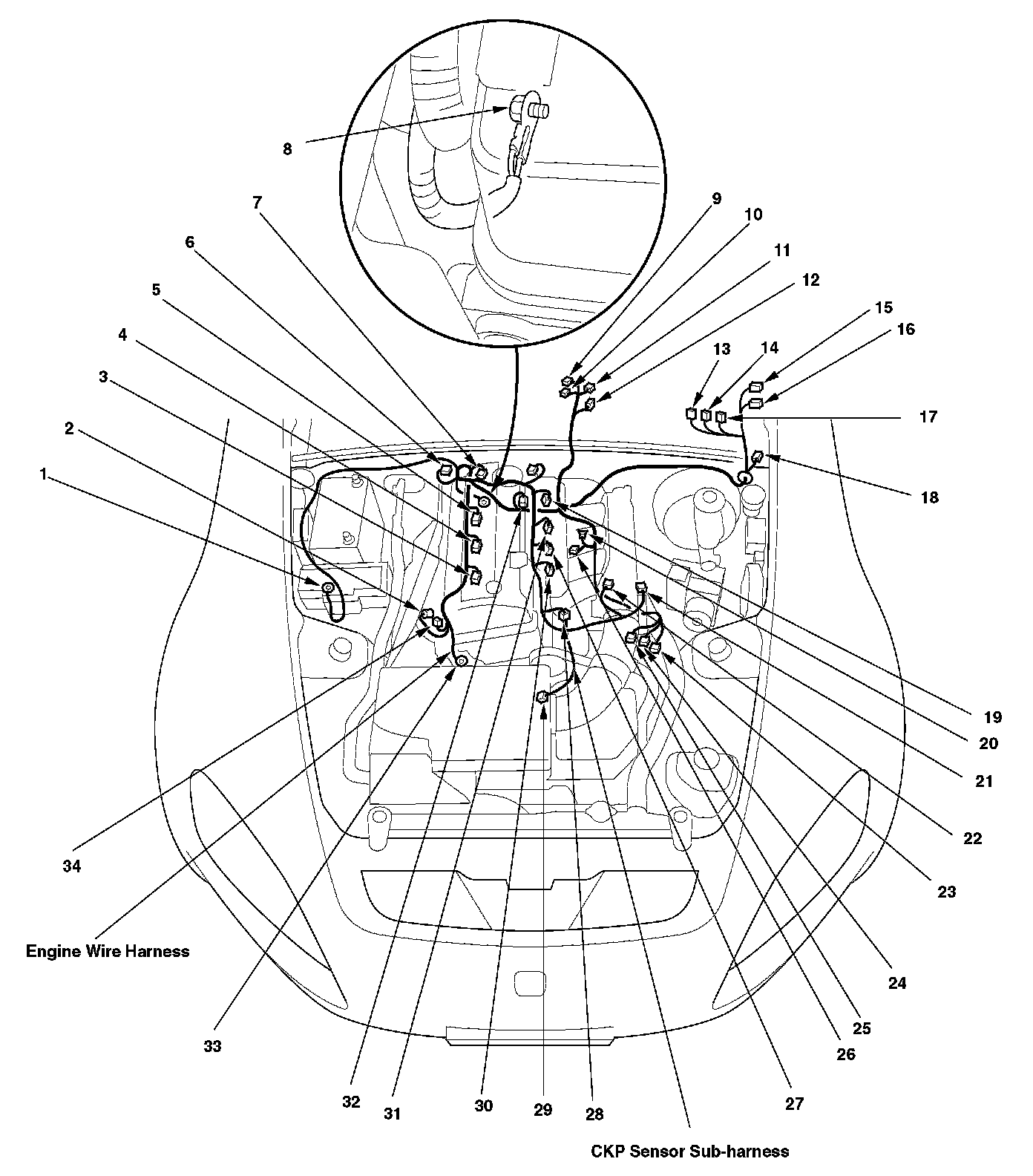

Harness Location View:

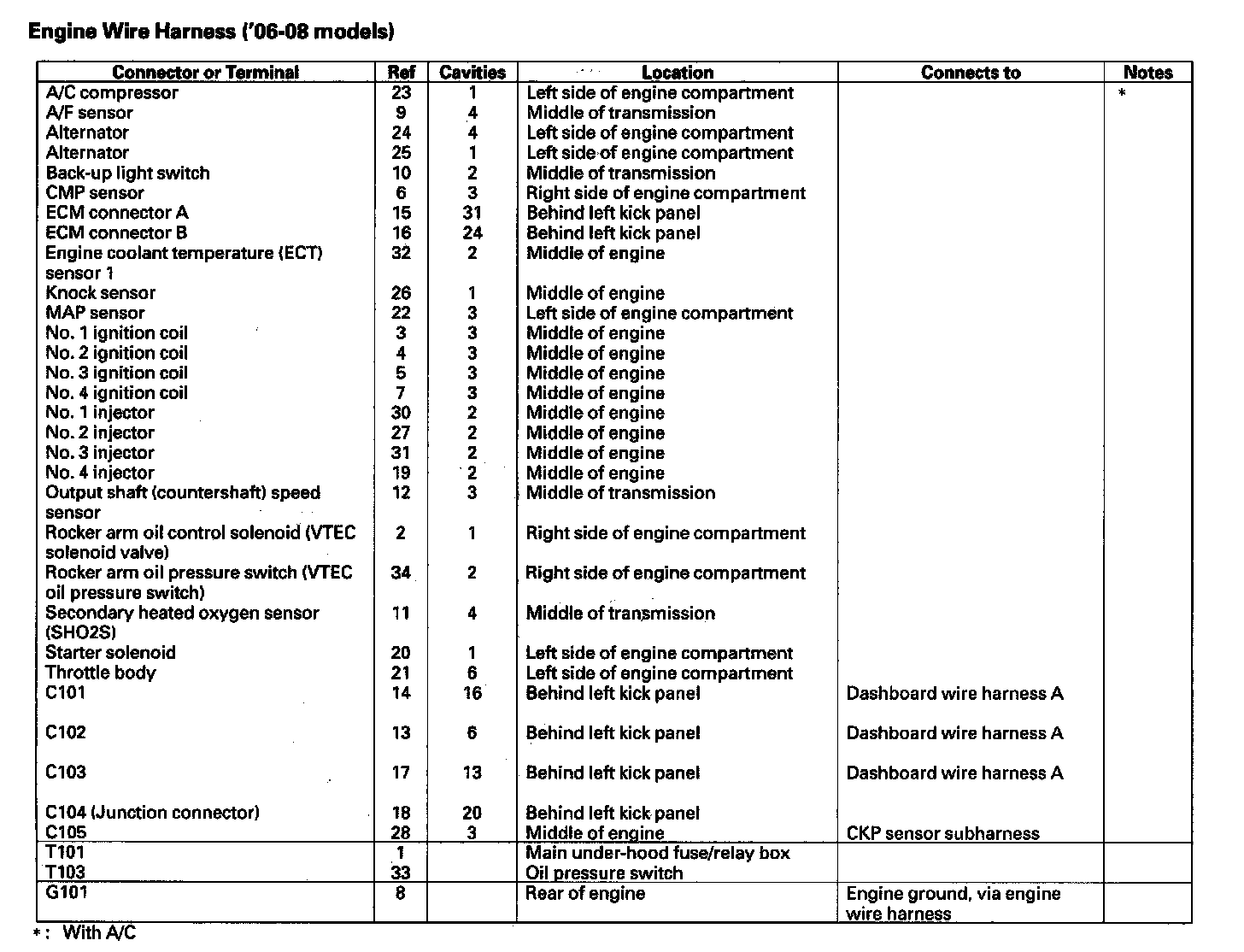

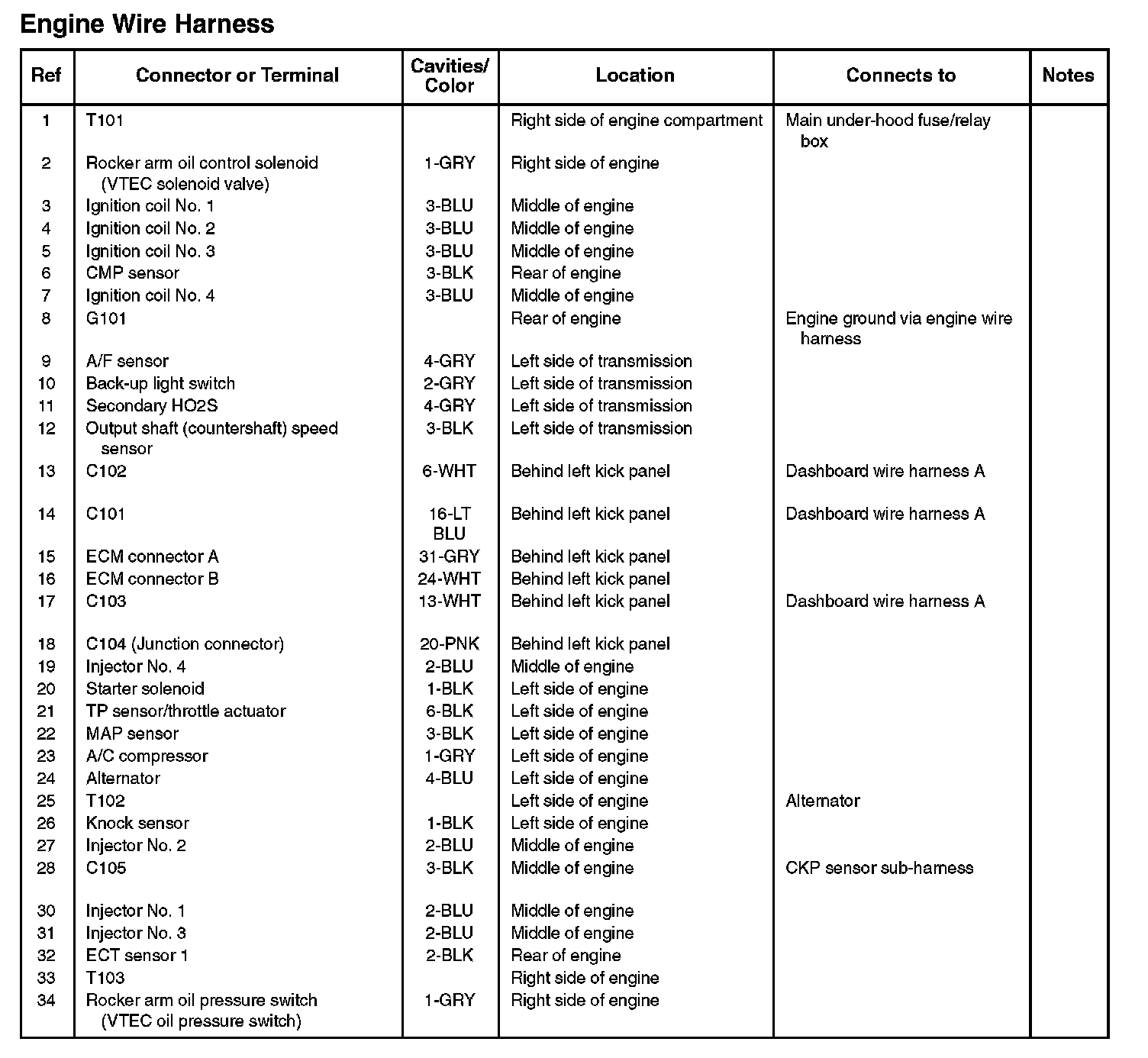

Engine Wire Harness:
