Home >> Honda >> 2008 >> Ridgeline V6-3.5L >> Repair and Diagnosis >> Power and Ground Distribution >> Fuse Block >> Locations >> Connector Locations >> Under-dash Fuse/Relay Box

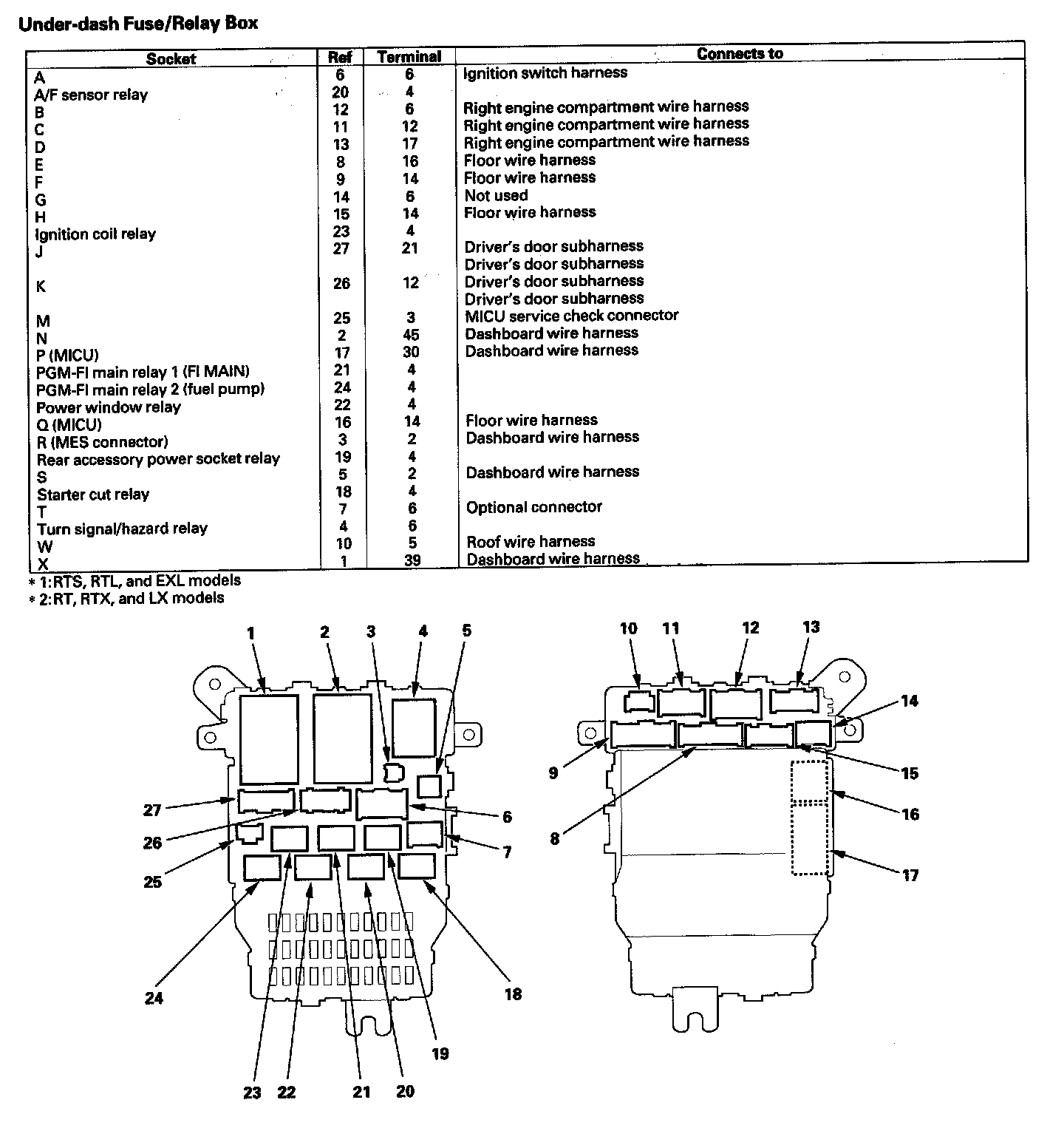

Under-dash Fuse/Relay Box

Under-dash Fuse/Relay Box:
