Cabin Noise Cancellation Control Module
Cabin Noise Cancellation Control Module

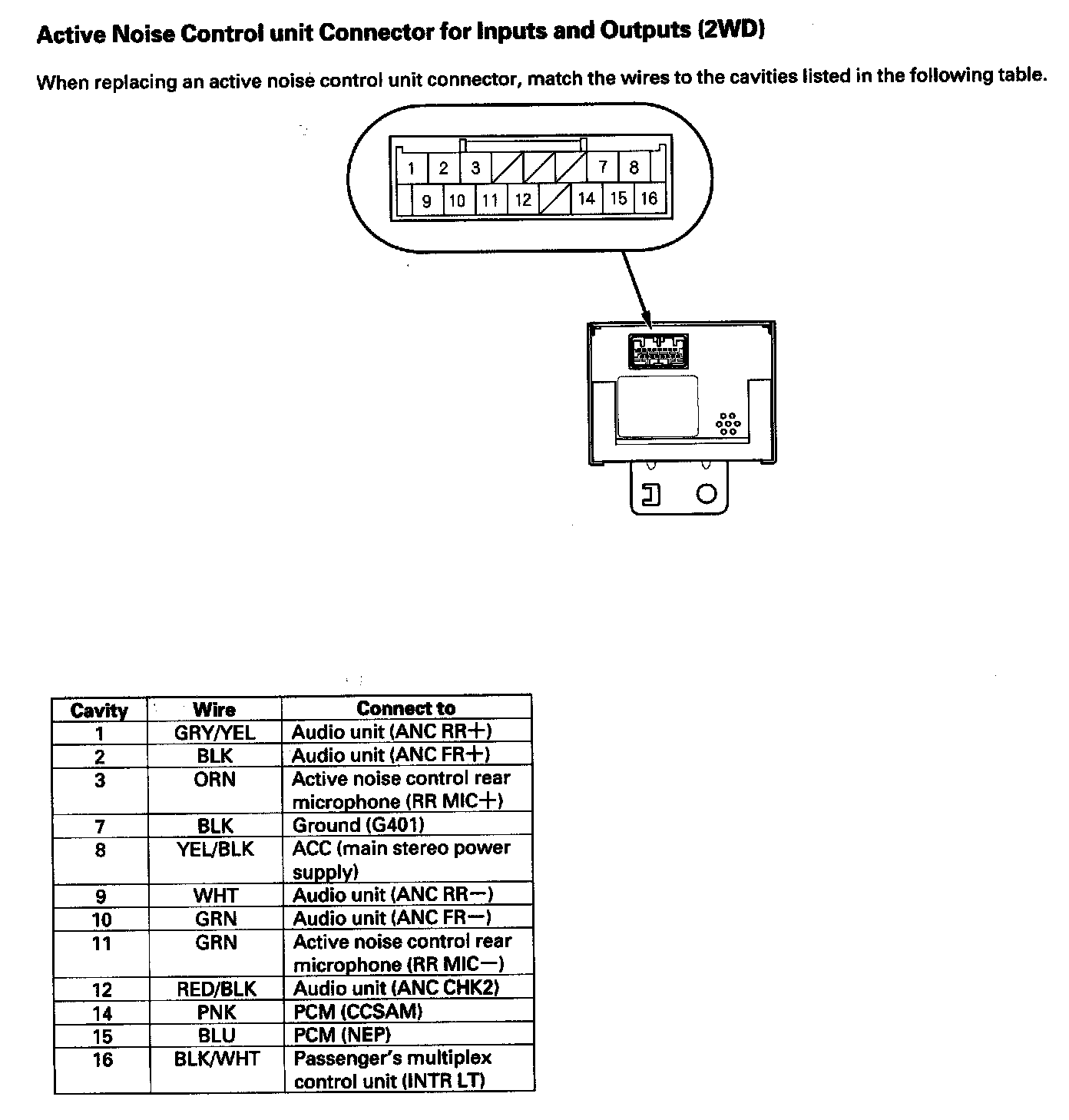

Active Noise Control Unit Connector For Inputs And Outputs (2WD):
299. Active Noise Control Unit (2WD):
