Pinout Values and Diagnostic Parameters

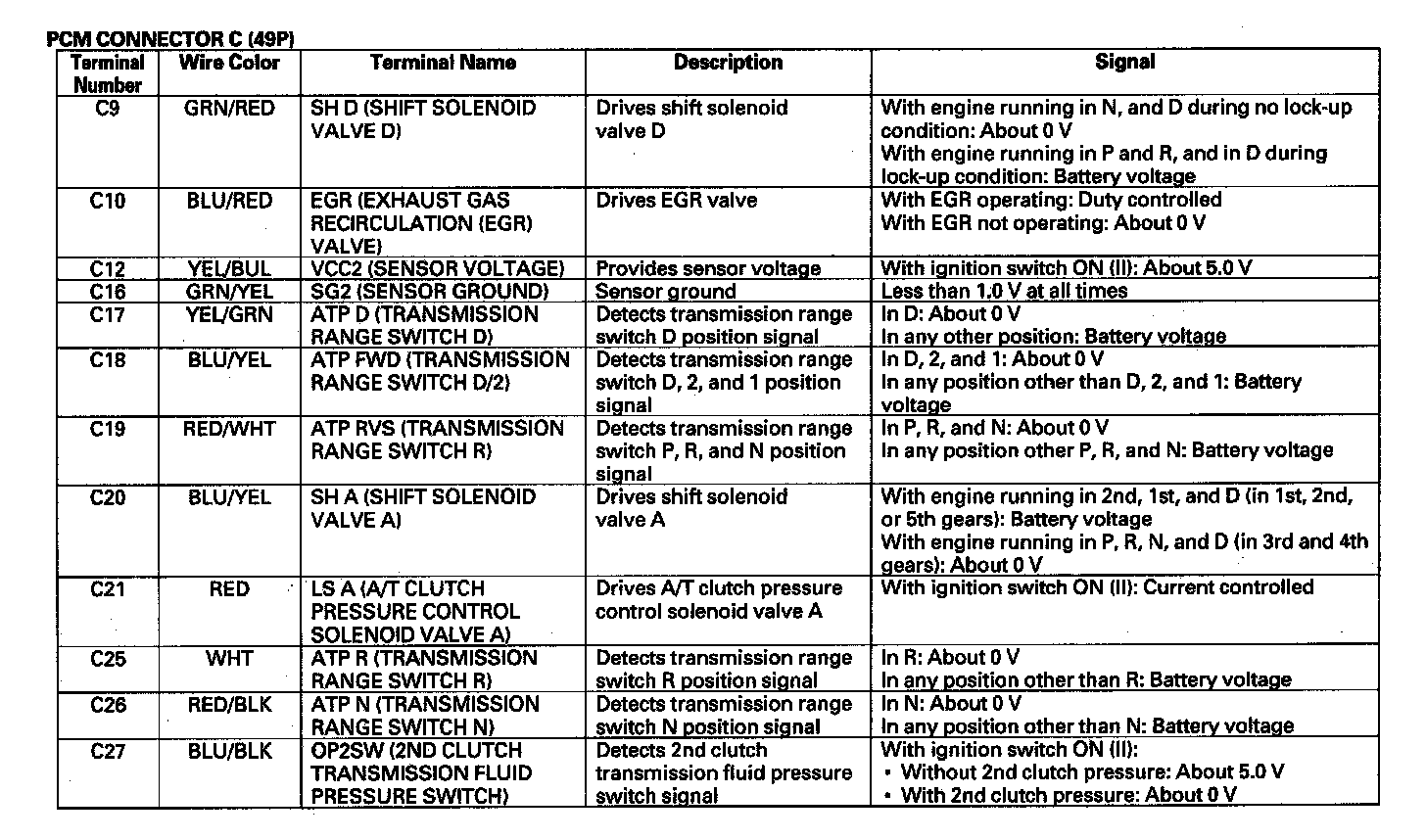

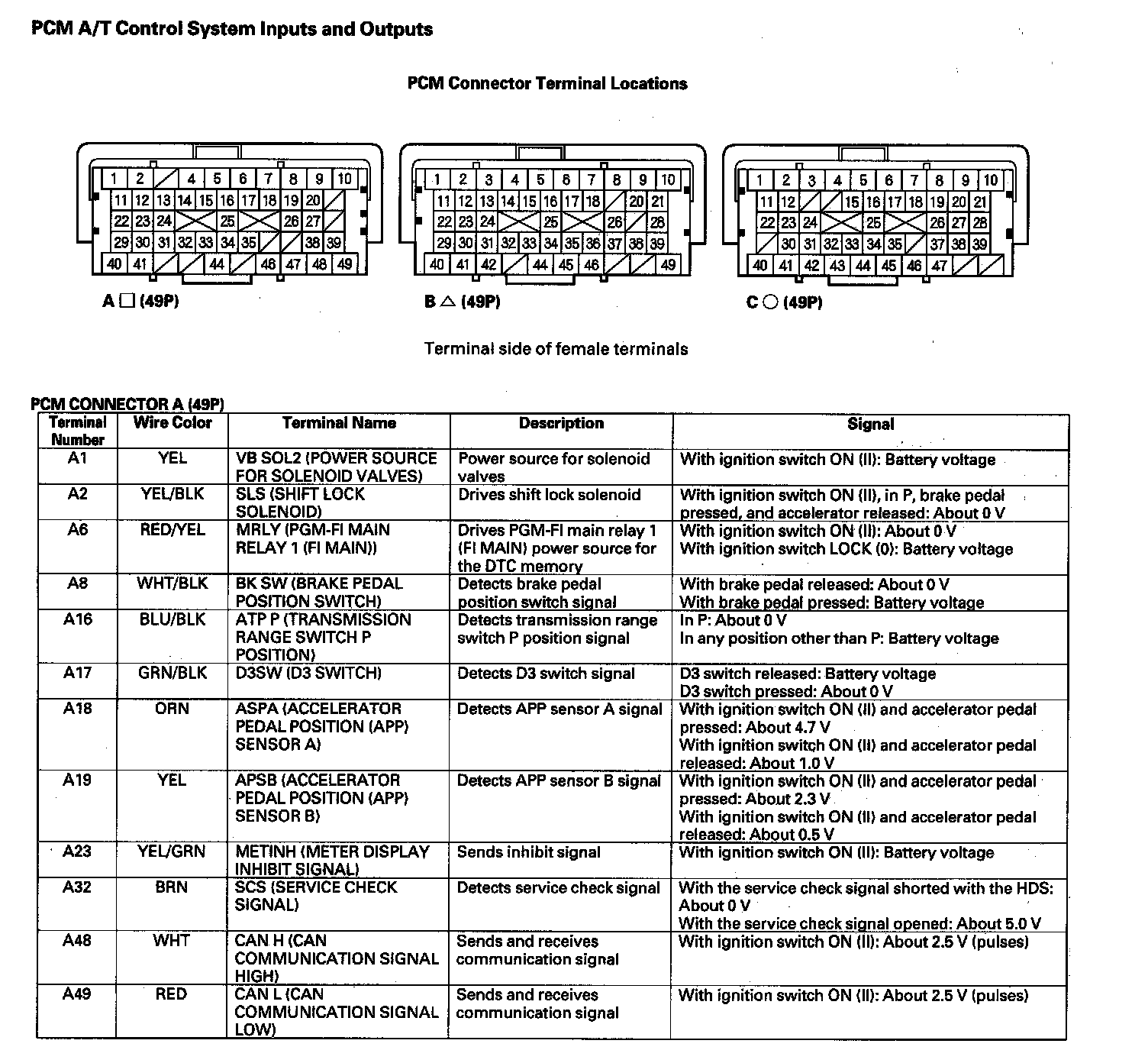

Control Module Pinout ValuesPCM A/T Control System Inputs and Outputs (Part 1):

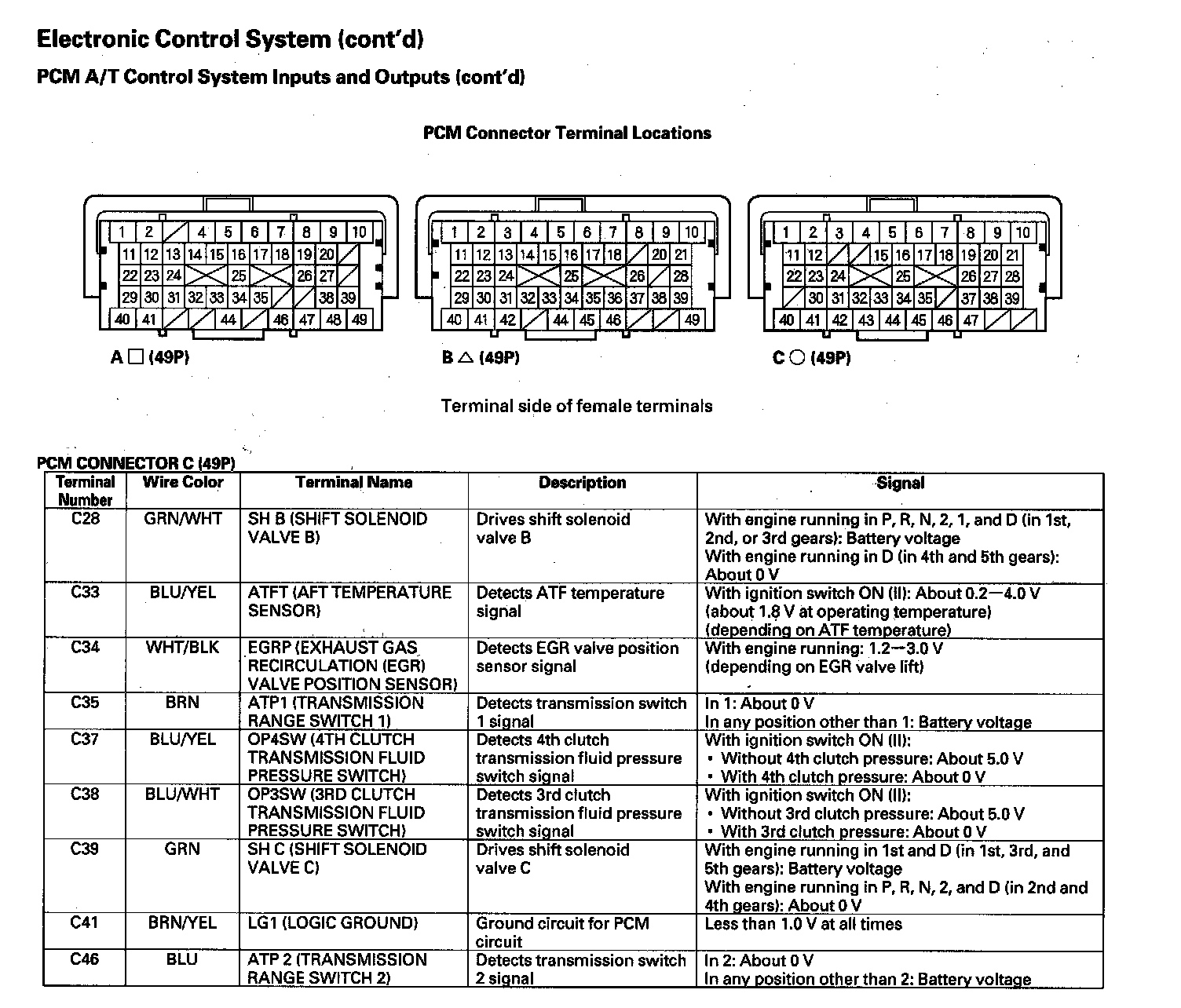

PCM A/T Control System Inputs and Outputs (Part 2):

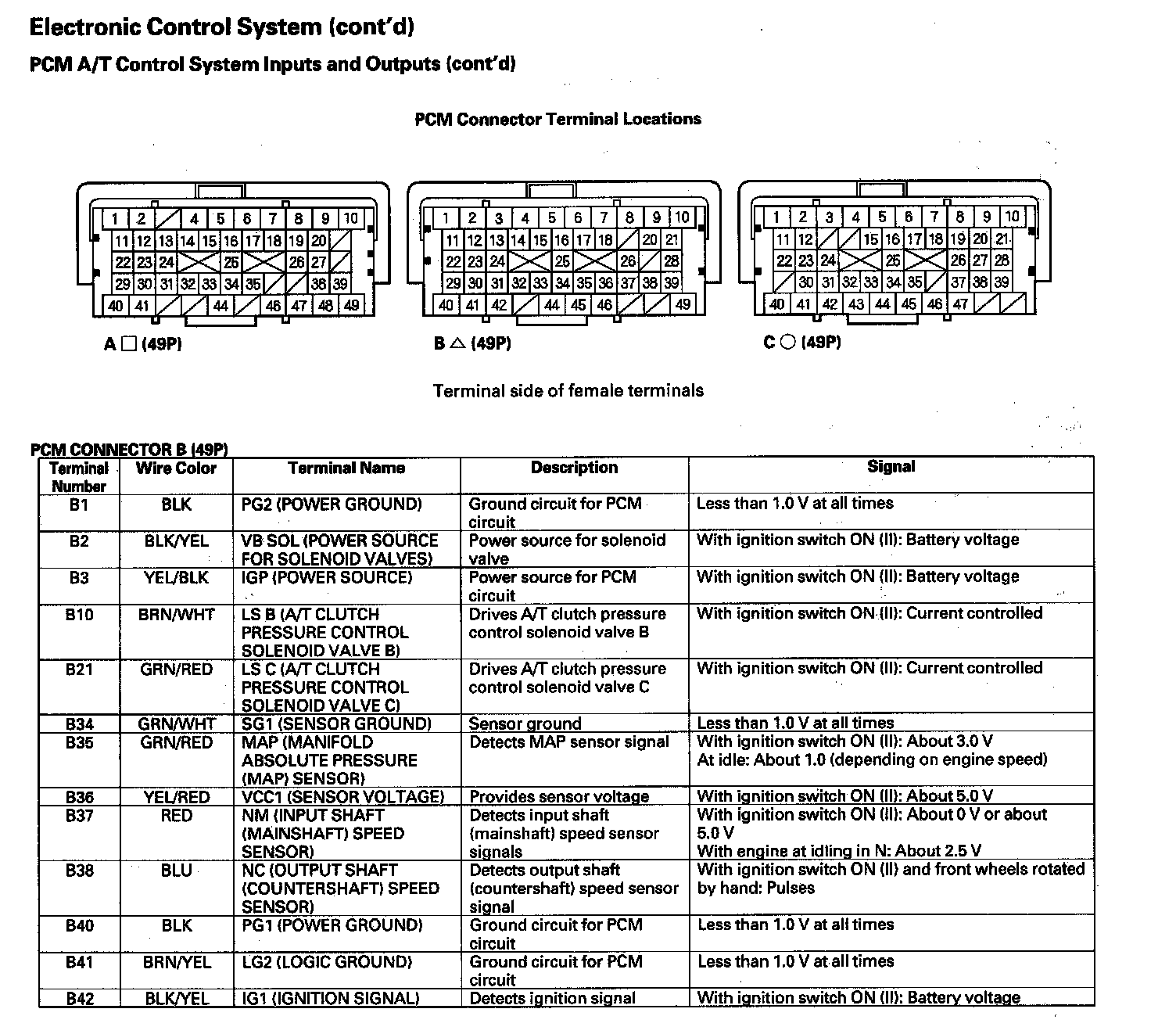

PCM A/T Control System Inputs and Outputs (Part 3):
PCM A/T Control System Inputs and Outputs (Part 4):
