Home >> Honda >> 2008 >> Odyssey V6-3.5L >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Engine >> Engine Mount Control Unit >> Locations

Engine Mount Control Unit: Locations

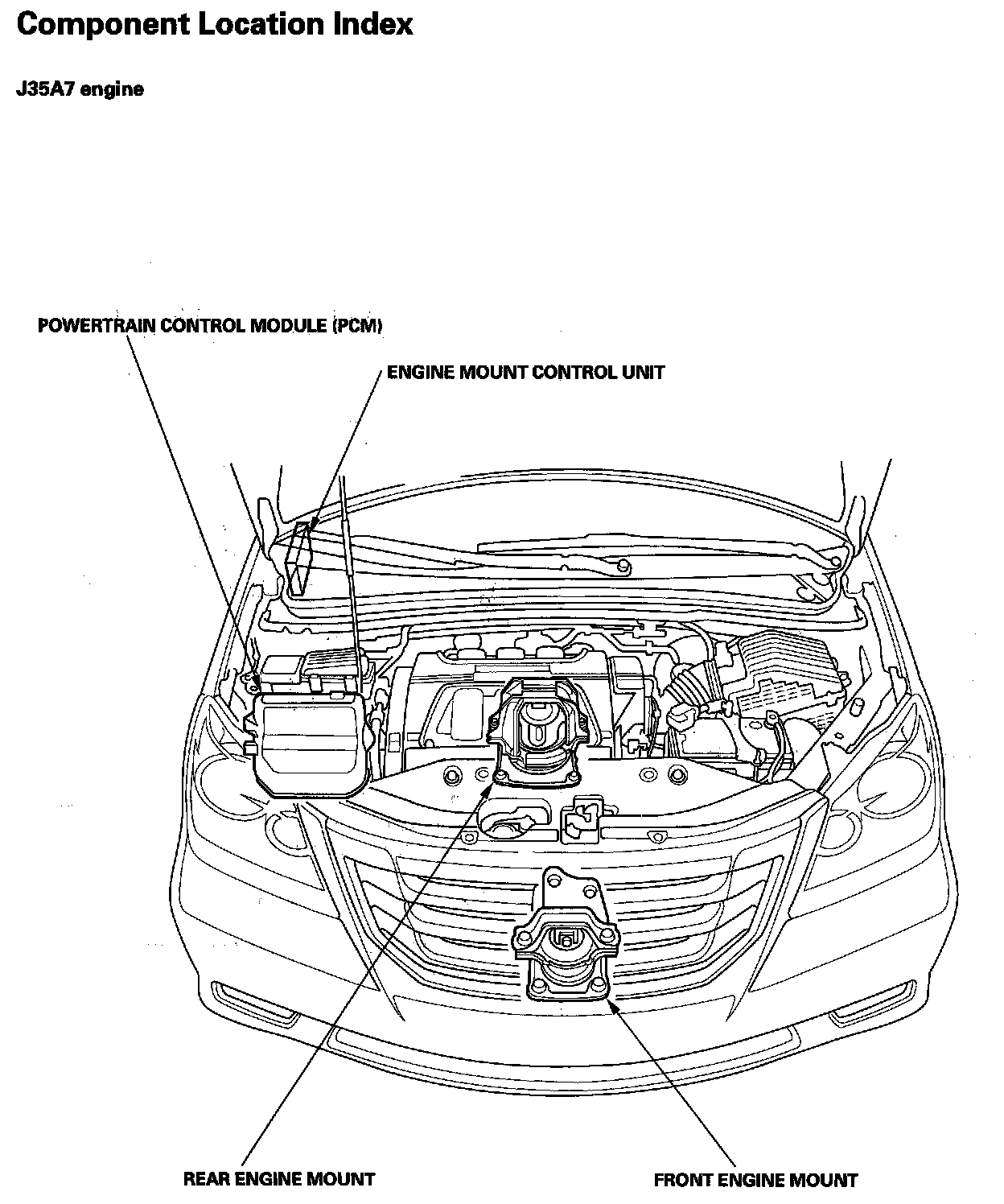

Active Control Engine Mount (ACM) System Component Location Index:

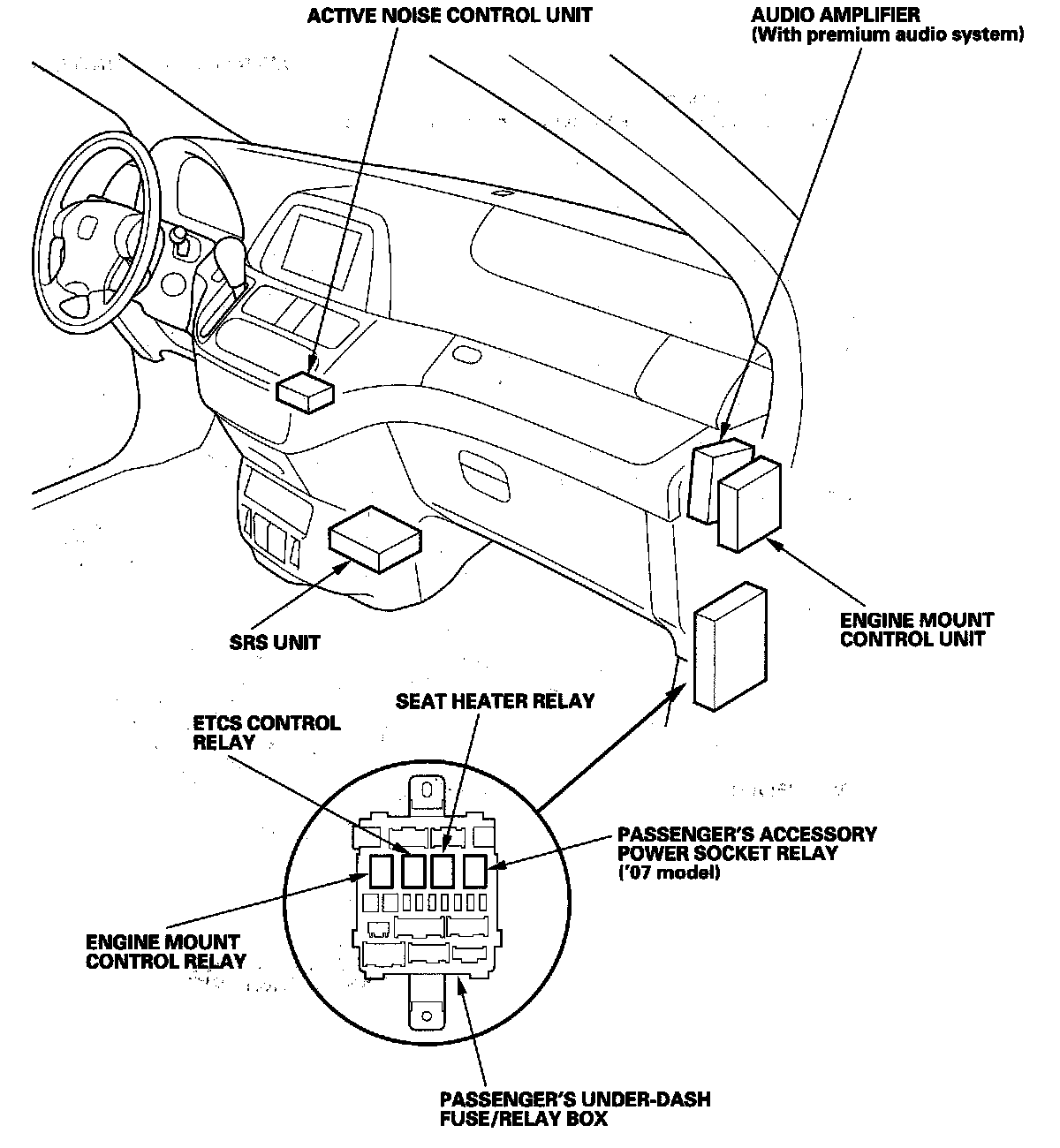

119. Under Right Side Of Dash (EX-L, Touring):



Relay And Control Unit Locations Dashboard:
