Home >> Honda >> 2008 >> Odyssey V6-3.5L >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Body and Frame >> Power Trunk / Liftgate Control Module >> Locations >> Connector Locations

Connector Locations

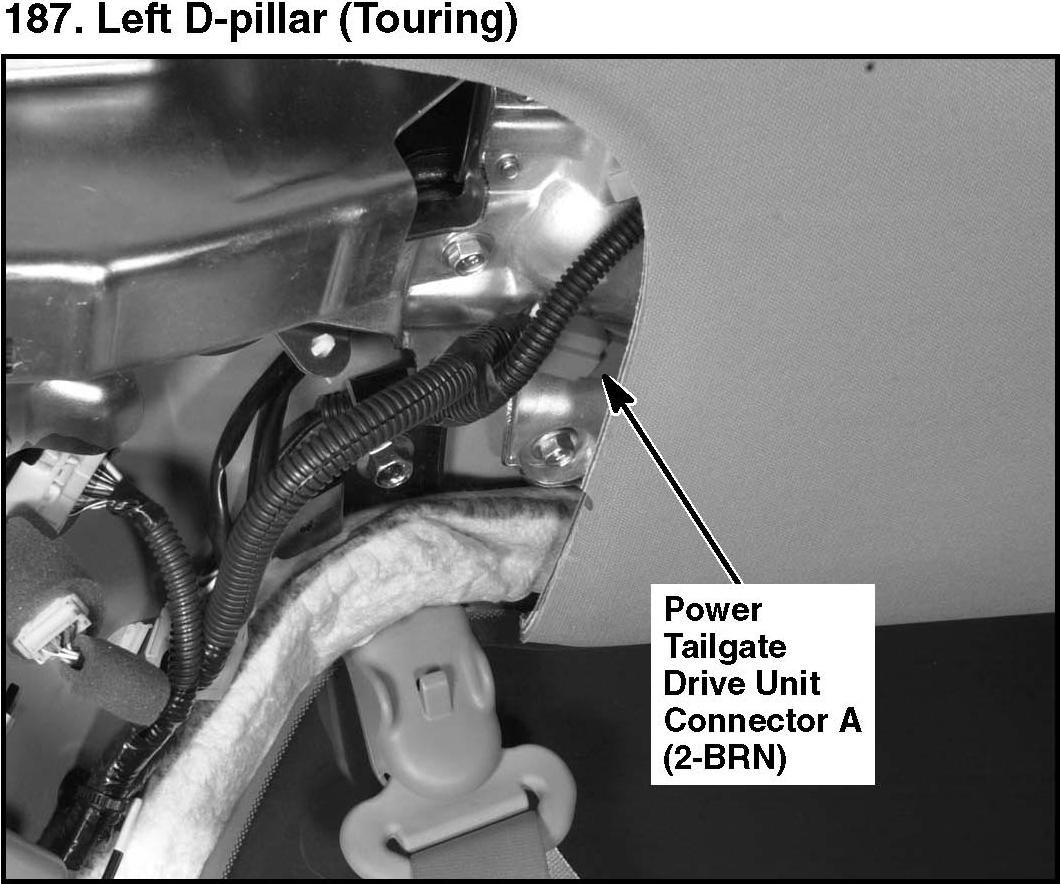

187. Left D-pillar (Touring):

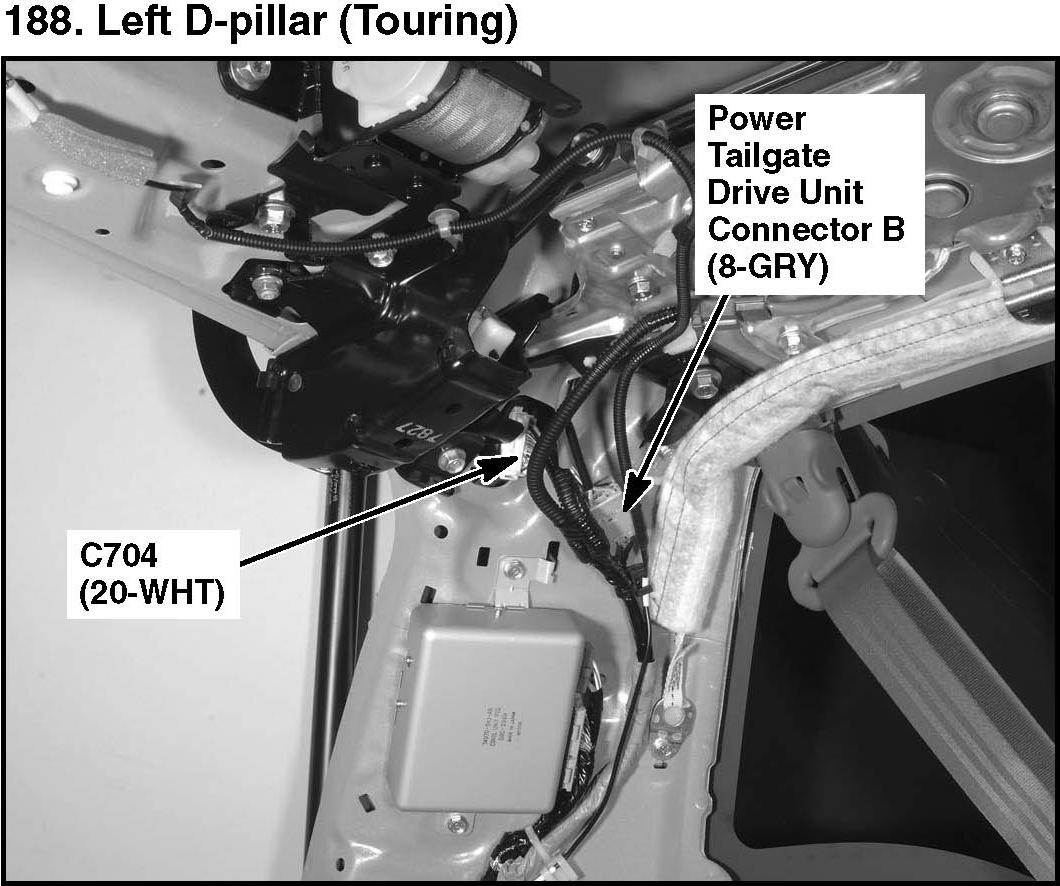

188. Left D-pillar (Touring):
