Tire Pressure Module
>>

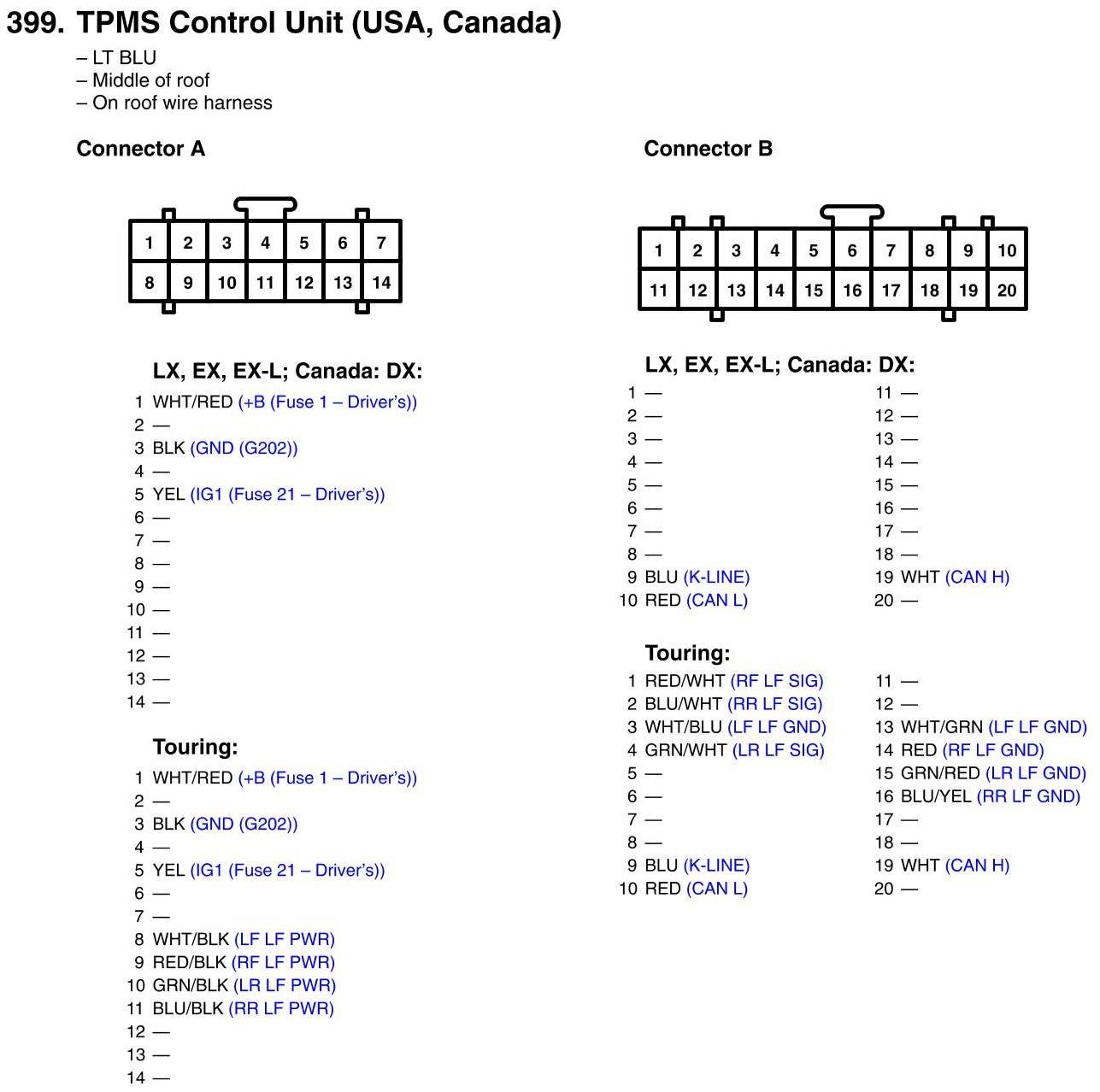

TPMS Control Unit Connector View (USA; Canada)
TPMS Control Unit Connector View (USA; Canada)
