Steering Control Module: Testing and Inspection


System Description

EPS Control Unit Inputs And Outputs For Connector A (2P):




EPS Control Unit Inputs And Outputs For Connector B (2P):




EPS Control Unit Inputs And Outputs For Connector C (2P):

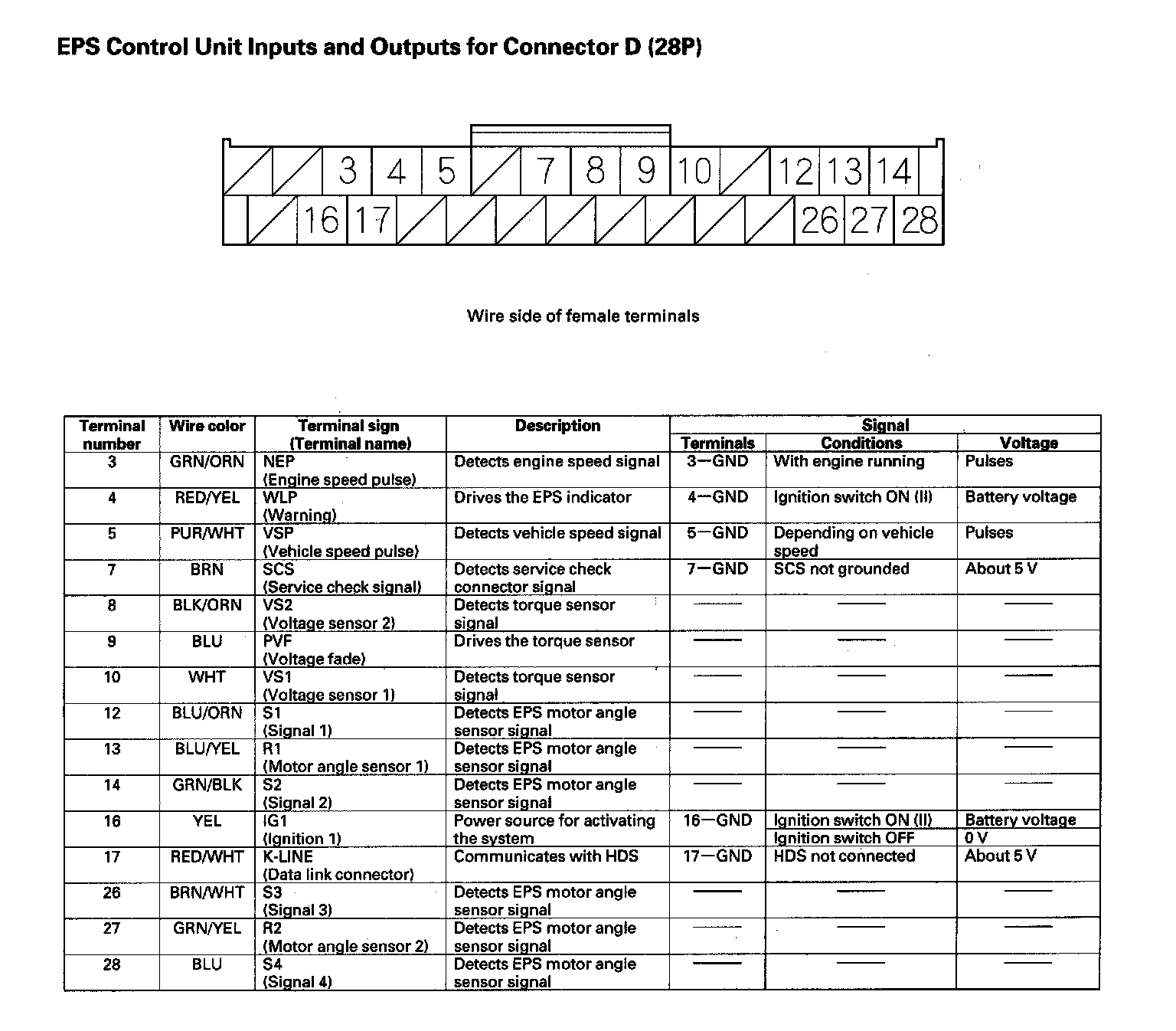

EPS Control Unit Inputs And Outputs For Connector D (28P):
