Home >> Honda >> 2008 >> Fit L4-1.5L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Fuel Tank Pressure Sensor >> Locations

Fuel Tank Pressure Sensor: Locations

137. Under Left Side Of Floor:

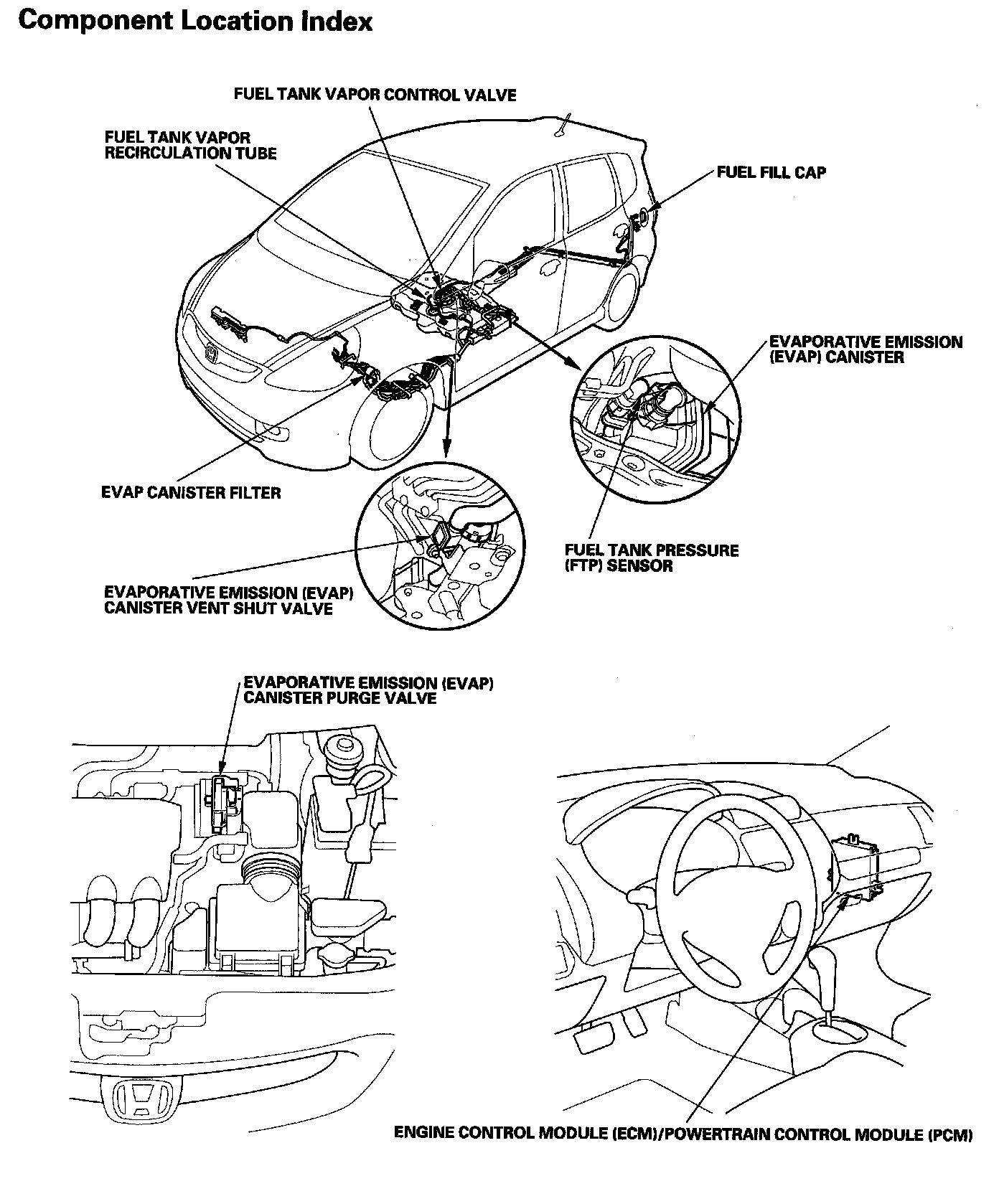

EVAP System Component Location Index:
