Home >> Honda >> 2008 >> Element 2WD L4-2.4L >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Automatic Transmission/Transaxle >> Standards and Service Limits

Standards and Service Limits

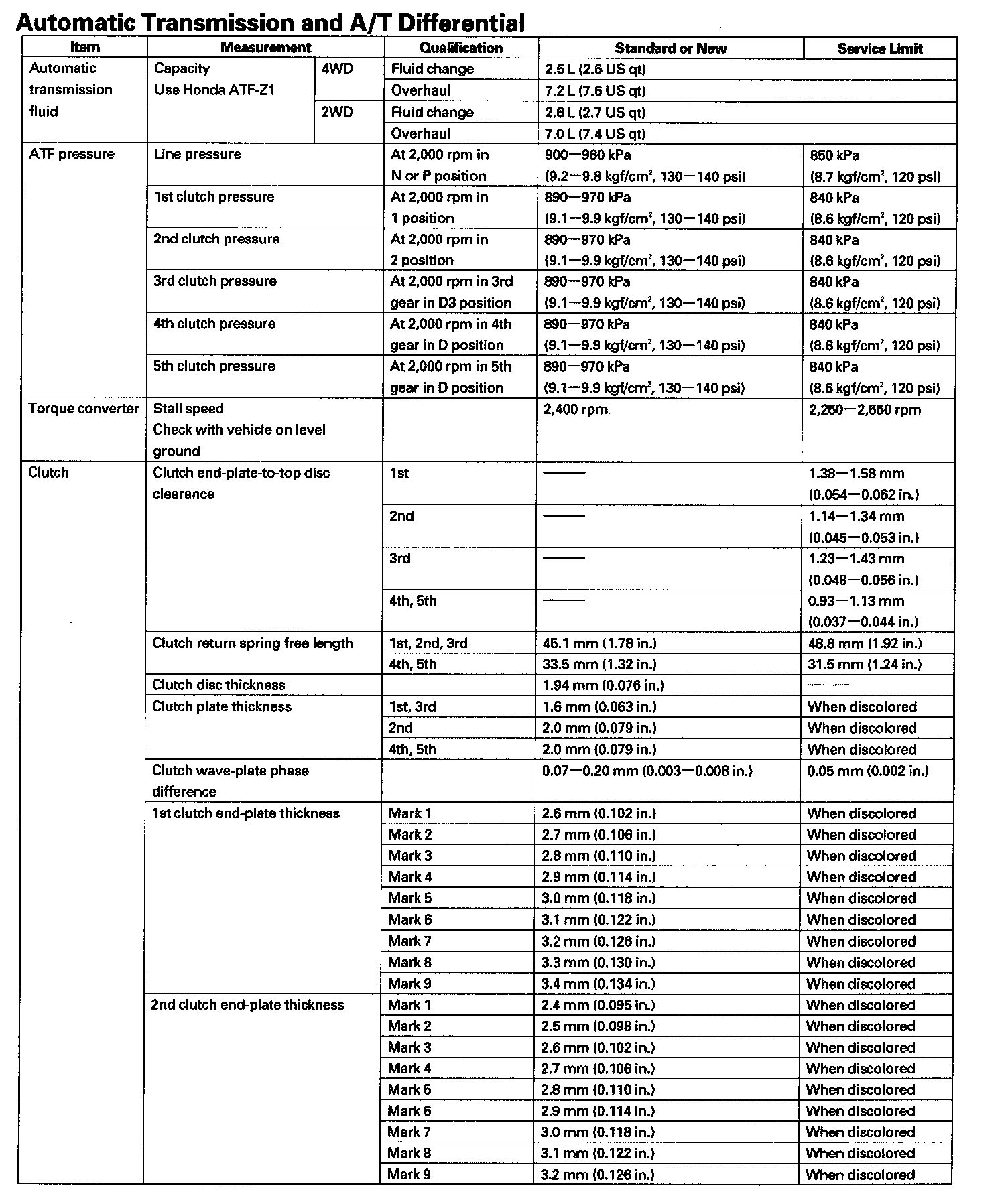

Automatic Transmission and A/T Differential (Part 1):



Automatic Transmission and A/T Differential (Part 2):



Automatic Transmission and A/T Differential (Part 3):



Automatic Transmission and A/T Differential (Part 4):



Automatic Transmission and A/T Differential (Part 5):



Automatic Transmission and A/T Differential (Part 6):
