Air Bag Control Module: Locations

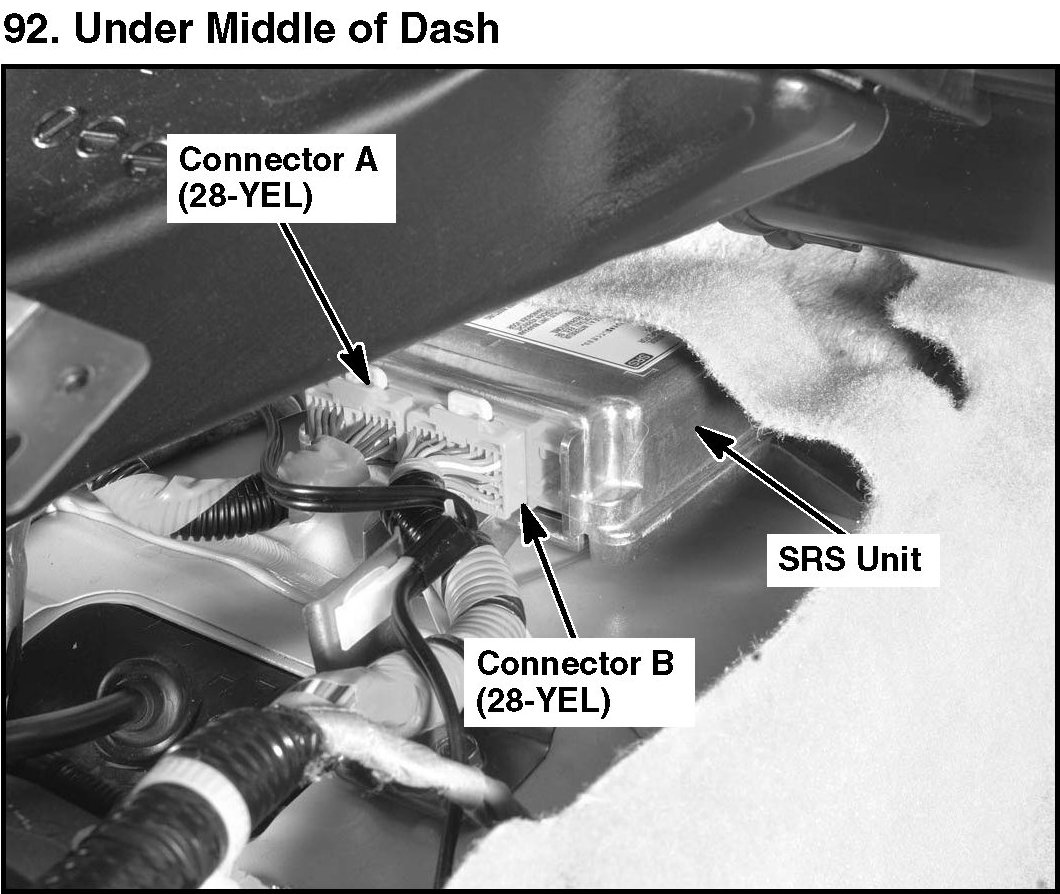

92. Under Middle Of Dash:

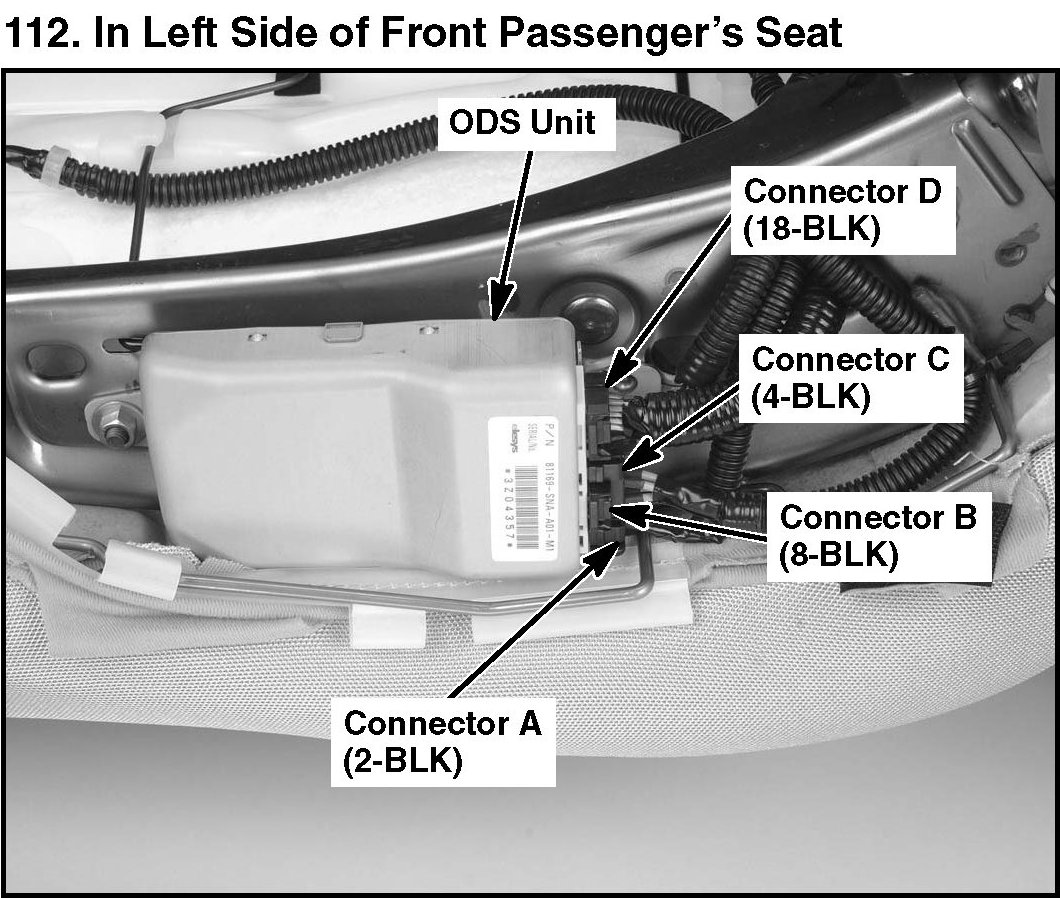

112. In Left Side Of Front Passenger's Seat:

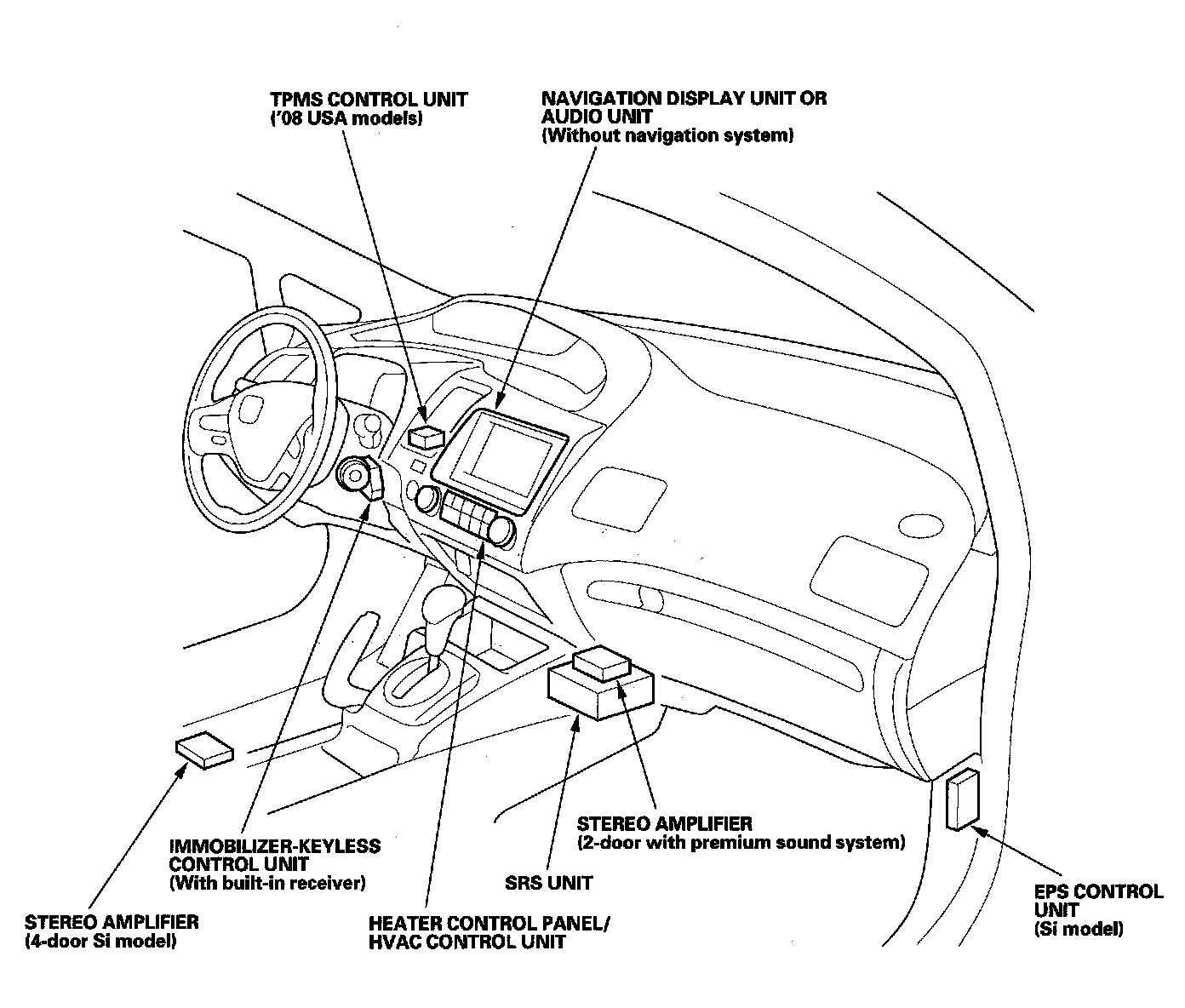

Relay And Control Unit Locations Dashboard:

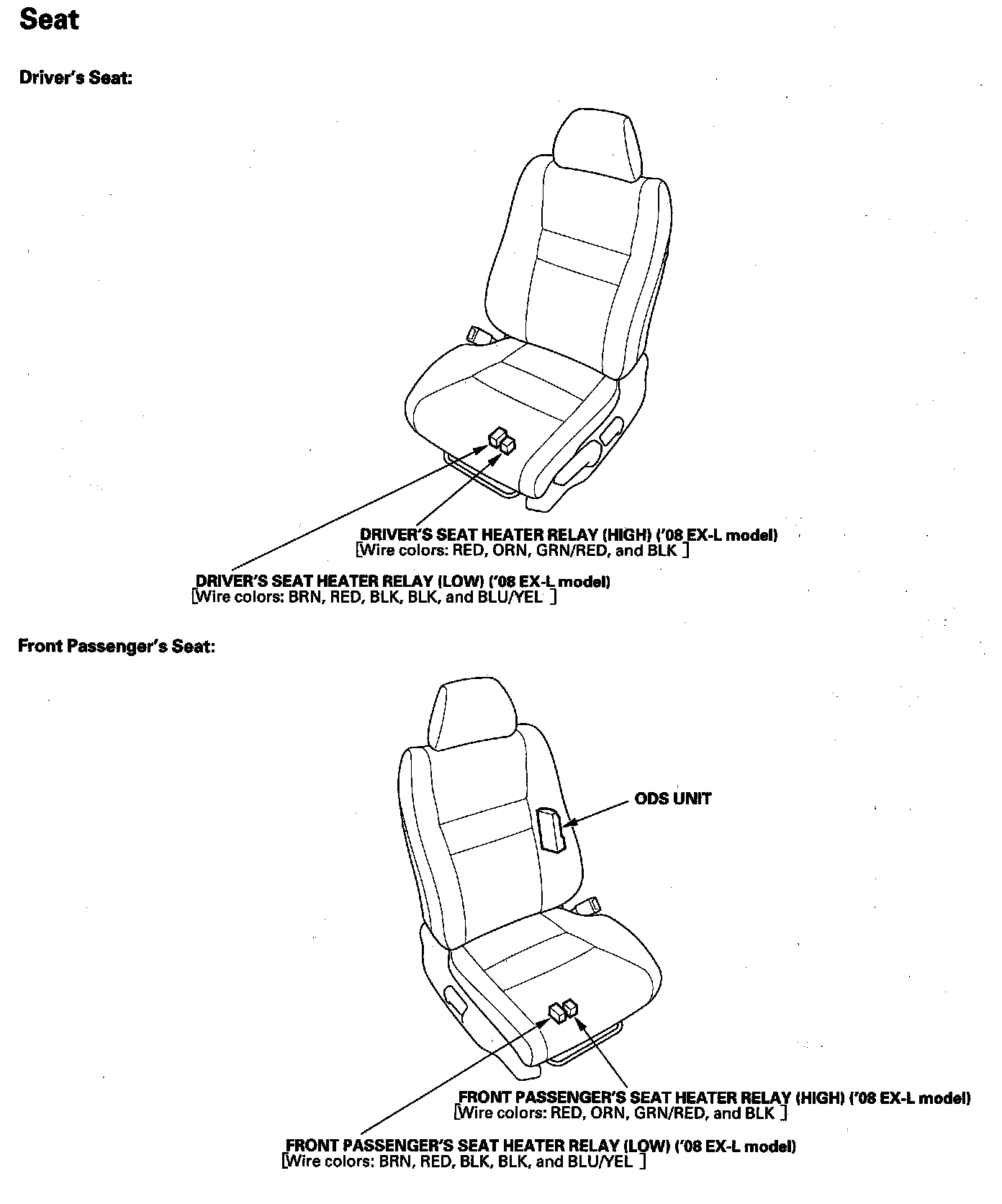

Relay And Control Unit Locations Seat:



Reminder Systems Component Location Index:

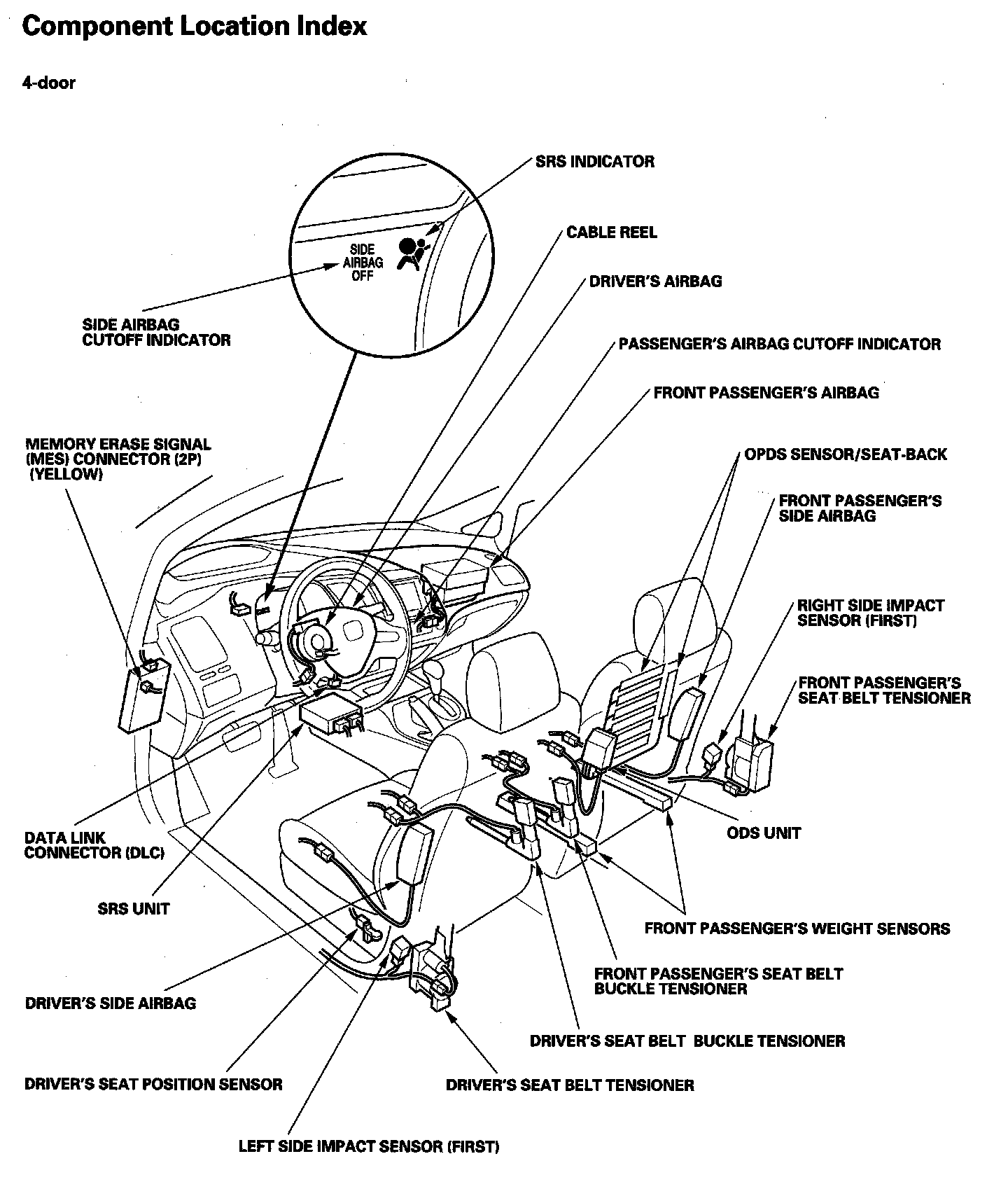

SRS Component Location Index:
