ECM/PCM Inputs and Outputs

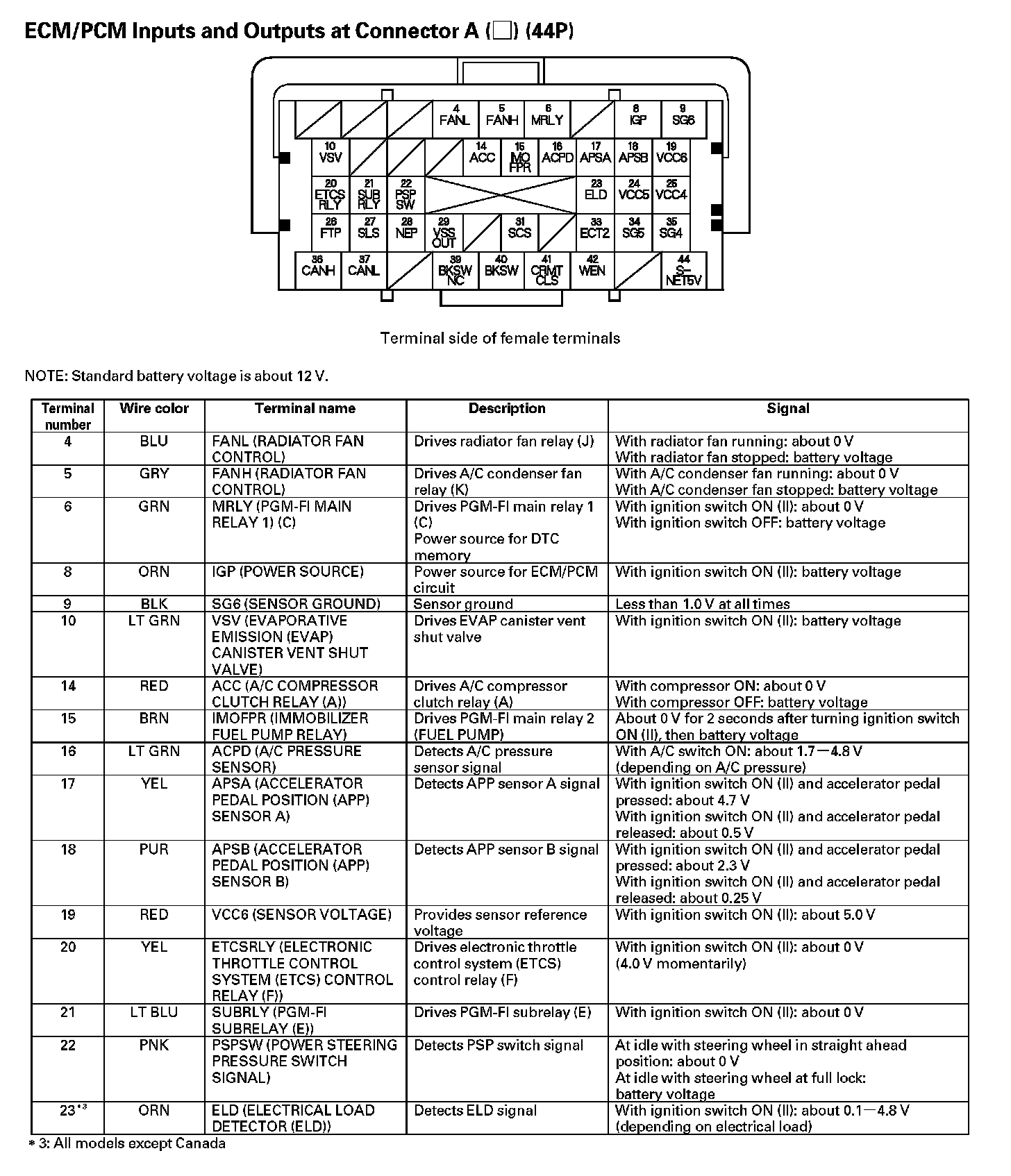

ECM/PCM Inputs And Outputs At Connector A (44P) (Part 1):

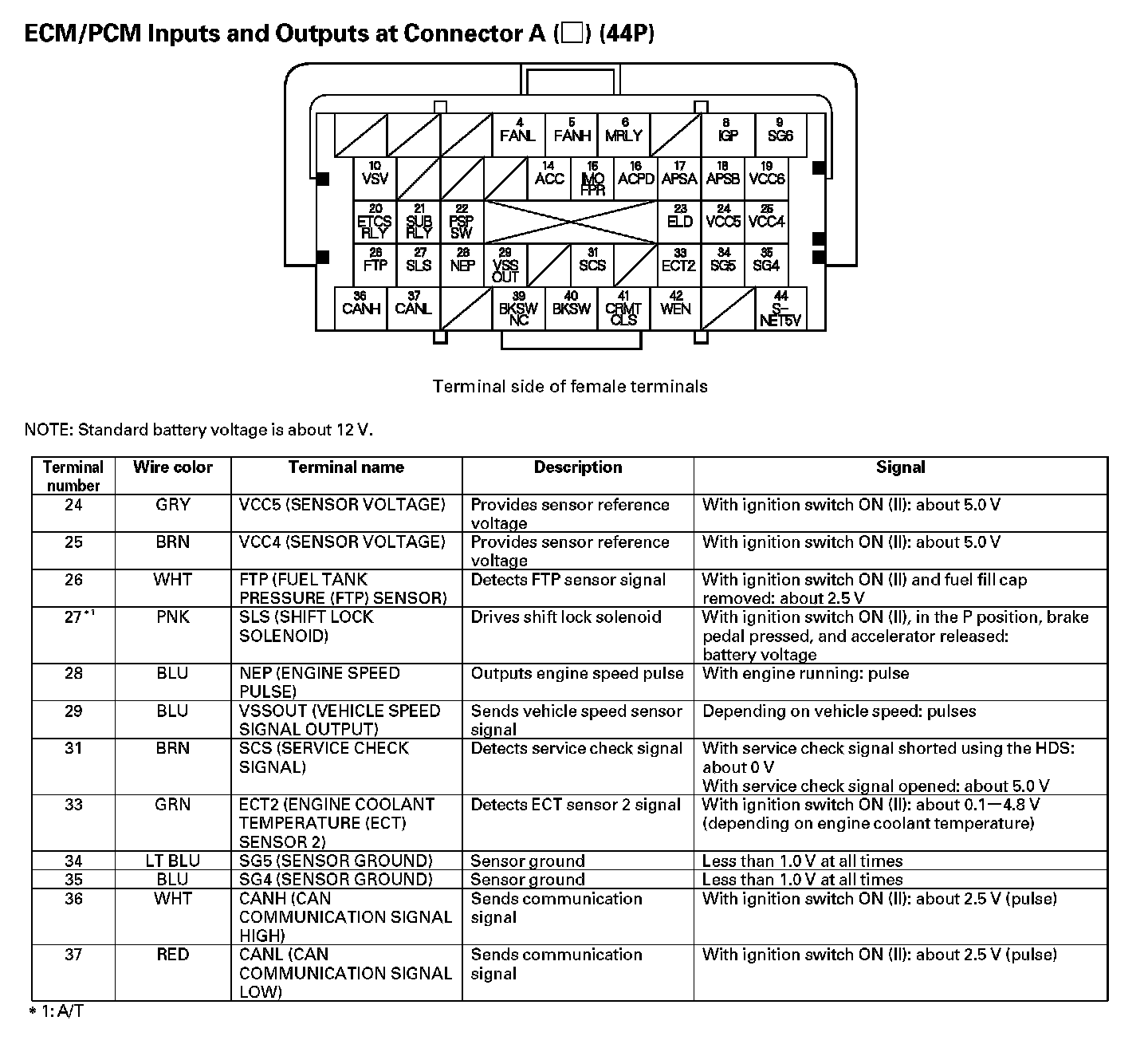

ECM/PCM Inputs And Outputs At Connector A (44P) (Part 2):

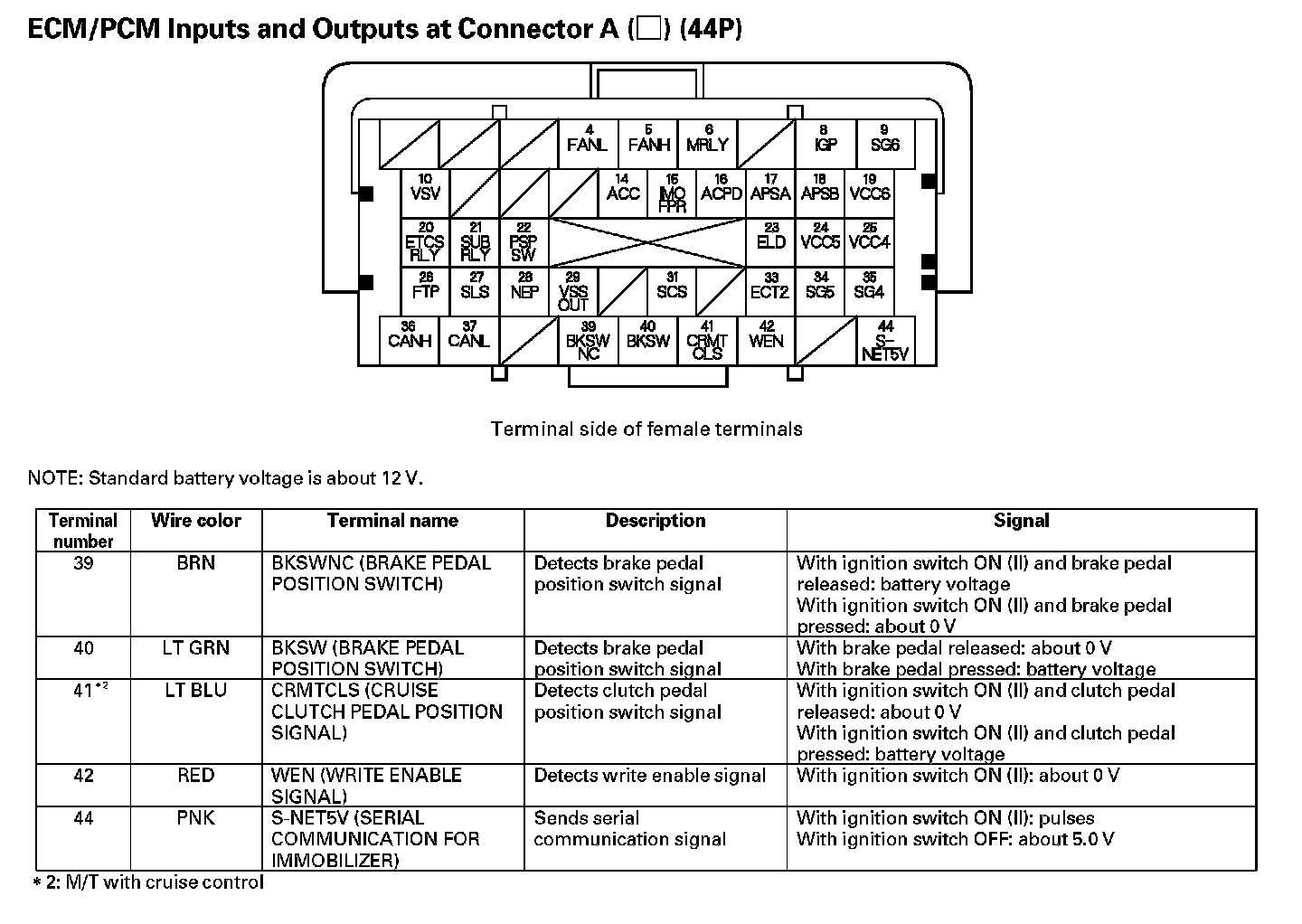

ECM/PCM Inputs And Outputs At Connector A (44P) (Part 3):



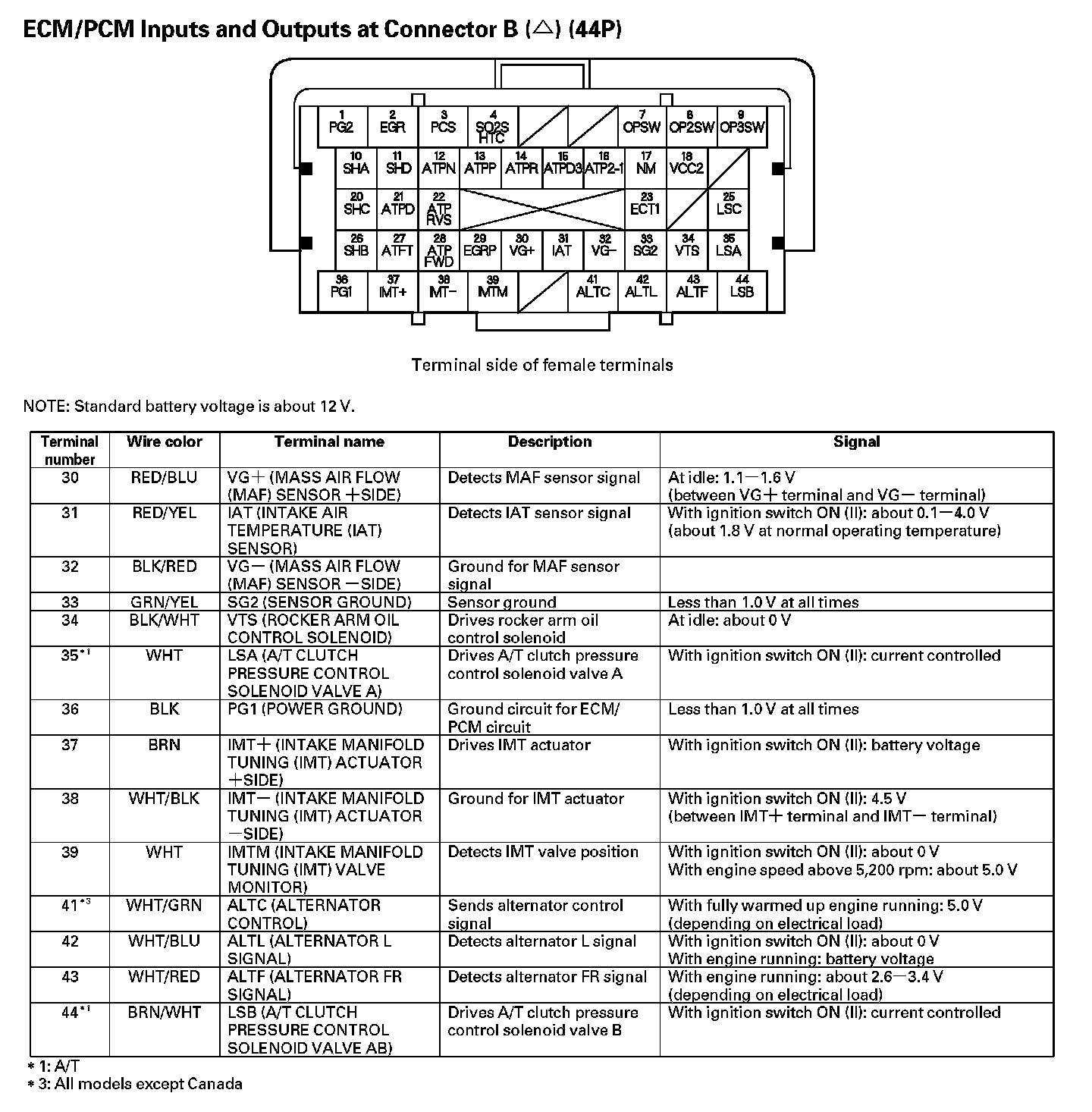

ECM/PCM Inputs And Outputs At Connector B (44P) (Part 1):



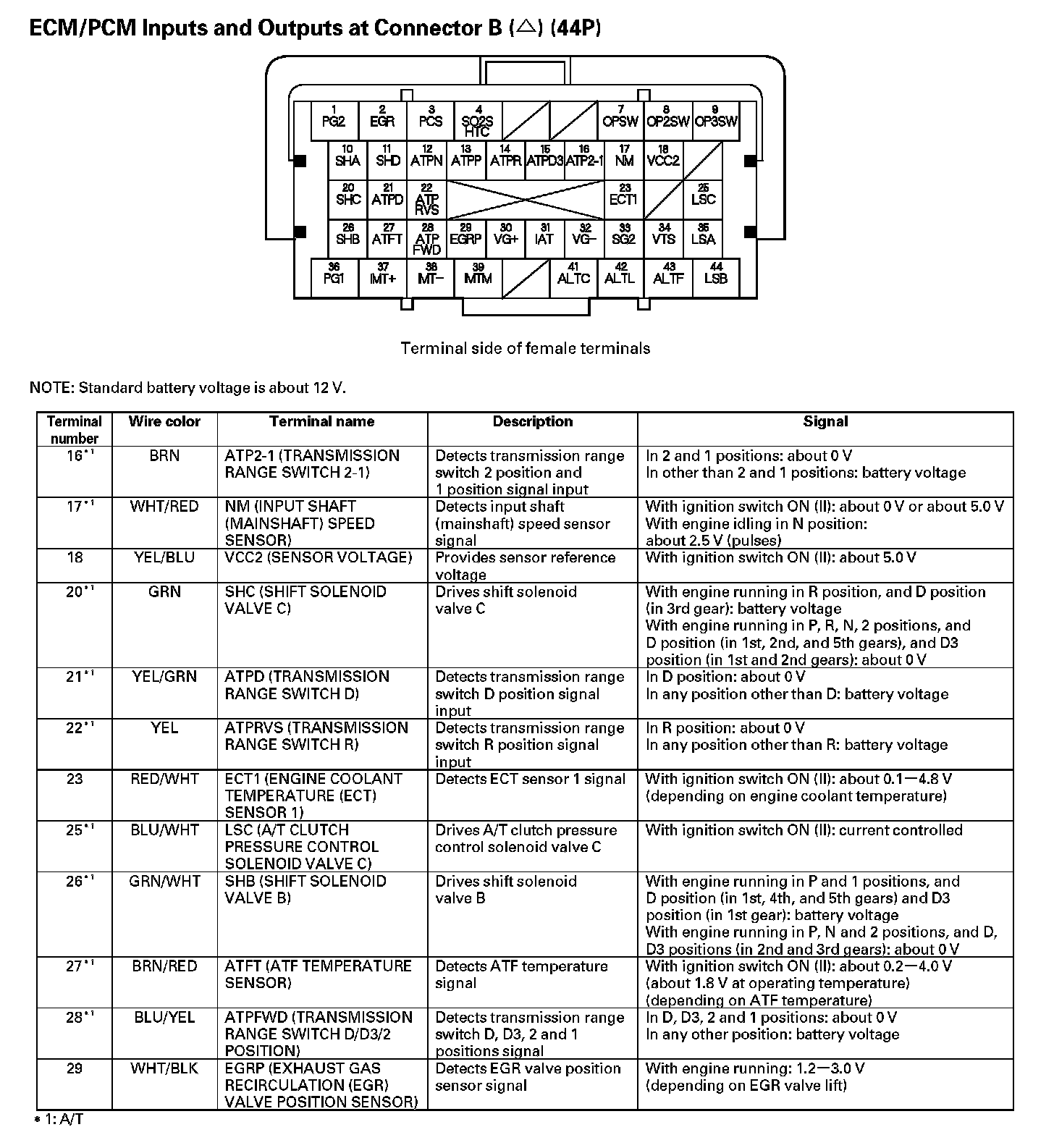

ECM/PCM Inputs And Outputs At Connector B (44P) (Part 2):



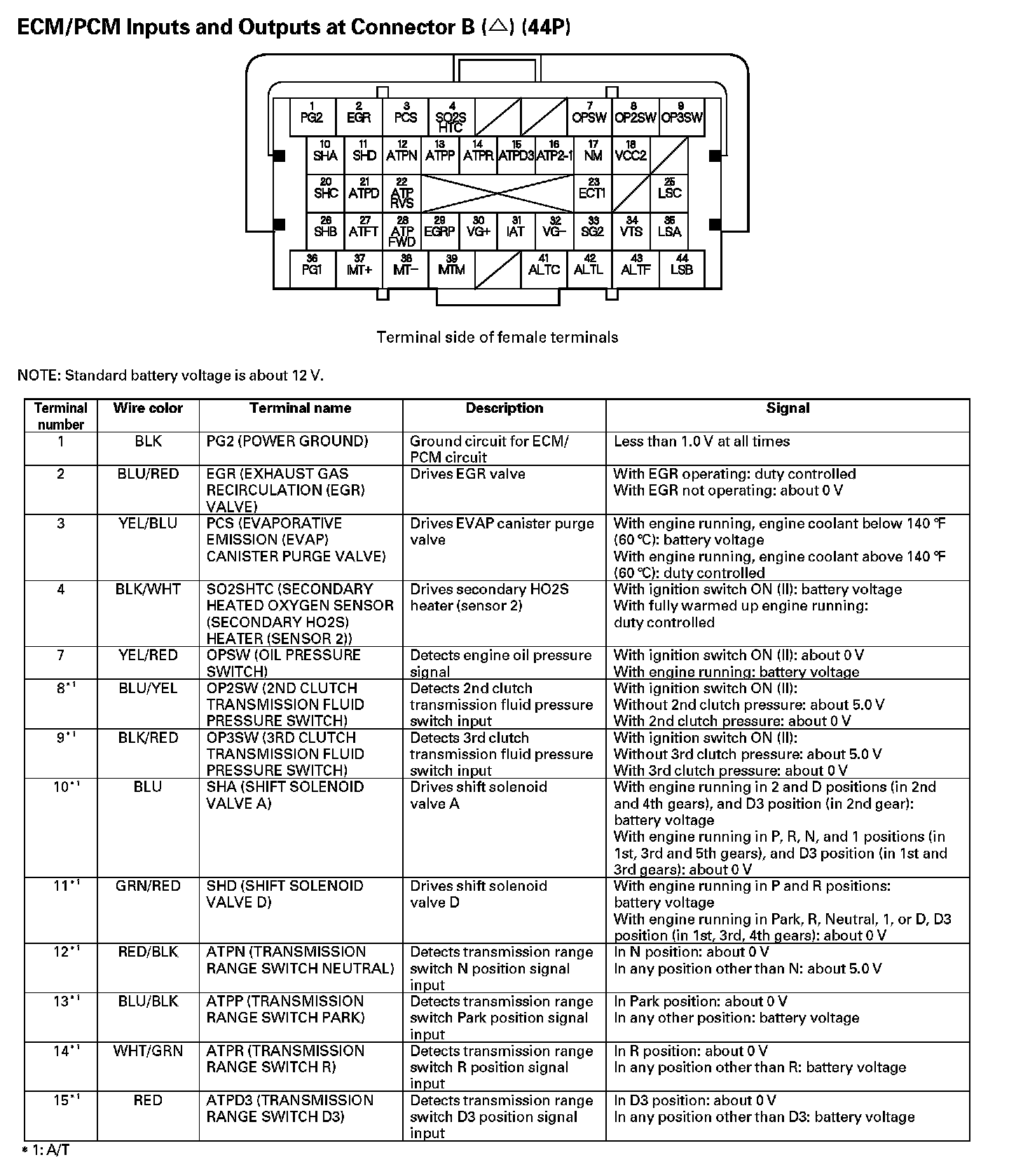

ECM/PCM Inputs And Outputs At Connector B (44P) (Part 3):

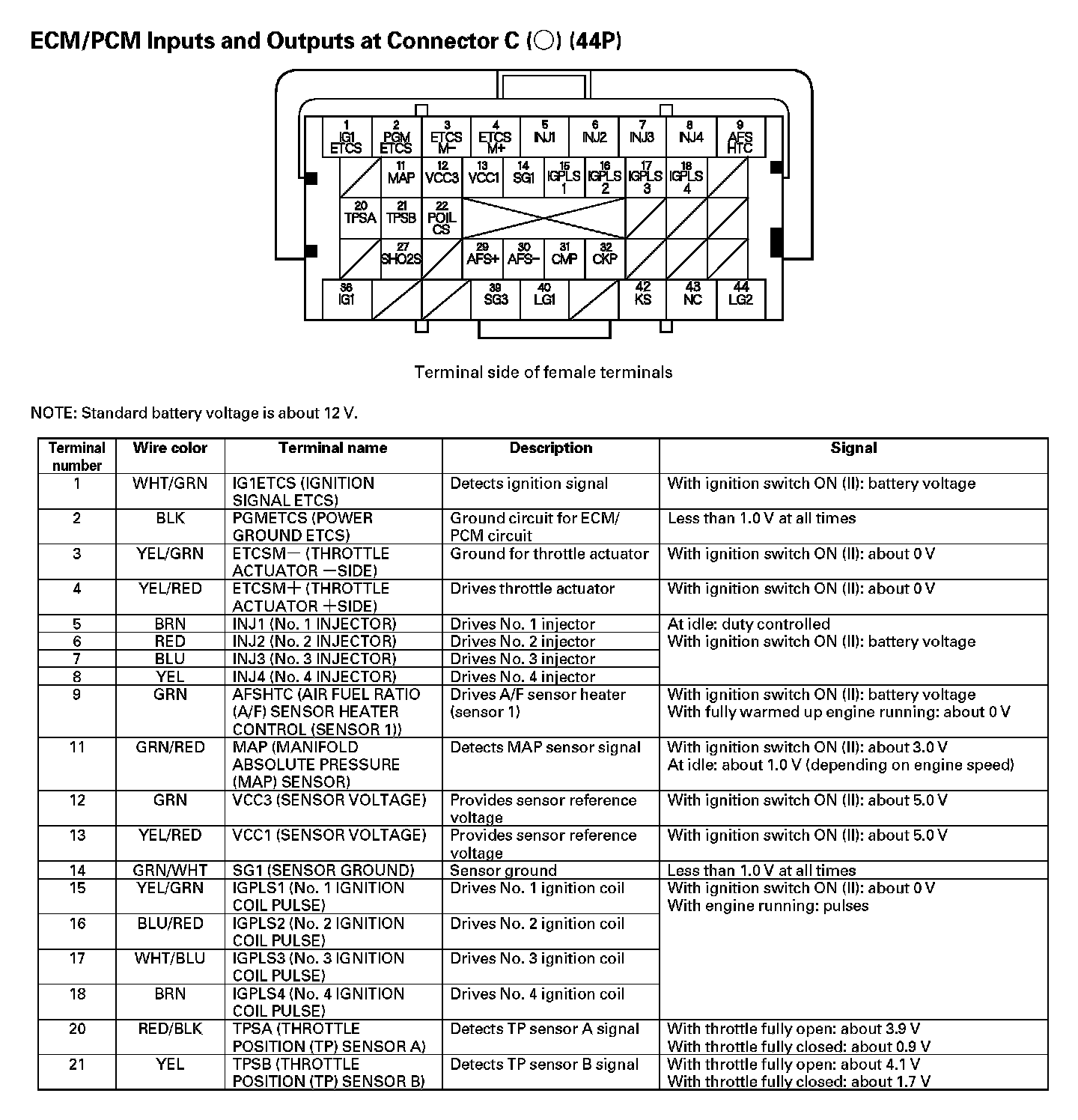

ECM/PCM Inputs And Outputs At Connector C (44P) (Part 1):

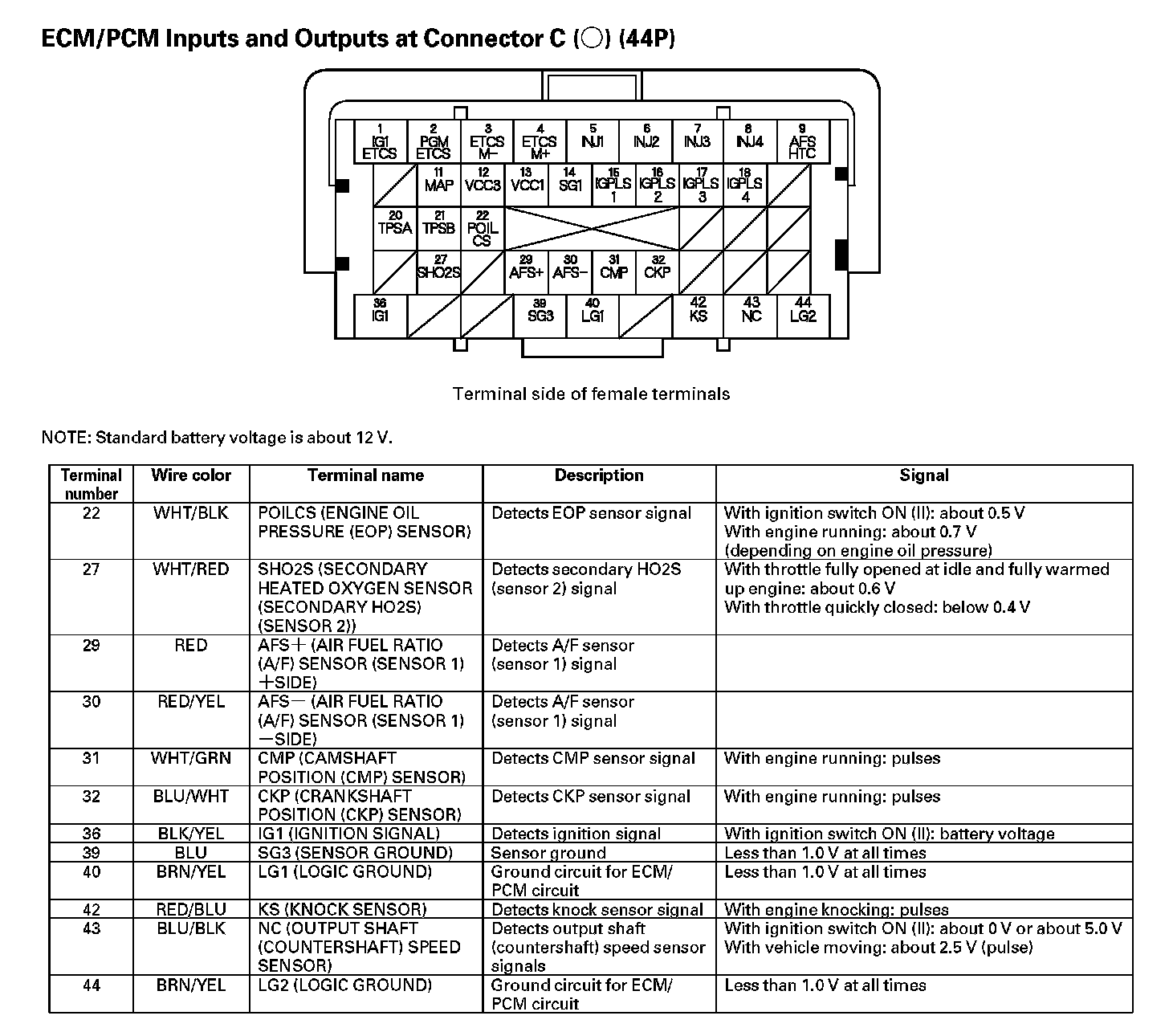

ECM/PCM Inputs And Outputs At Connector C (44P) (Part 2):
