Home >> Honda >> 2008 >> Civic L4-1.8L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Oxygen Sensor >> Locations >> Connector Locations

Connector Locations

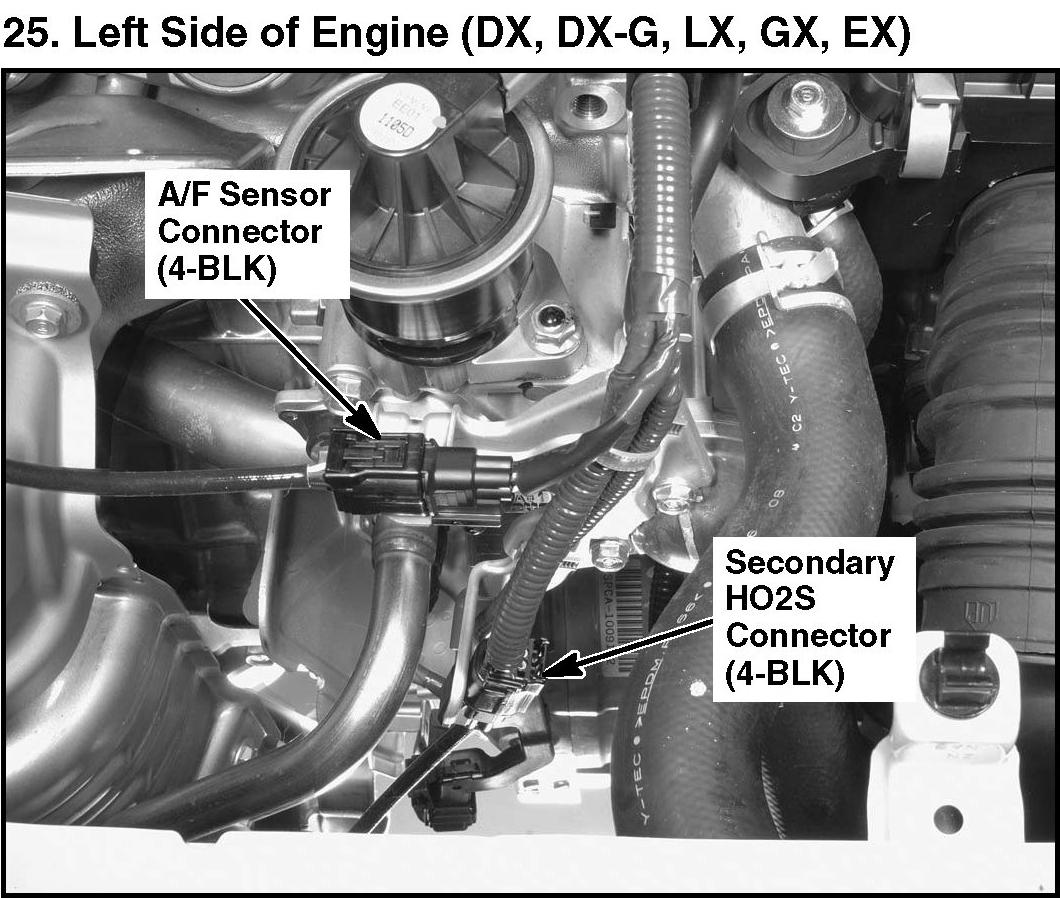

25. Left Side Of Engine (DX, DX-G, LX, GX, EX):
