Home >> Honda >> 2008 >> Civic L4-1.8L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Information Bus >> Locations

Information Bus: Locations

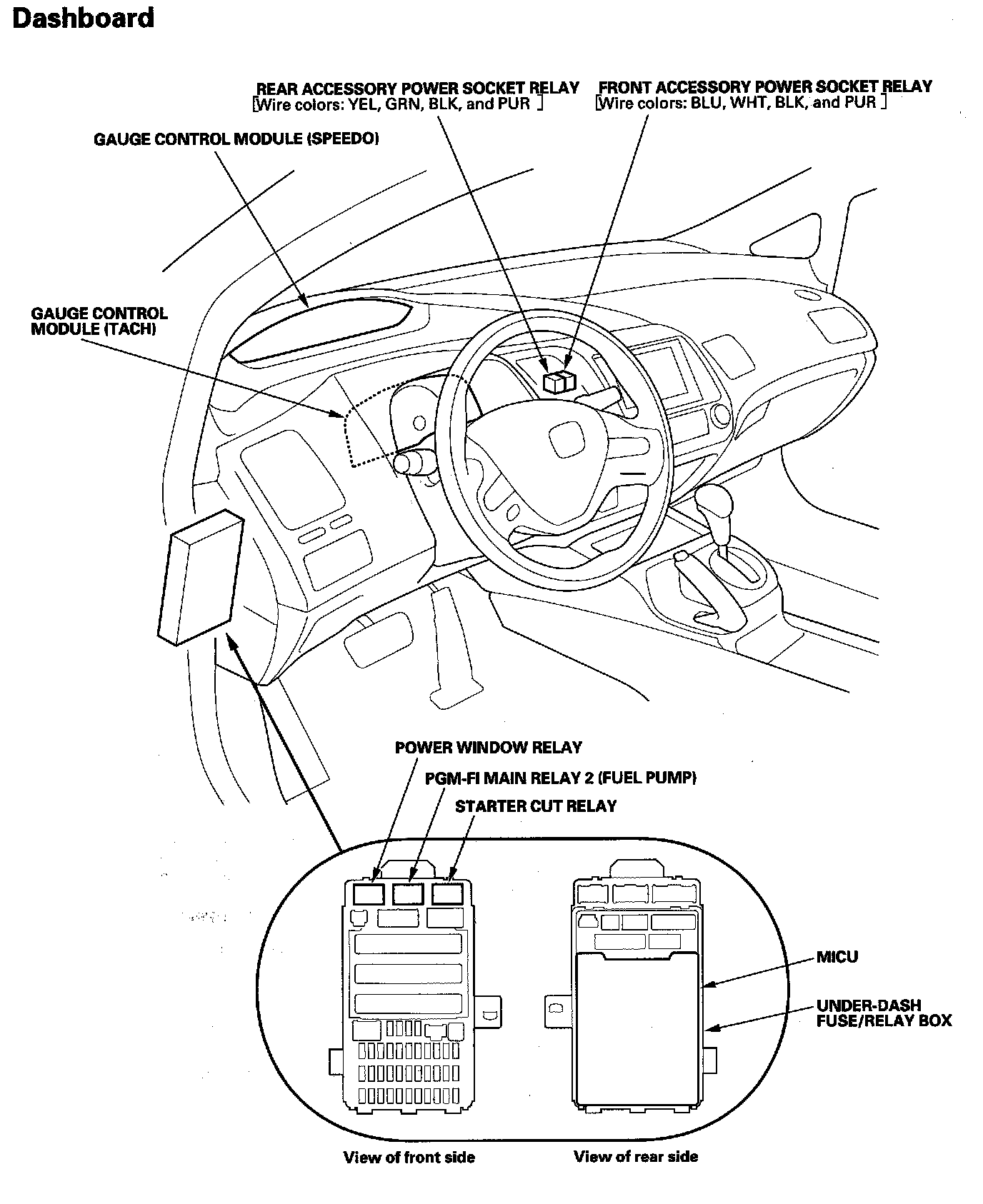

Relay And Control Unit Locations Dashboard:

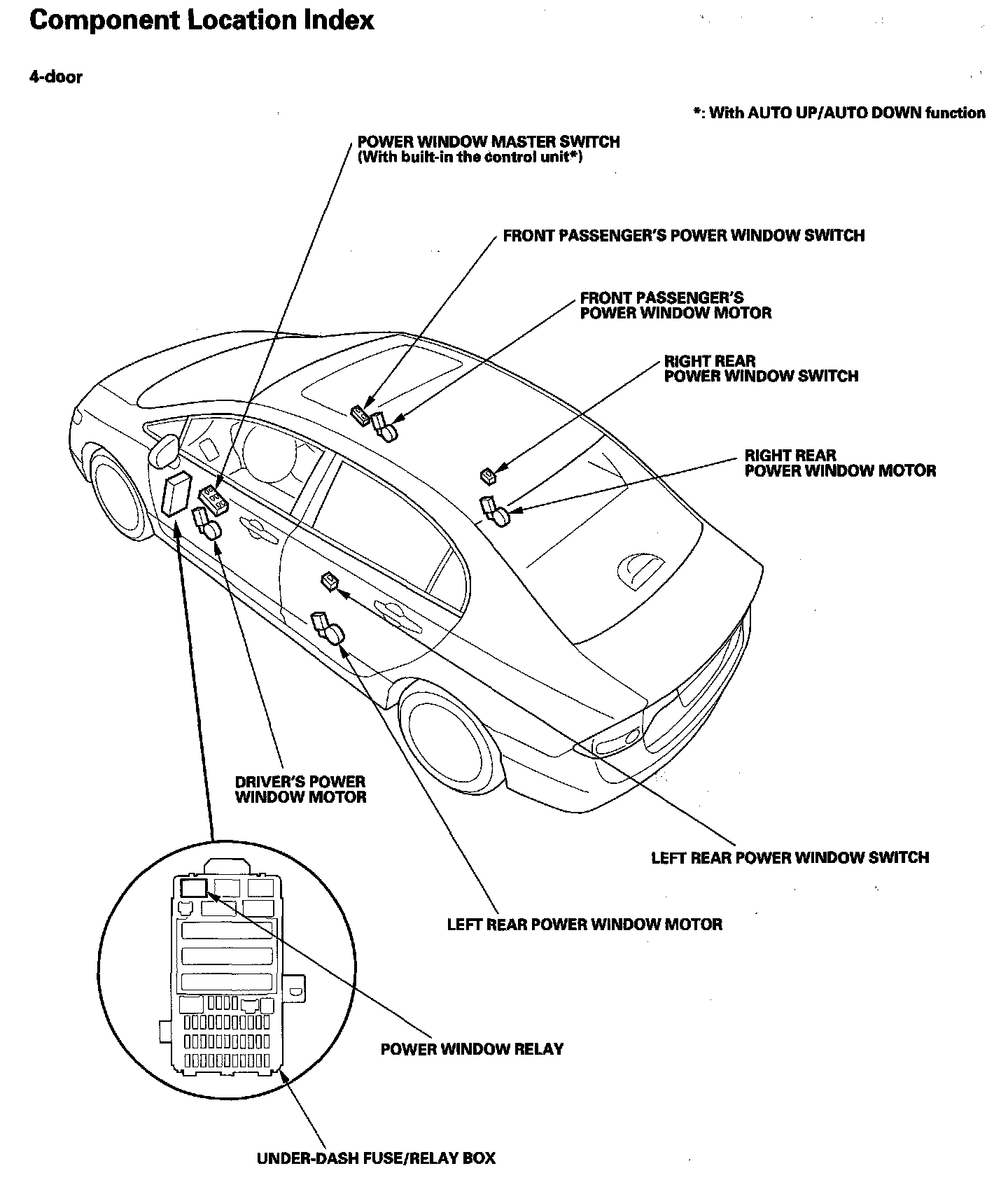

Power Windows Component Location Index:
