Fuse Block
>>
Application and ID
>>
Under-dash Fuse/Relay Box
Under-dash Fuse/Relay Box

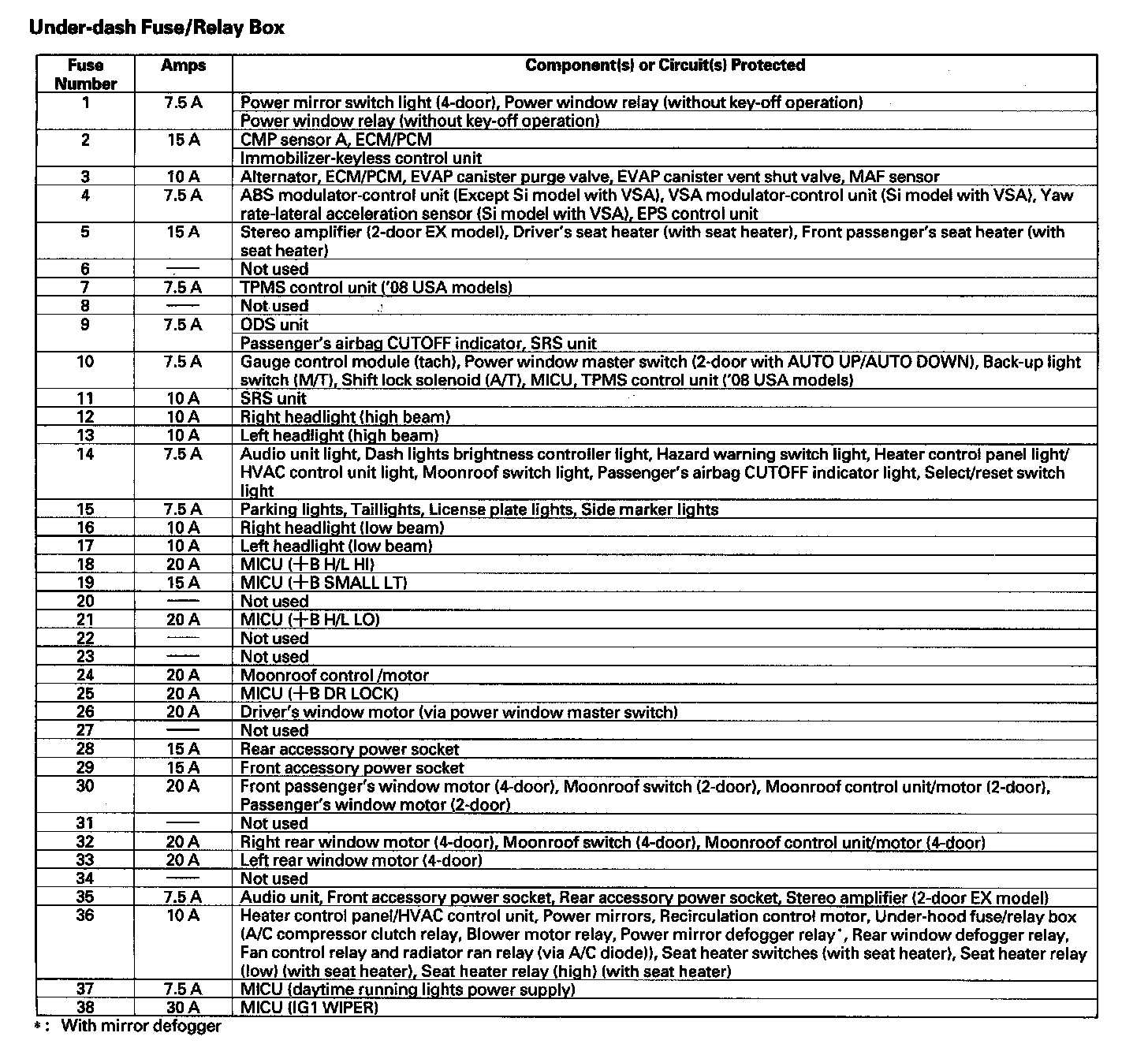

Under-dash Fuse/Relay Box Part 1:

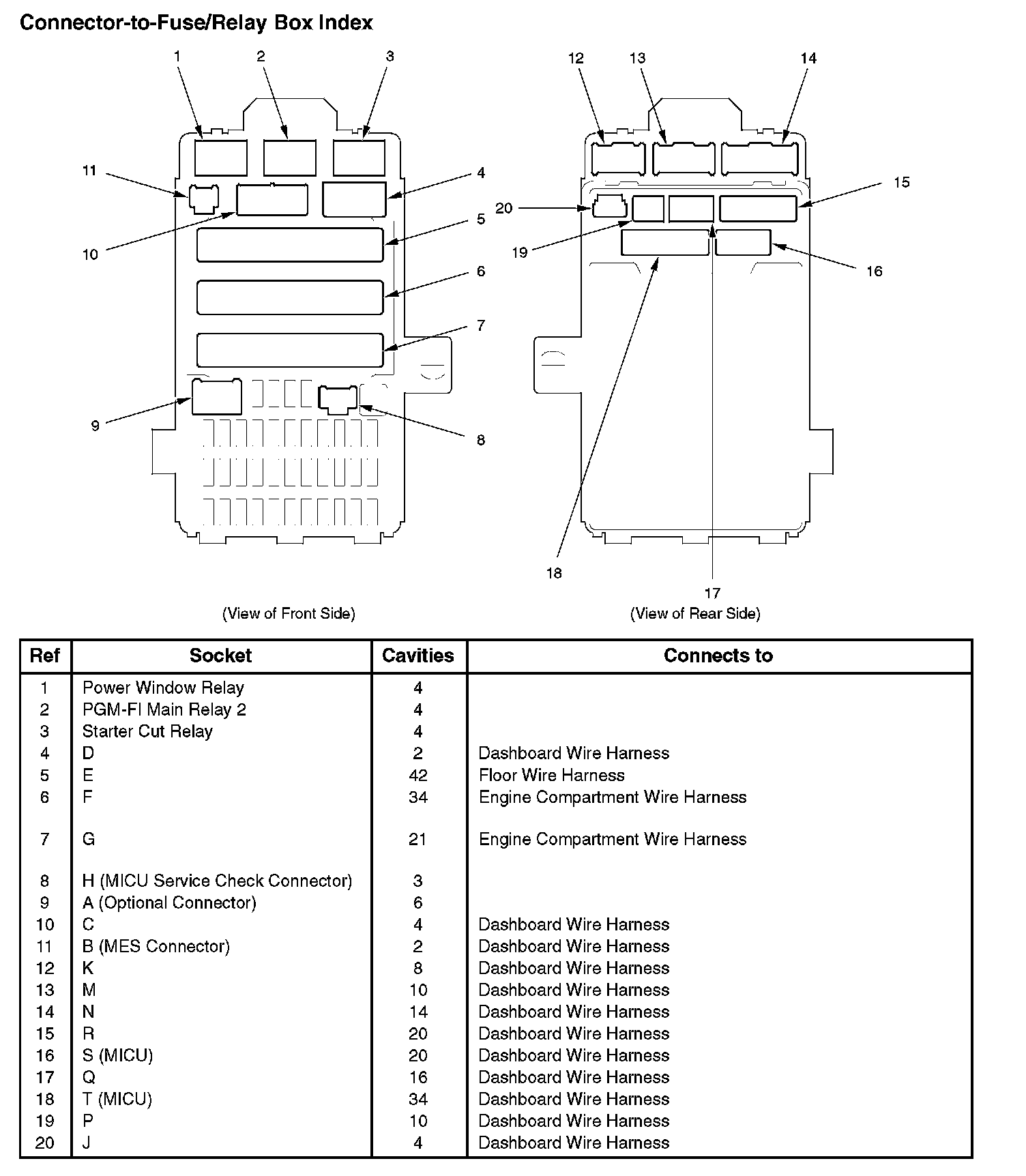

Under-dash Fuse/Relay Box Part 2:
Under-Dash Fuse/Relay Box:
