Tire Pressure Module
Tire Pressure Module
TPMS
Control Unit
Inputs and Outputs for 20P Connector

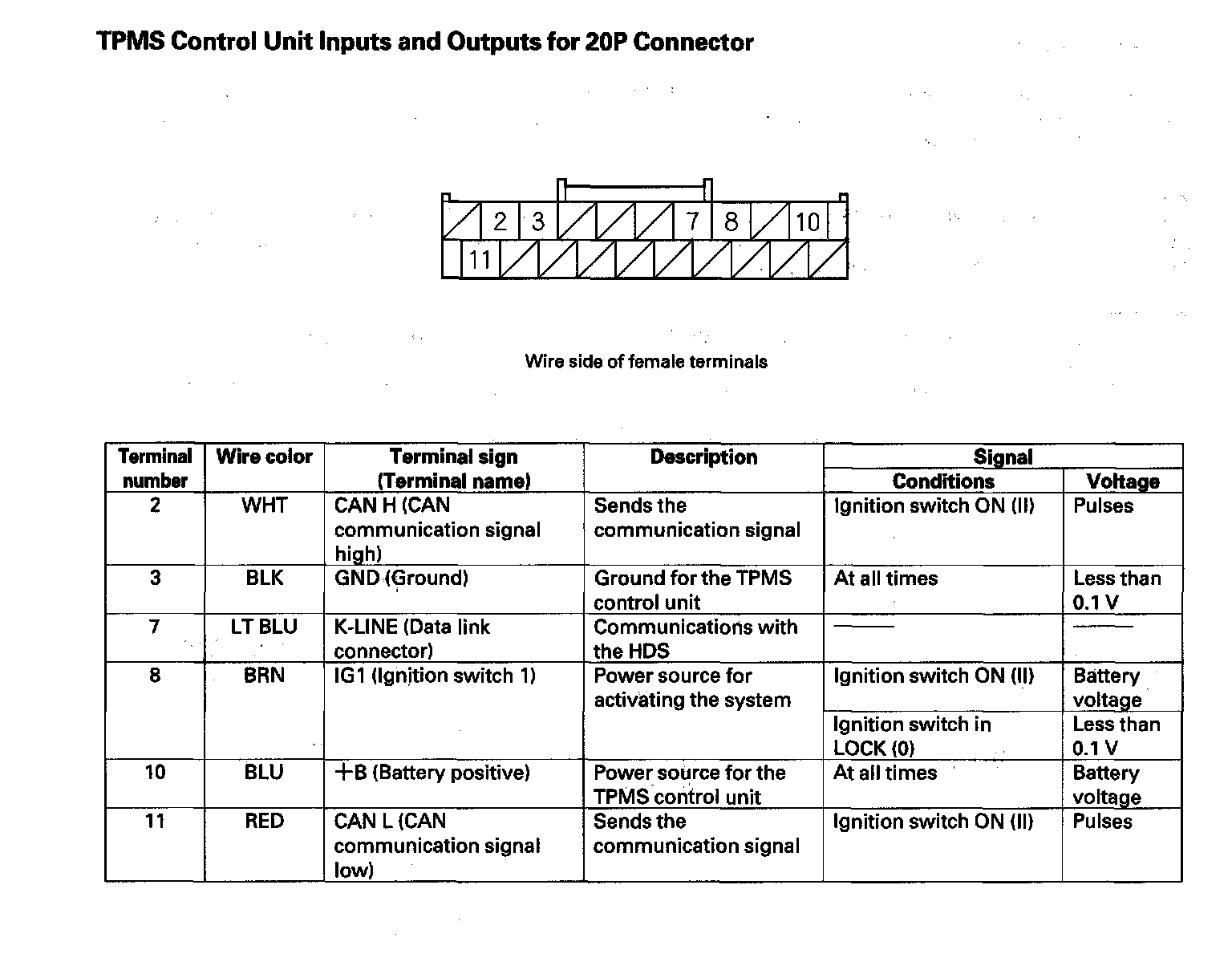

TPMS Control Unit Inputs And Outputs For 20P Connector:
