Navigation Module

235. Navigation Unit (USA):



235. Navigation Unit (USA):

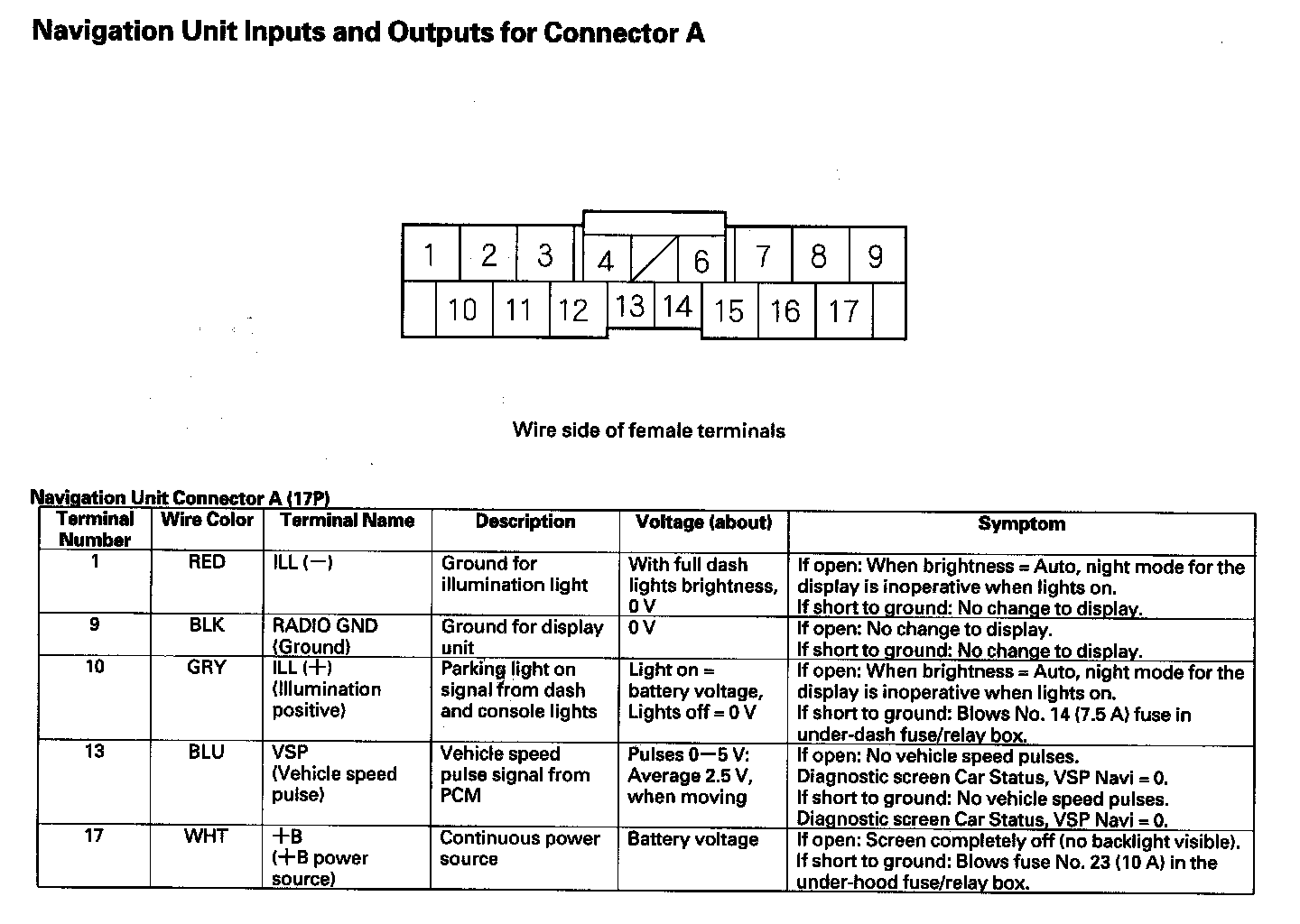

Navigation Unit Inputs And Outputs For Connector A:

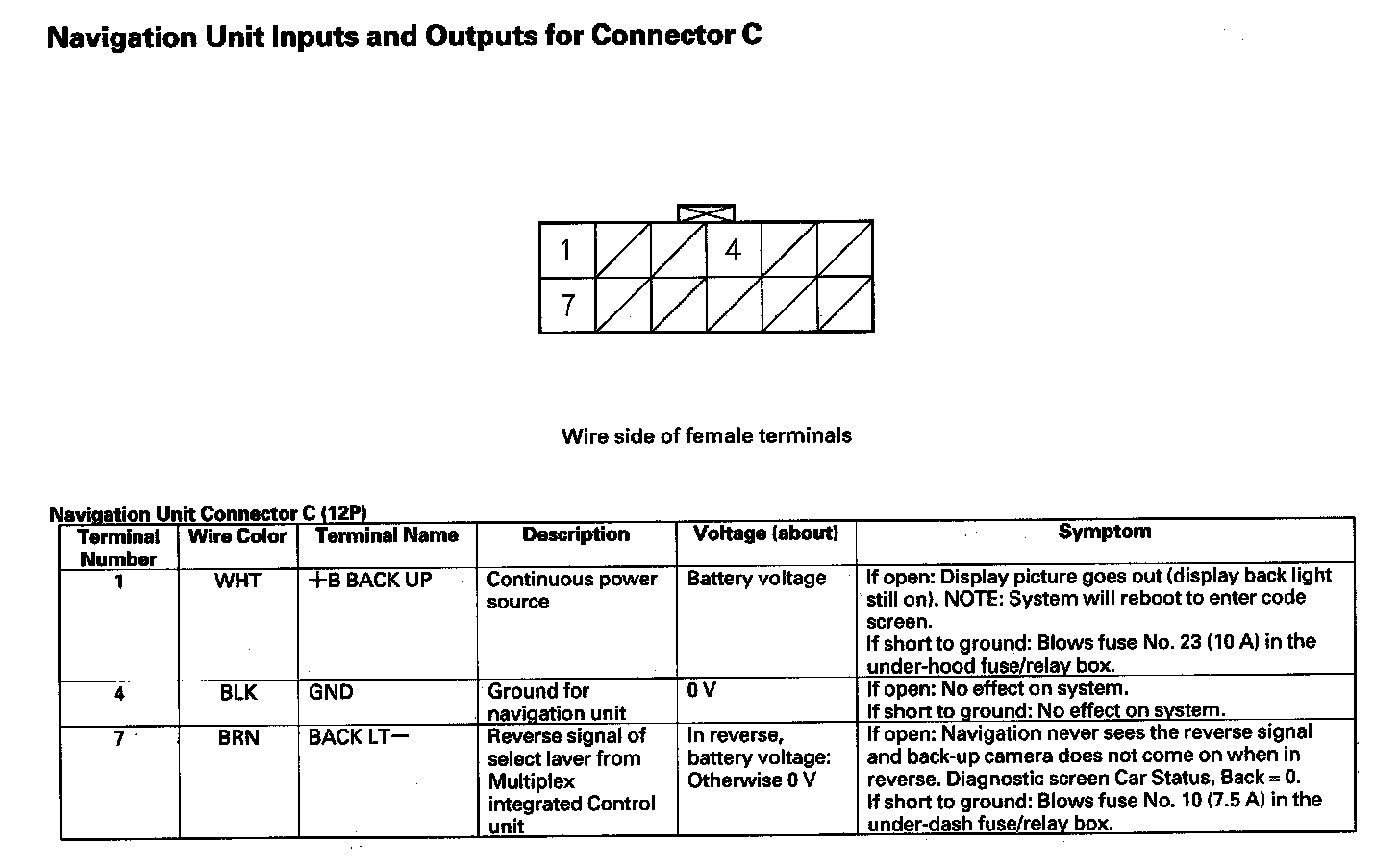

Navigation Unit Inputs And Outputs For Connector C:

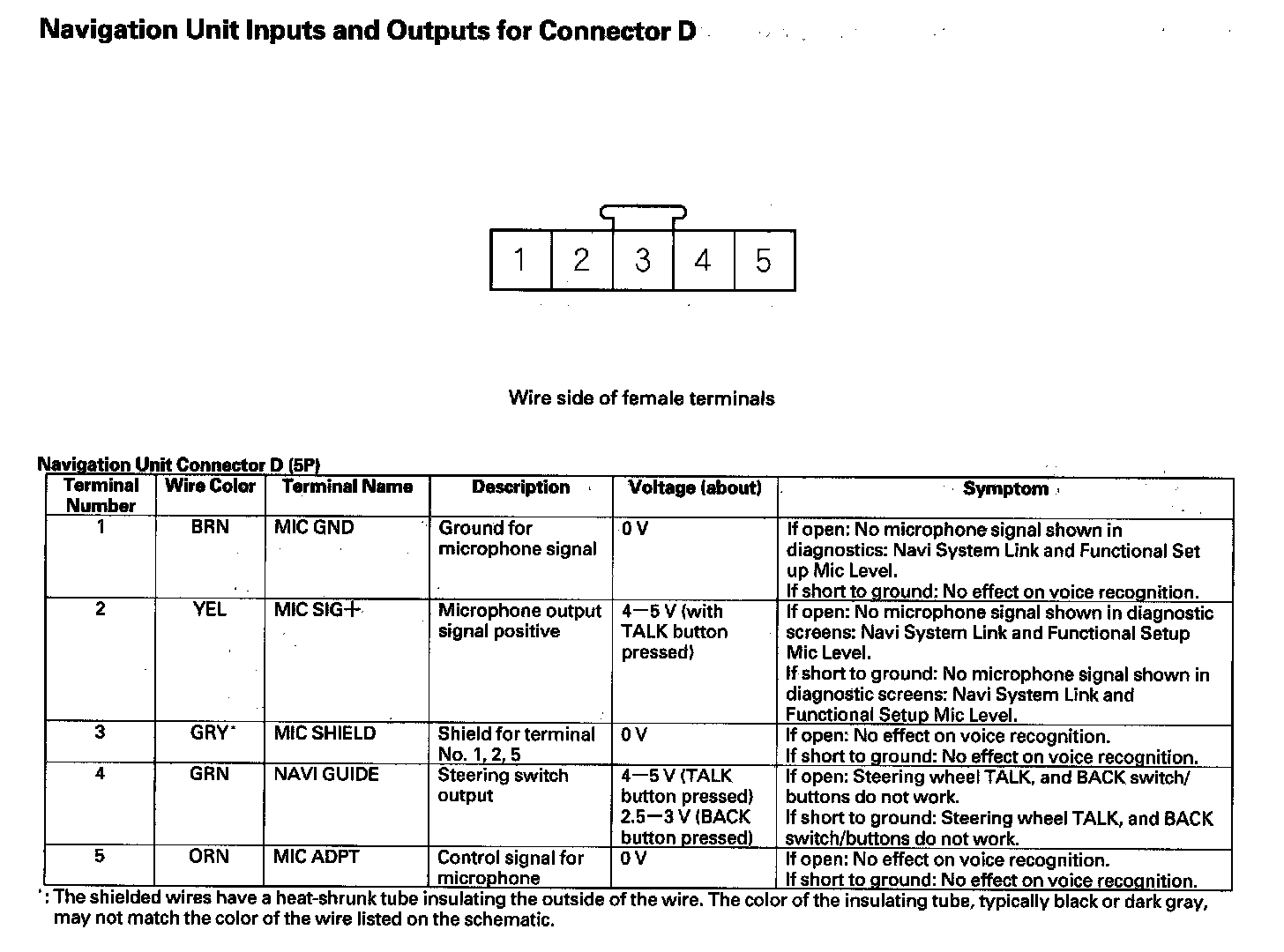

Navigation Unit Inputs And Outputs For Connector D:



Navigation Unit Inputs And Outputs For Connector F:



Navigation Unit Inputs And Outputs For Connector H:
