General Specifications

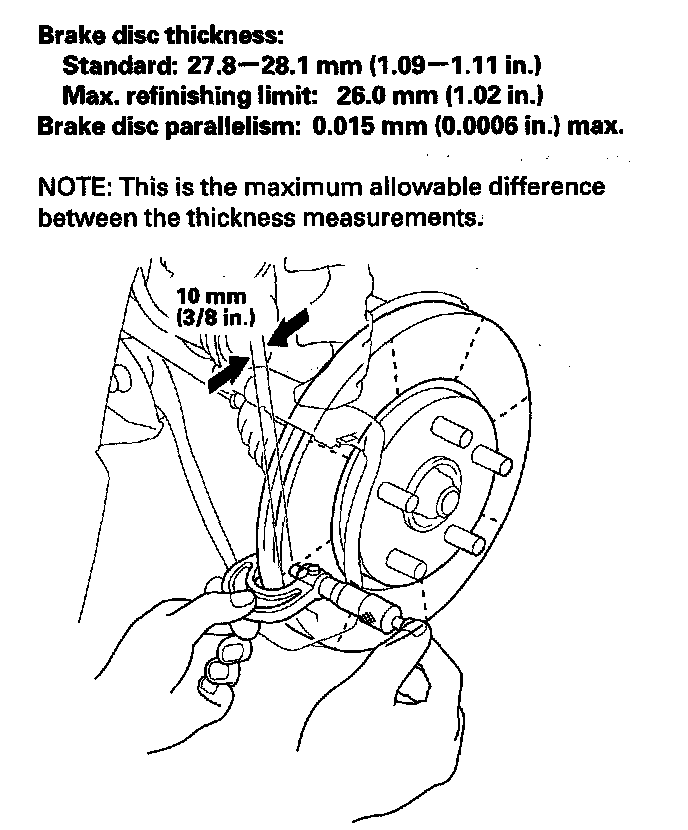

Front Brake Rotor/Disc





Brake disc runout:
Service limit 0.04 mm (0.0016 in.)

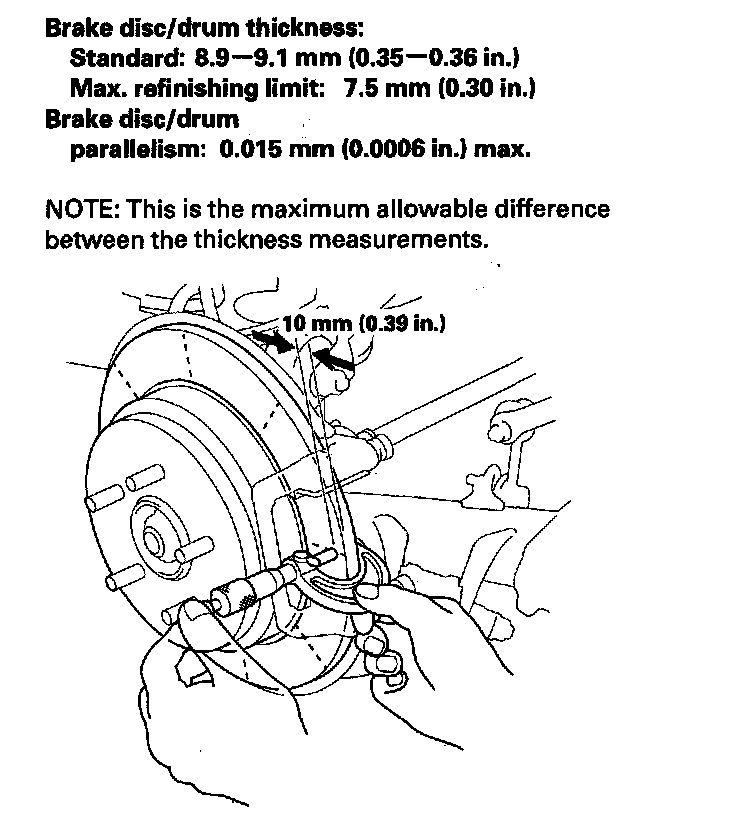

Rear Brake Rotor/Disc





Brake disc/drum runout:
Service limit 0.04 mm (0.0016 in.)
