Service Specifications

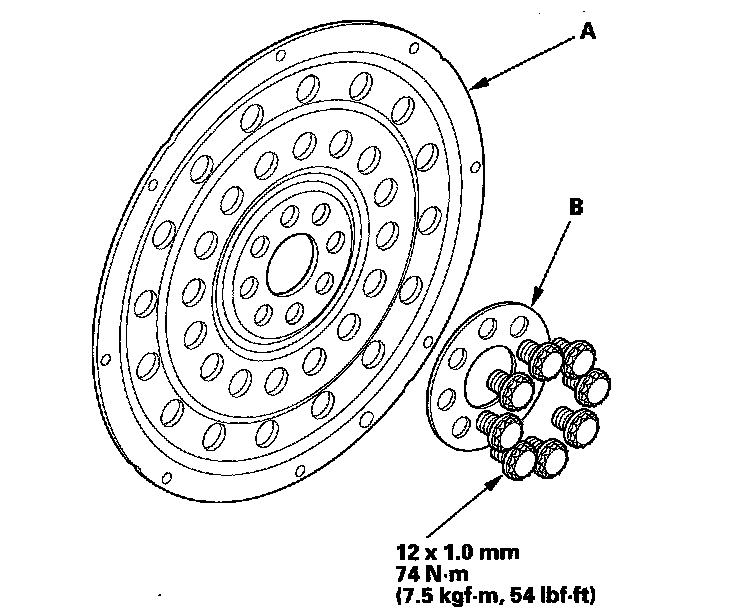

Drive Plate

Tighten the eight bolts in a crisscross pattern in at least two steps.

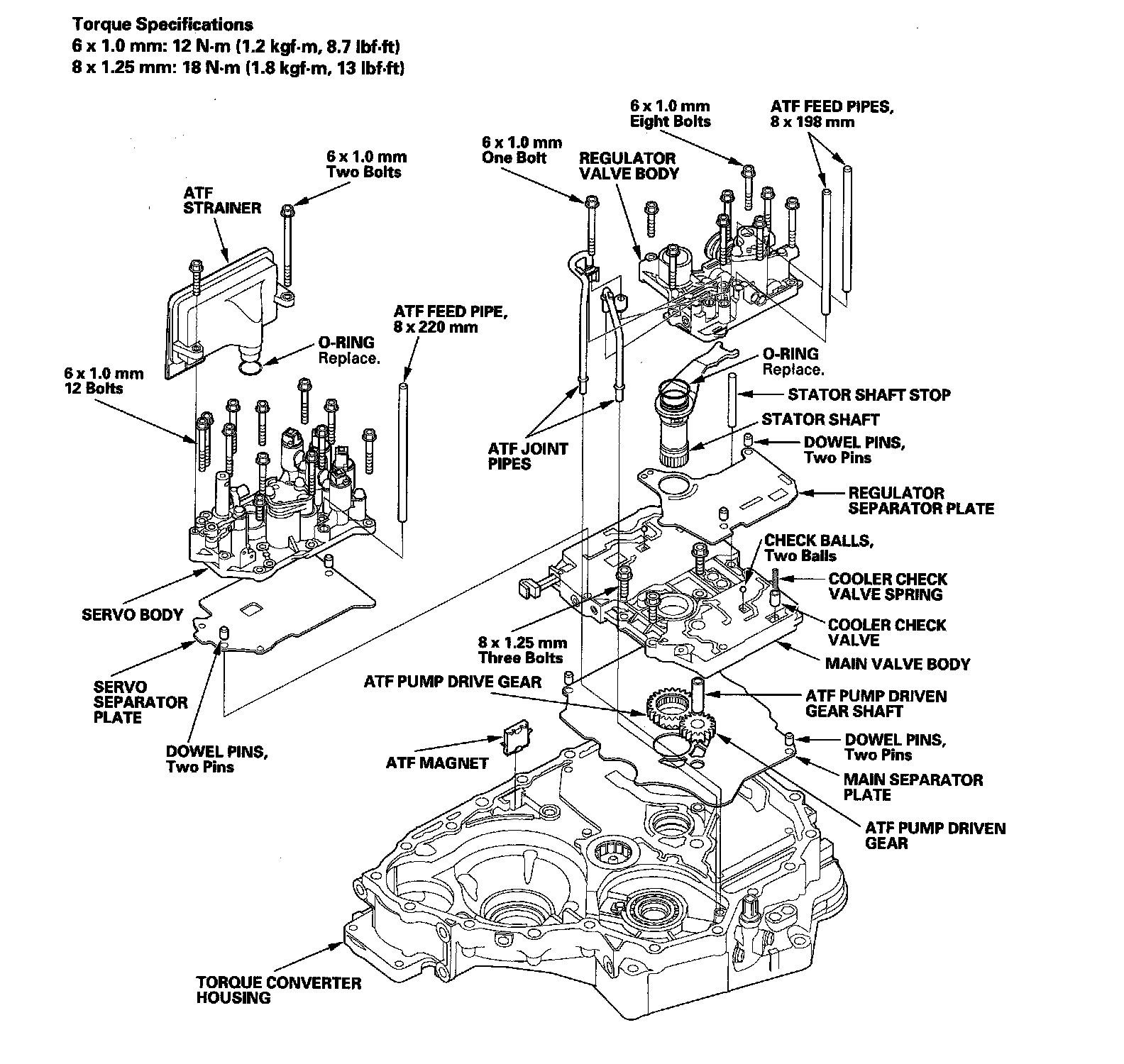

Valve Body

For information regarding Transmission Overhaul Specifications, please refer to Service and Repair, Procedures Procedures
