Overhaul Specifications

Flywheel





Torque the flywheel mounting bolts (B), in a crisscross pattern in several steps.

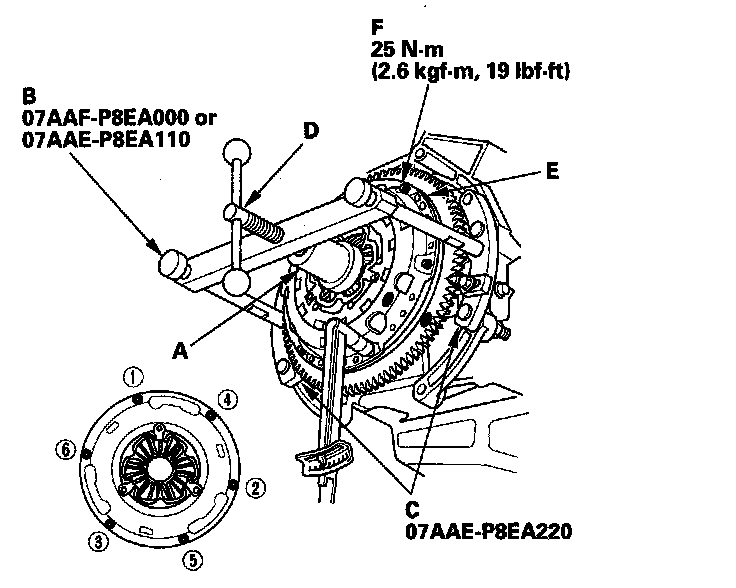

Pressure Plate





Tighten (180 degrees apart) the pressure plate mounting bolts (F) in the pattern as shown in several steps.


For information regarding Clutch Overhaul Specifications, please refer to Service and Repair, Service and Repair
