Ignition Coil: Service and Repair

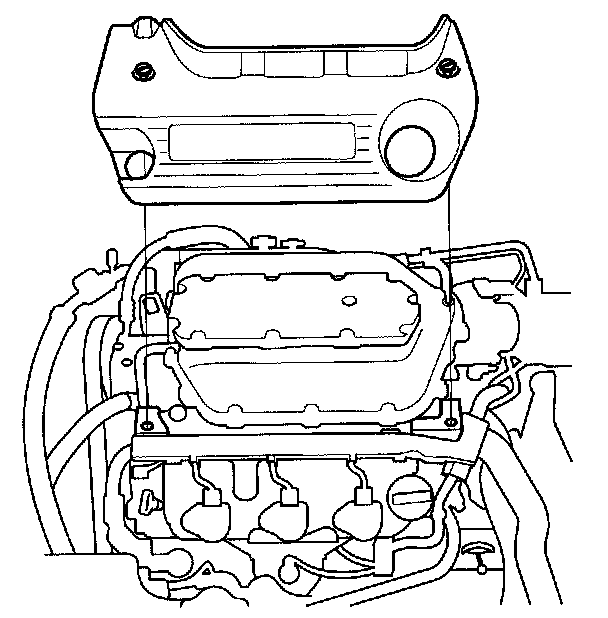

Ignition Coil Removal/Installation1. Remove the engine cover.

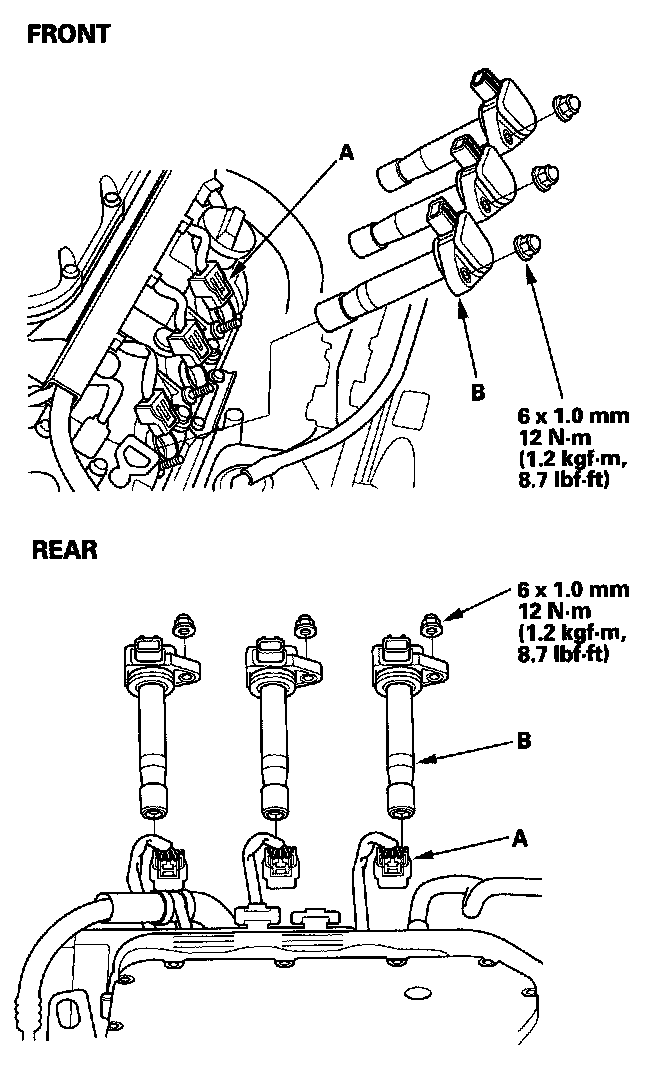

2. Disconnect the ignition coil connectors (A), then remove the ignition coils (B).
3. Install the ignition coils in the reverse order of removal.
1. Remove the engine cover.
2. Disconnect the ignition coil connectors (A), then remove the ignition coils (B).
3. Install the ignition coils in the reverse order of removal.
