Home >> Honda >> 2008 >> Accord L4-2.4L >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Automatic Transmission/Transaxle >> Valve Body

Valve Body

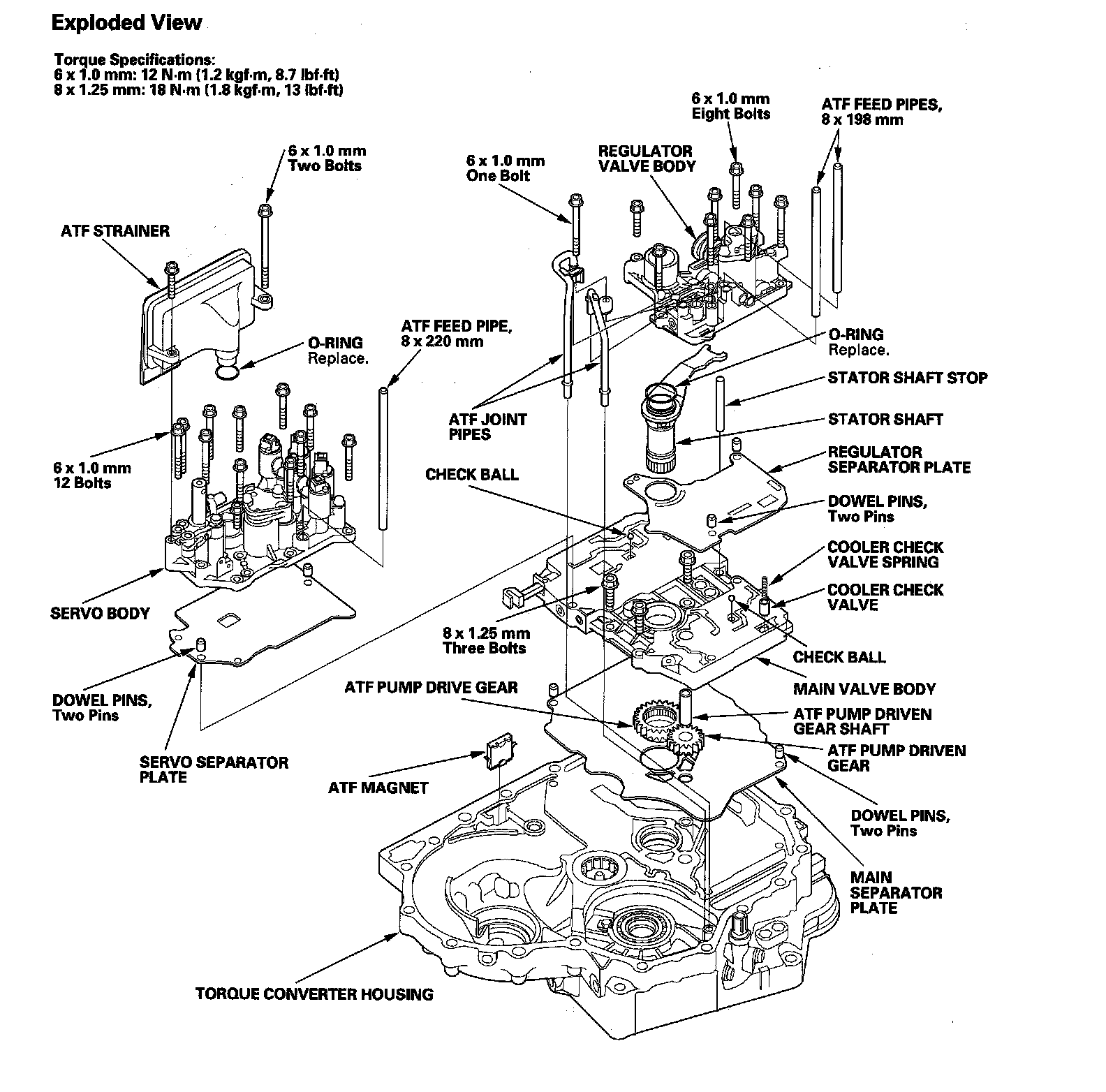

A/T Valve Body:
