Home >> Honda >> 2007 >> S2000 L4-2.2L >> Repair and Diagnosis >> Windows and Glass >> Windows >> Power Window Motor >> Locations >> Connector Locations

Connector Locations

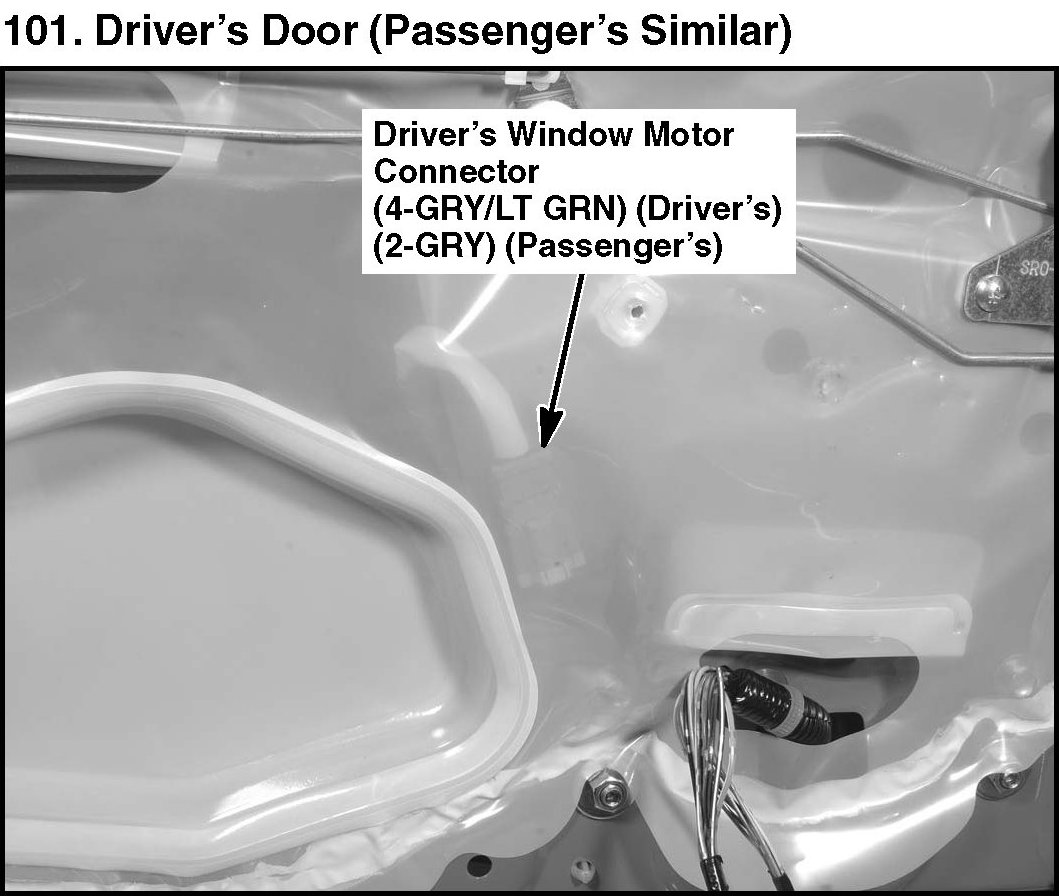

101. Driver's Door (Passenger's Similar):
