Refueling Control Valve: Service and Repair

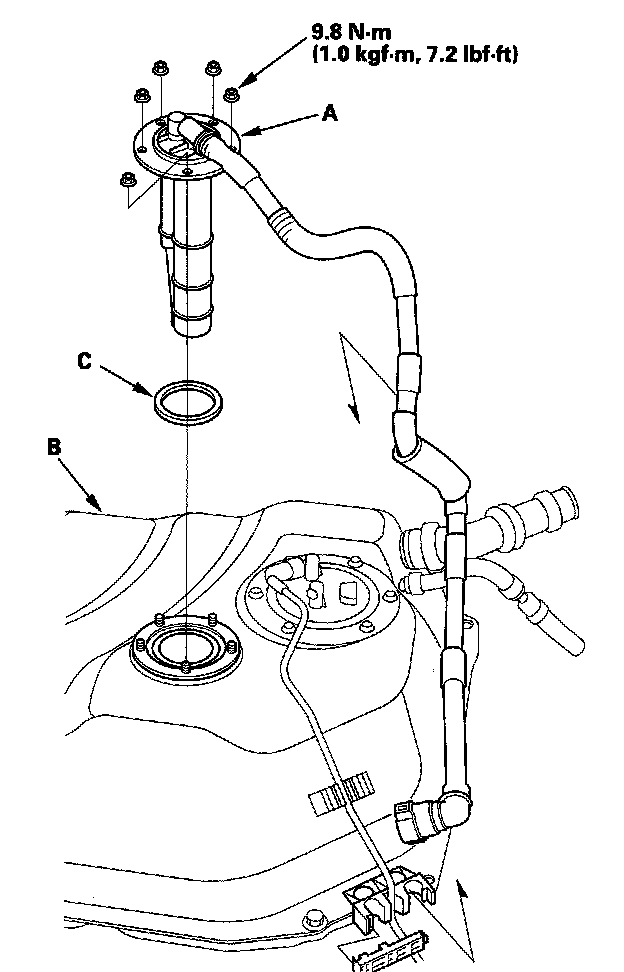

Fuel Tank Vapor Control Float Replacement

1. Remove the fuel tank.




2. Remove the fuel tank vapor control float (A) from the fuel tank (B).
3. Install the parts in the reverse order of removal with a new packing (C).
