Home >> Honda >> 2007 >> S2000 L4-2.2L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> View 176-188 >> 179

View 176-188: 179

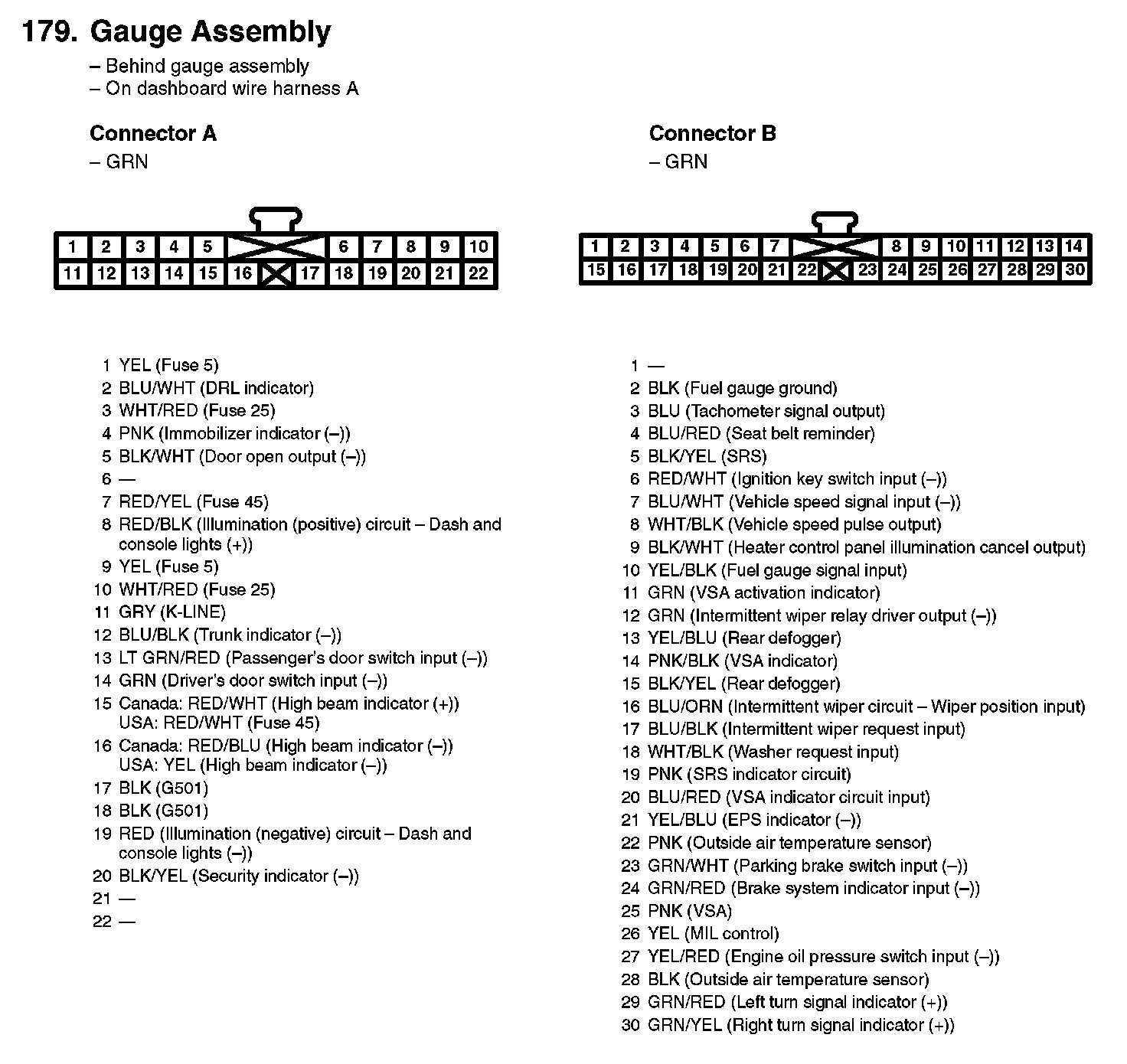

179. Gauge Assembly:
