Air Bag Control Module: Locations

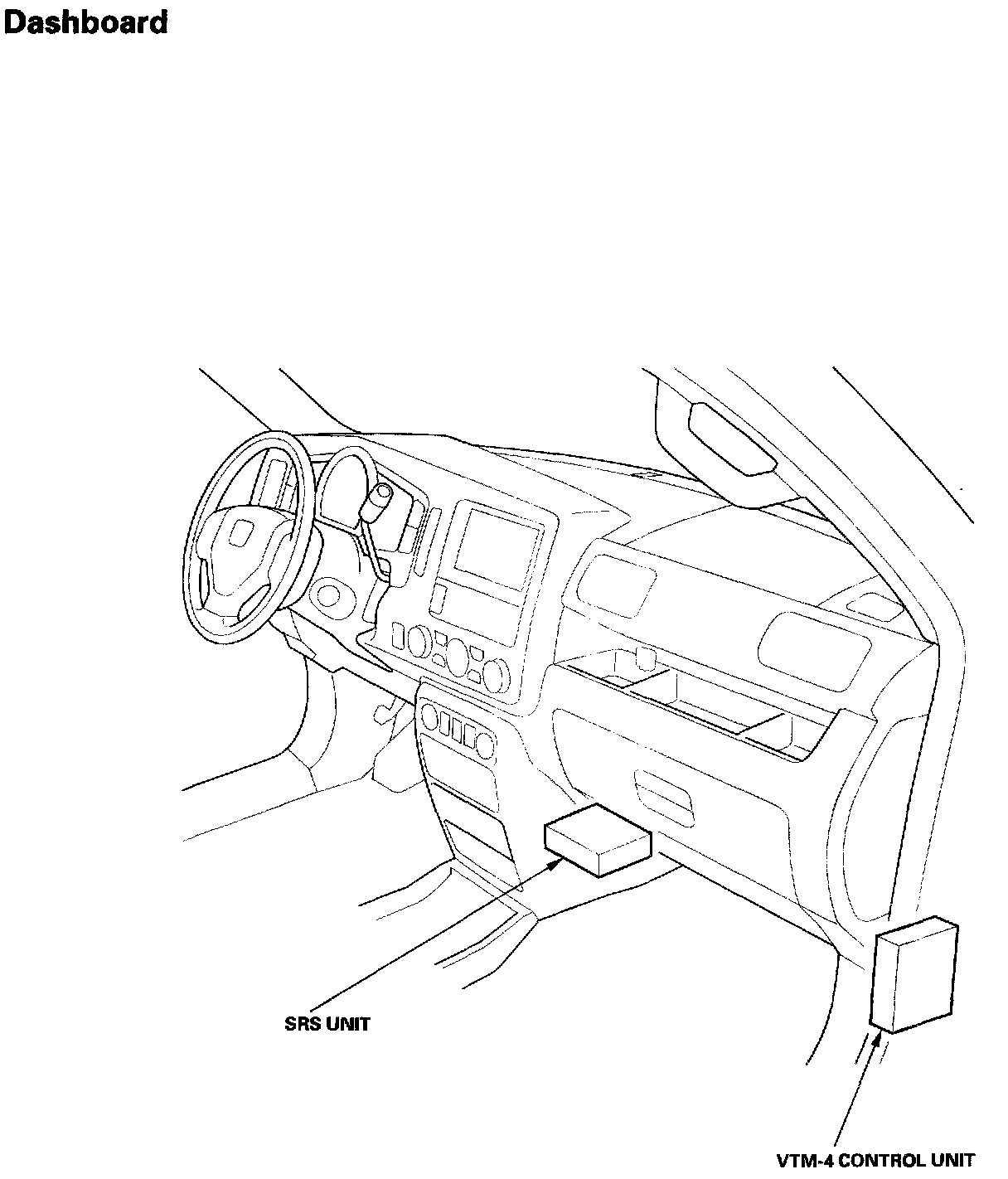

Relay And Control Unit Locations Dashboard:



Relays And Control Unit Locations Seat:

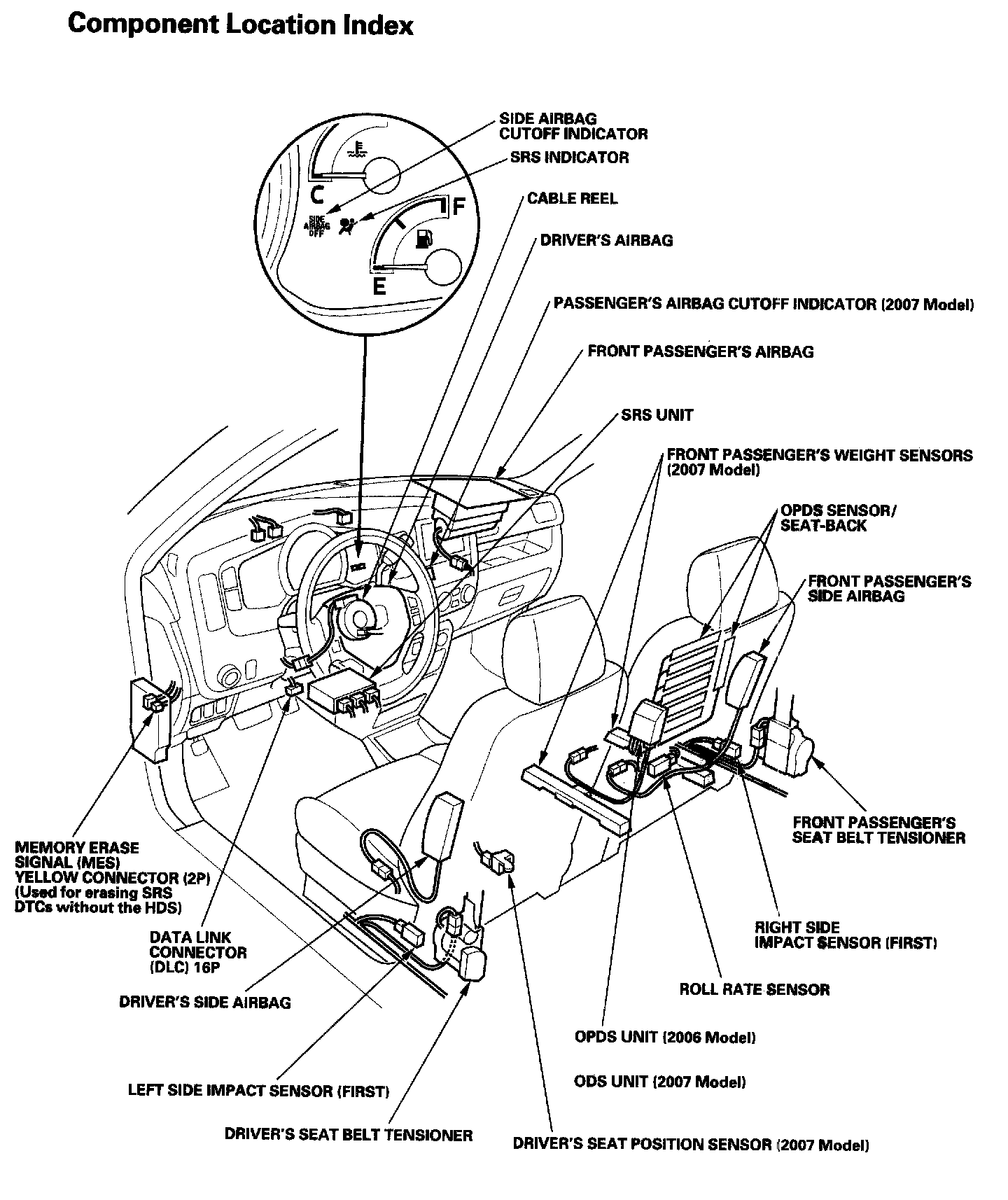

SRS Component Location Index:

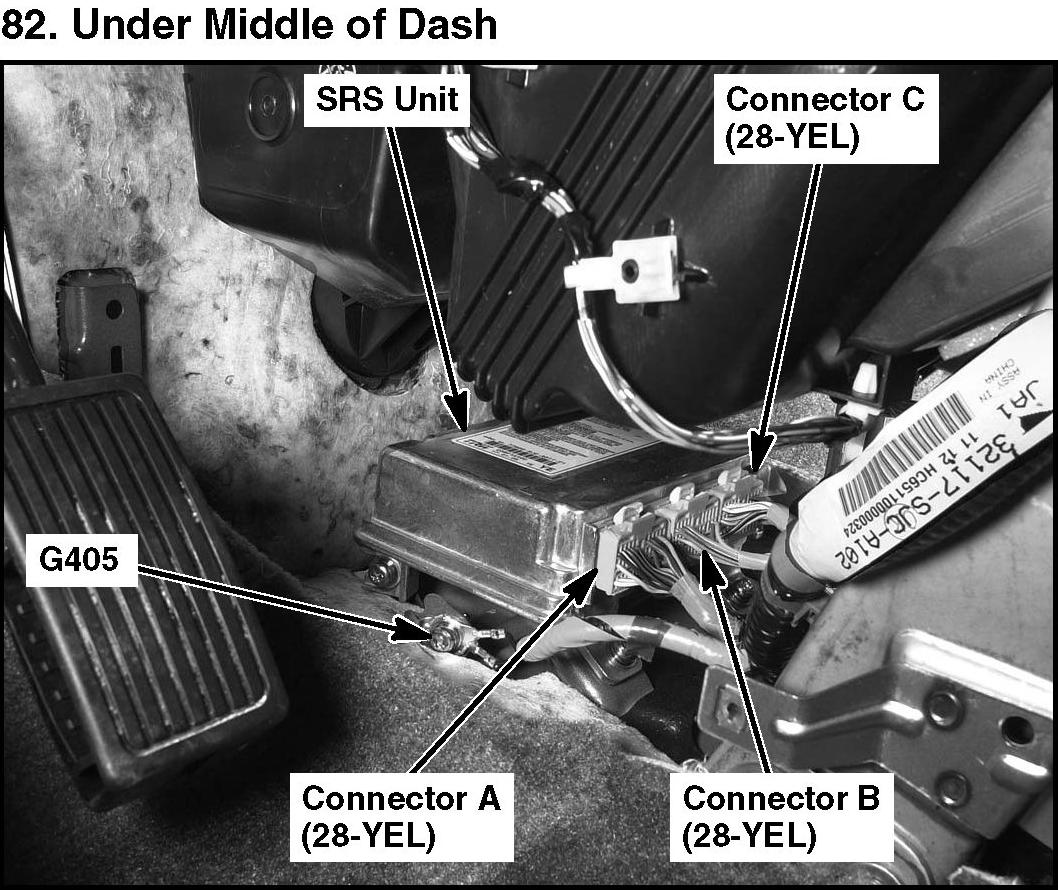

82. Under Middle Of Dash:



203. Left Side Of Front Passenger's Seat Back:
