PCM Circuit Diagrams

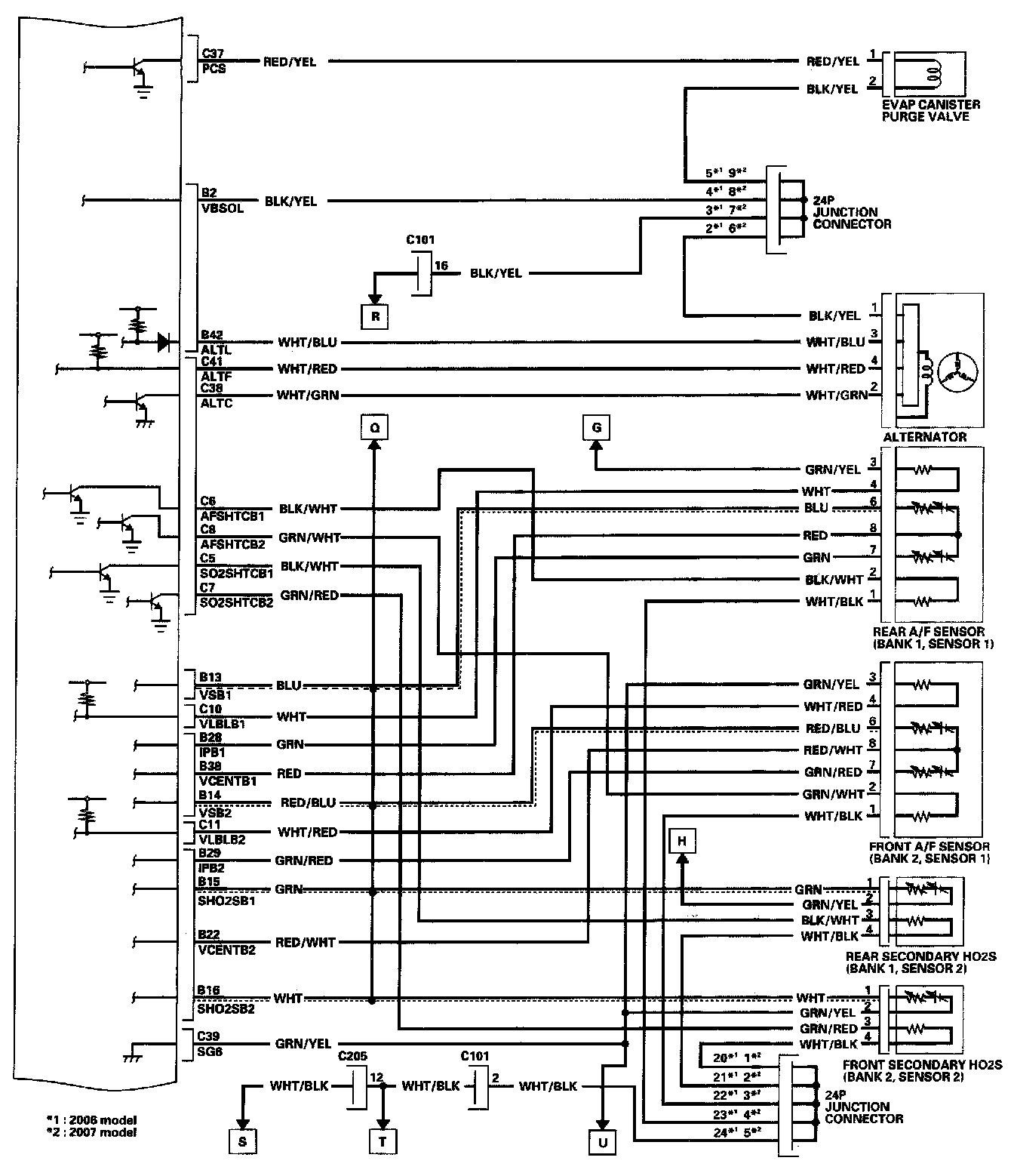

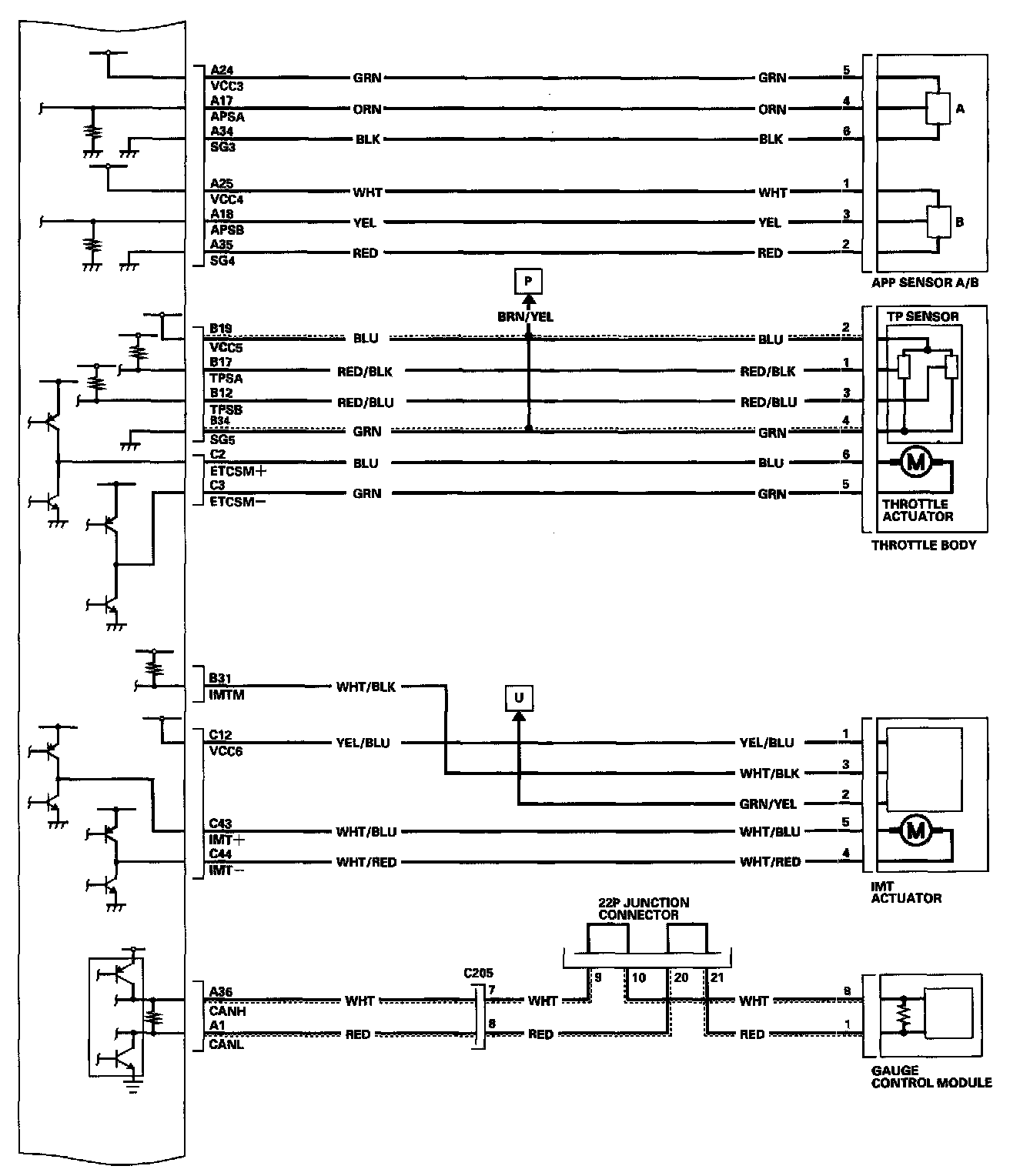

PCM Circuit Diagram Part 1:

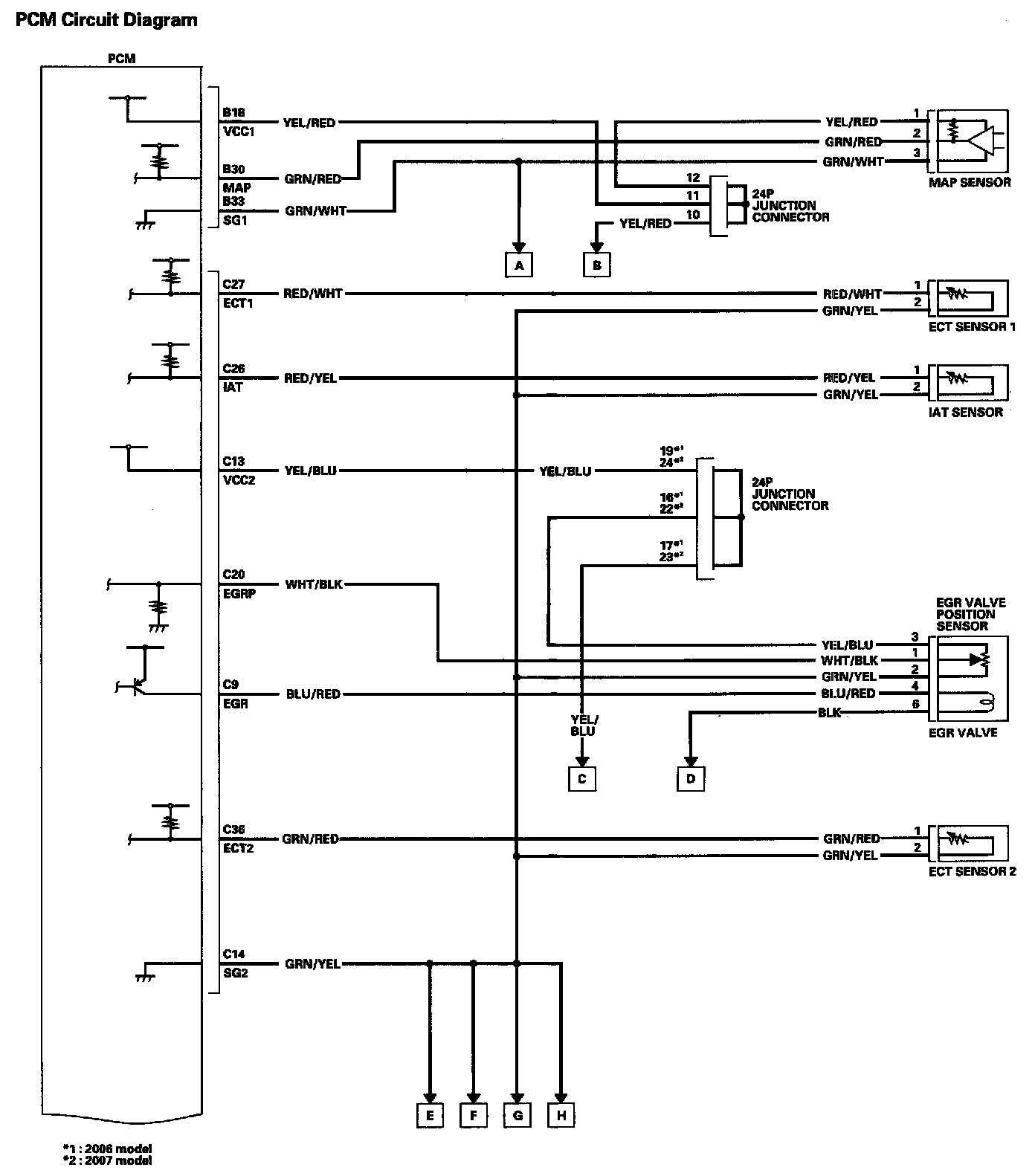

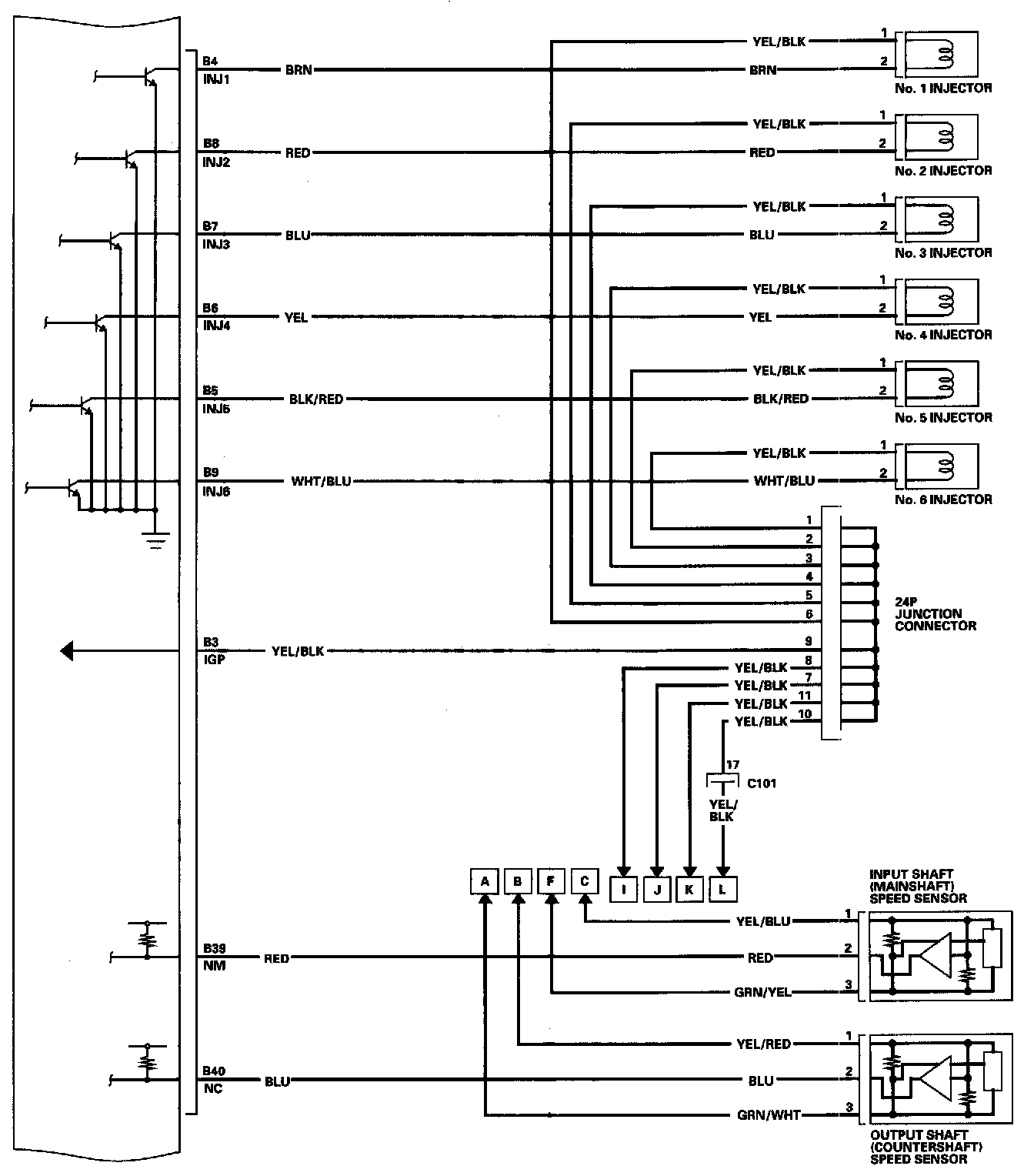

PCM Circuit Diagram Part 2:

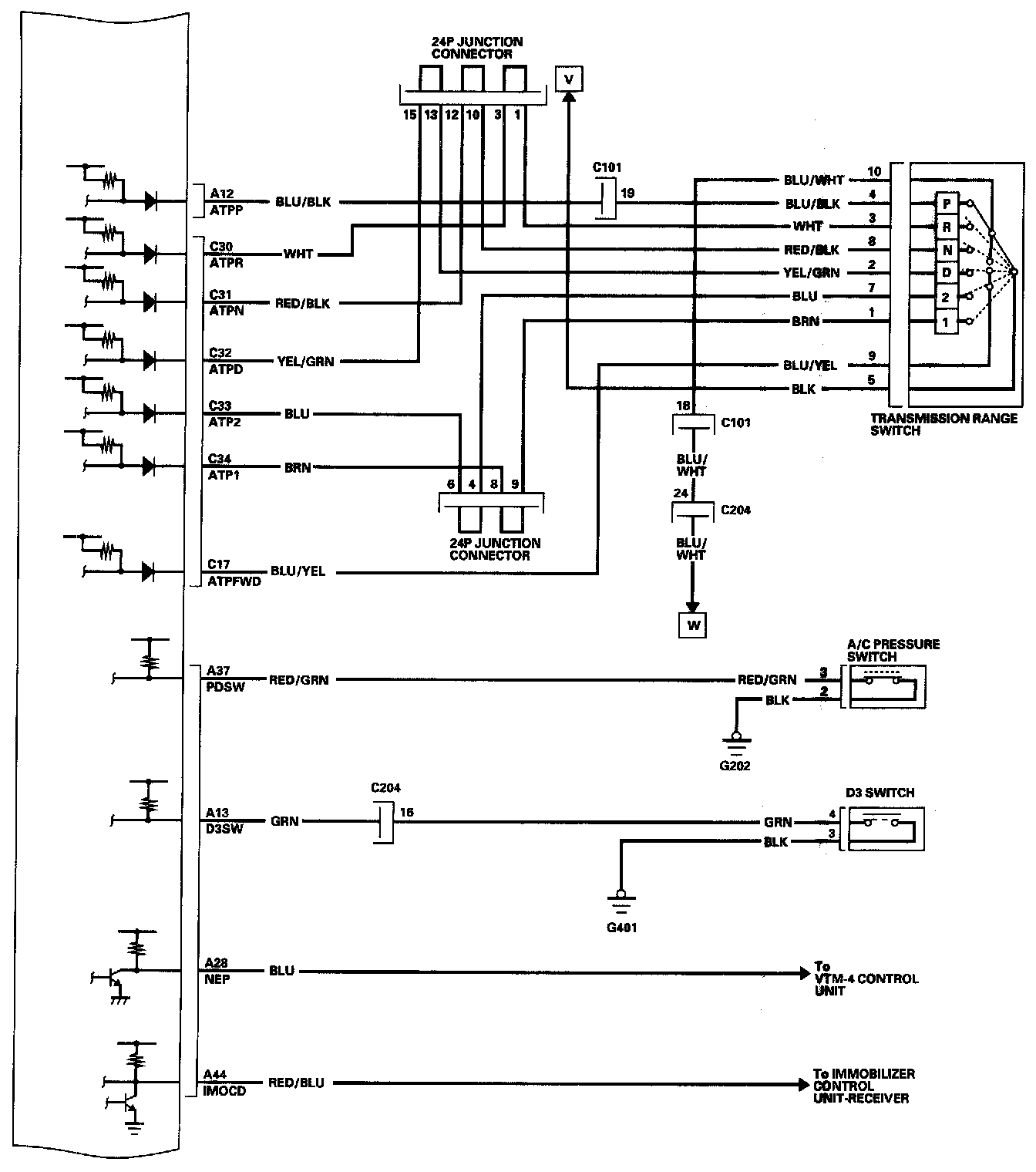

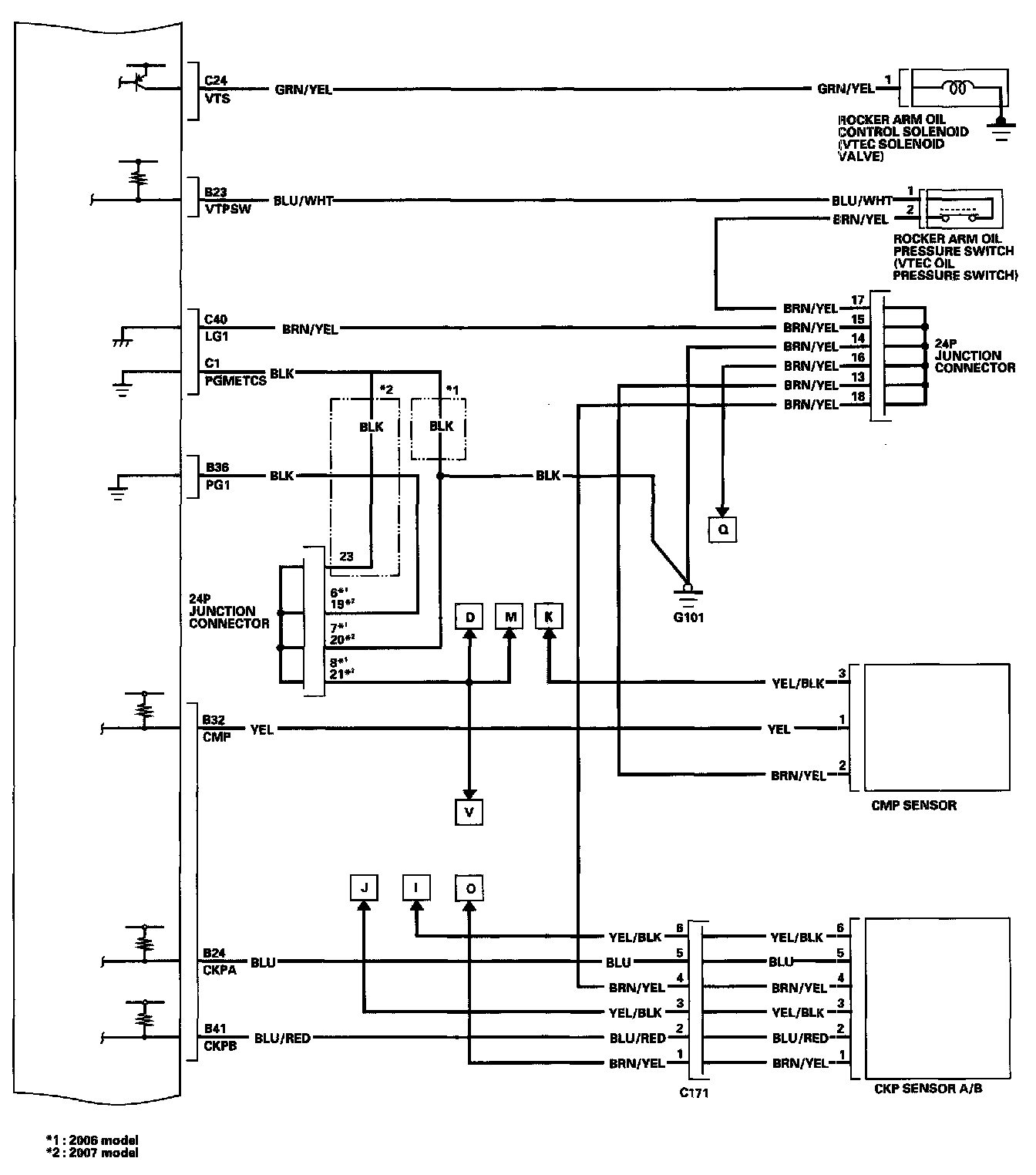

PCM Circuit Diagram Part 3:

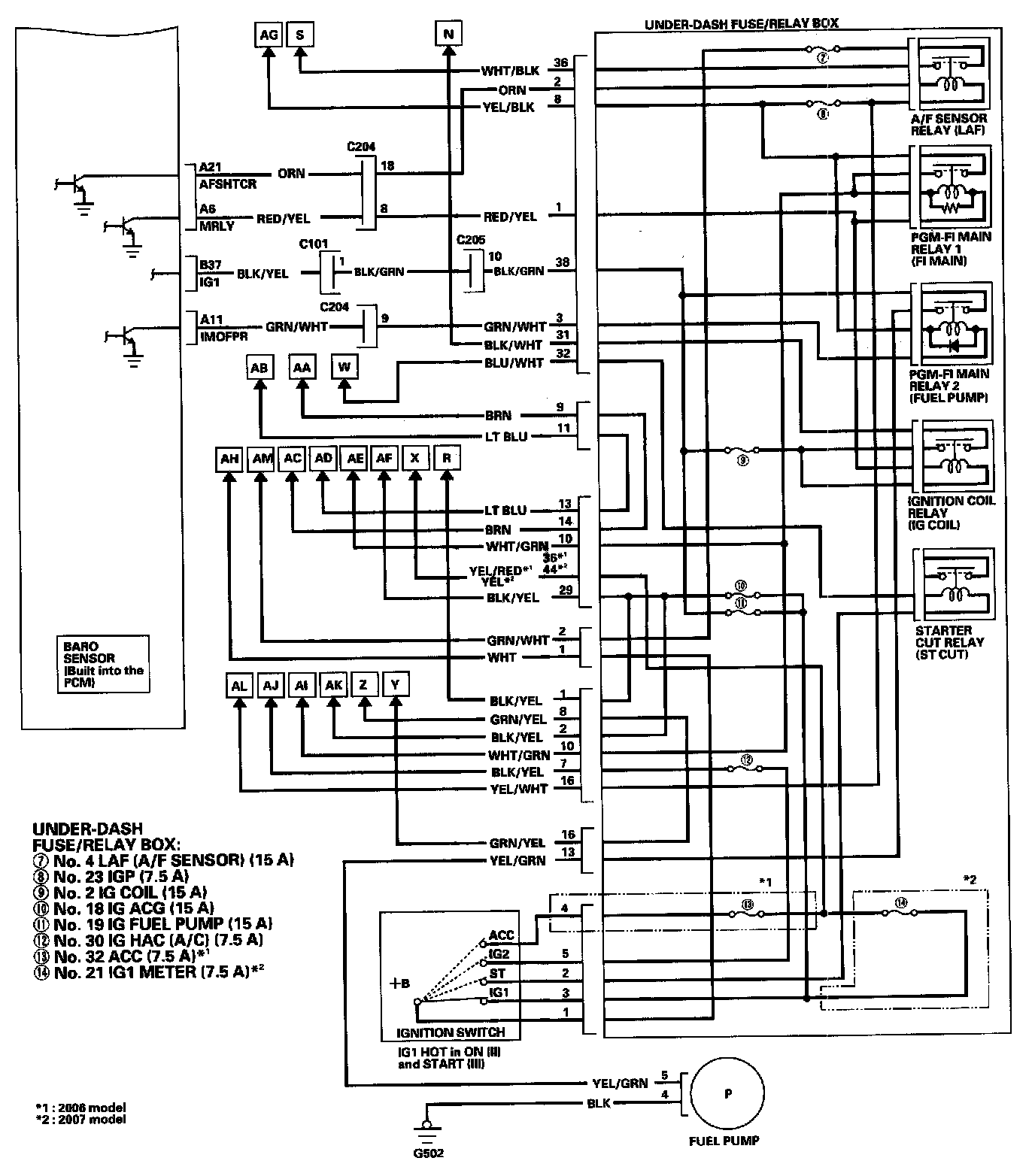

PCM Circuit Diagram Part 4:

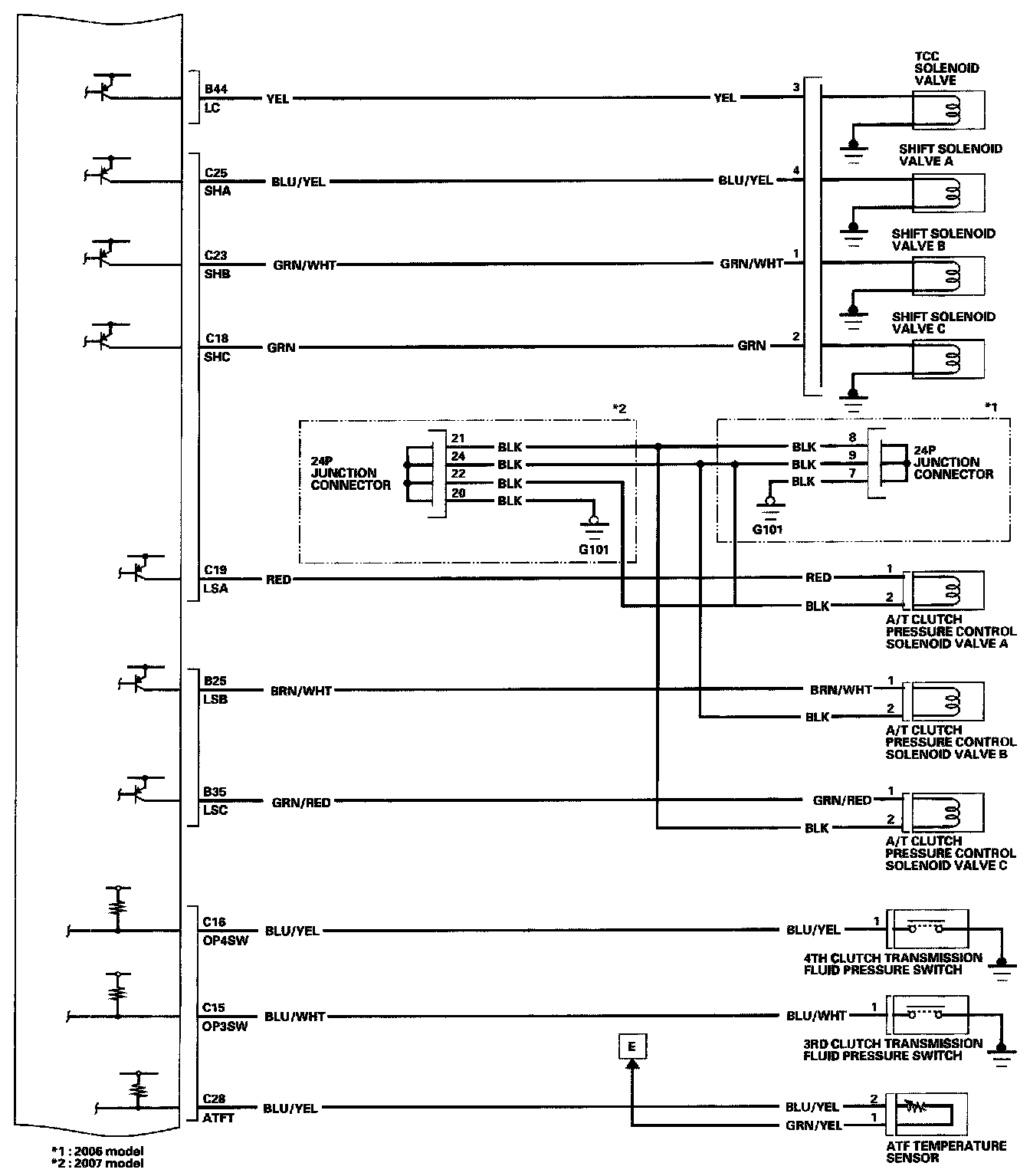

PCM Circuit Diagram Part 5:

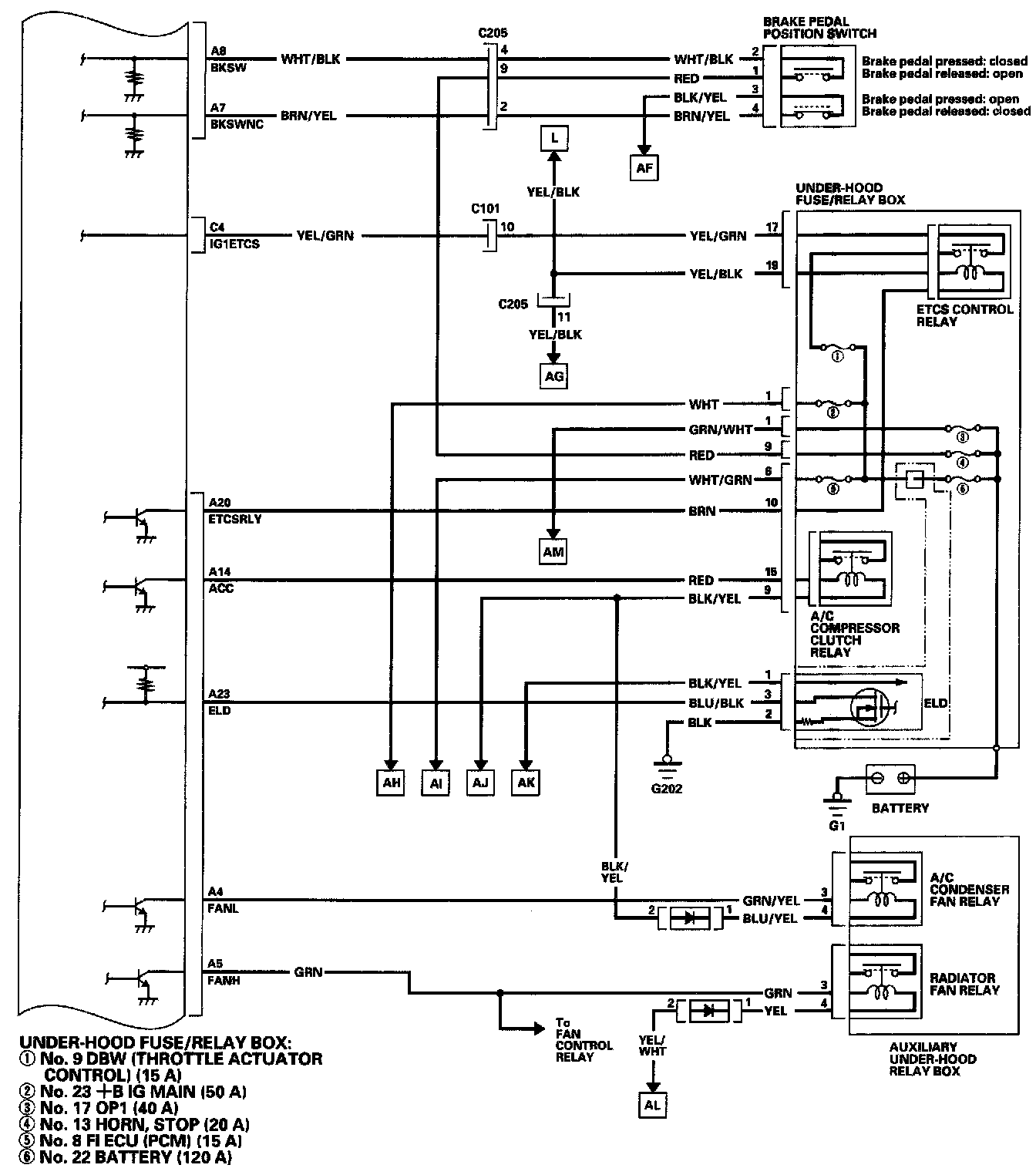

PCM Circuit Diagram Part 6:

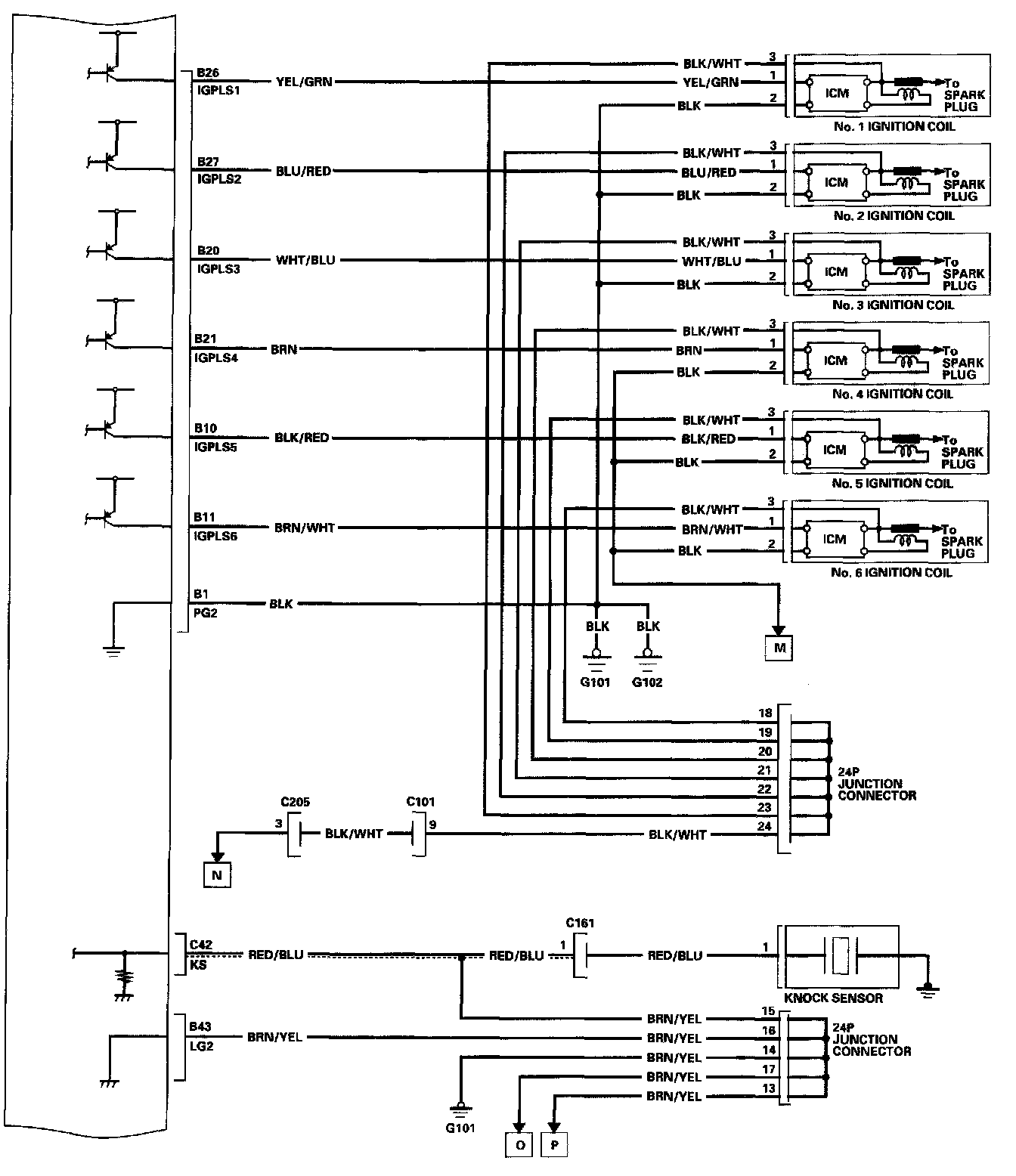

PCM Circuit Diagram Part 7:

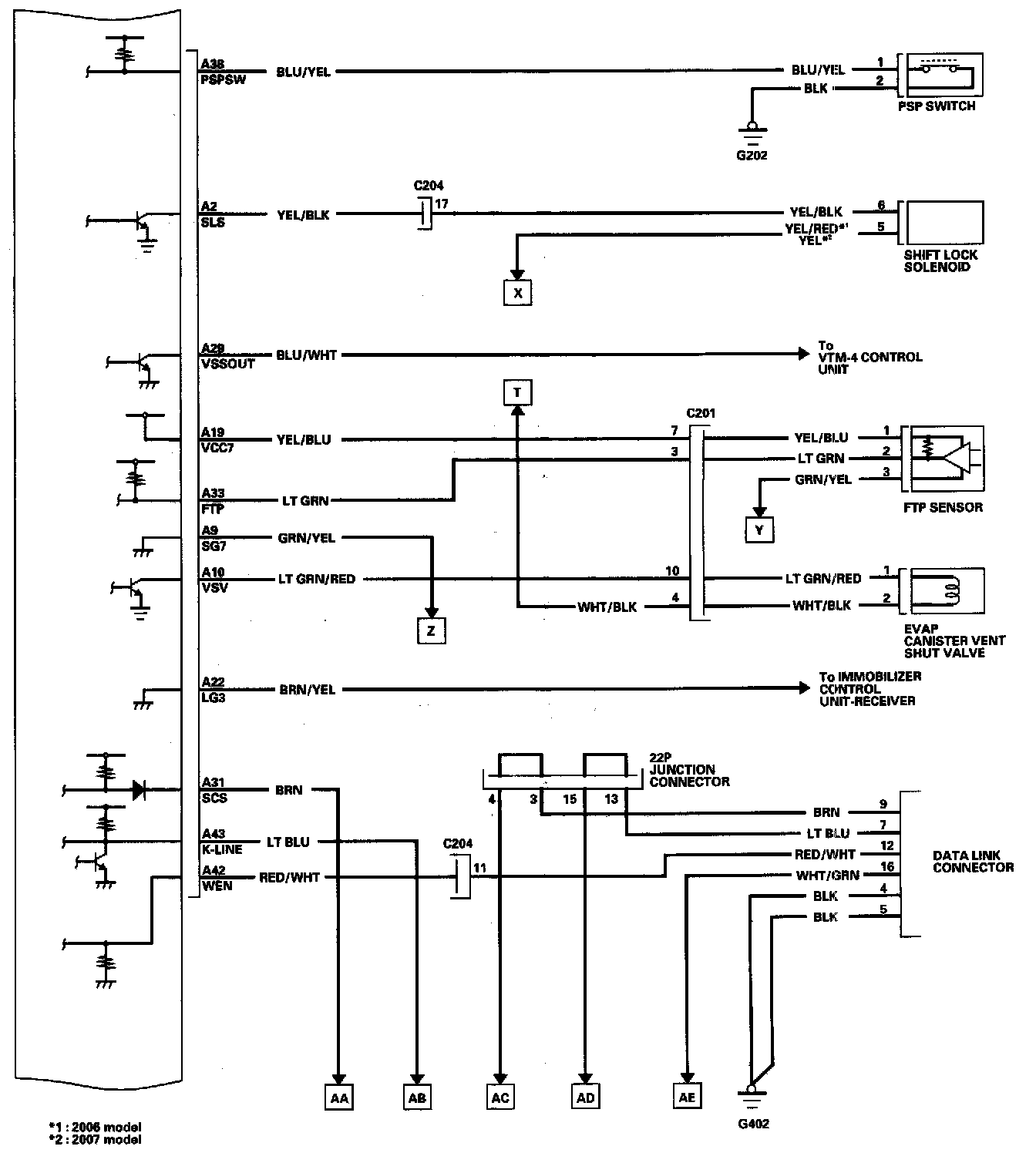

PCM Circuit Diagram Part 8:



PCM Circuit Diagram Part 9:



PCM Circuit Diagram Part 10:



PCM Circuit Diagram Part 11:
