Power and Ground Distribution
>>
Fuse
>>
Locations
>>

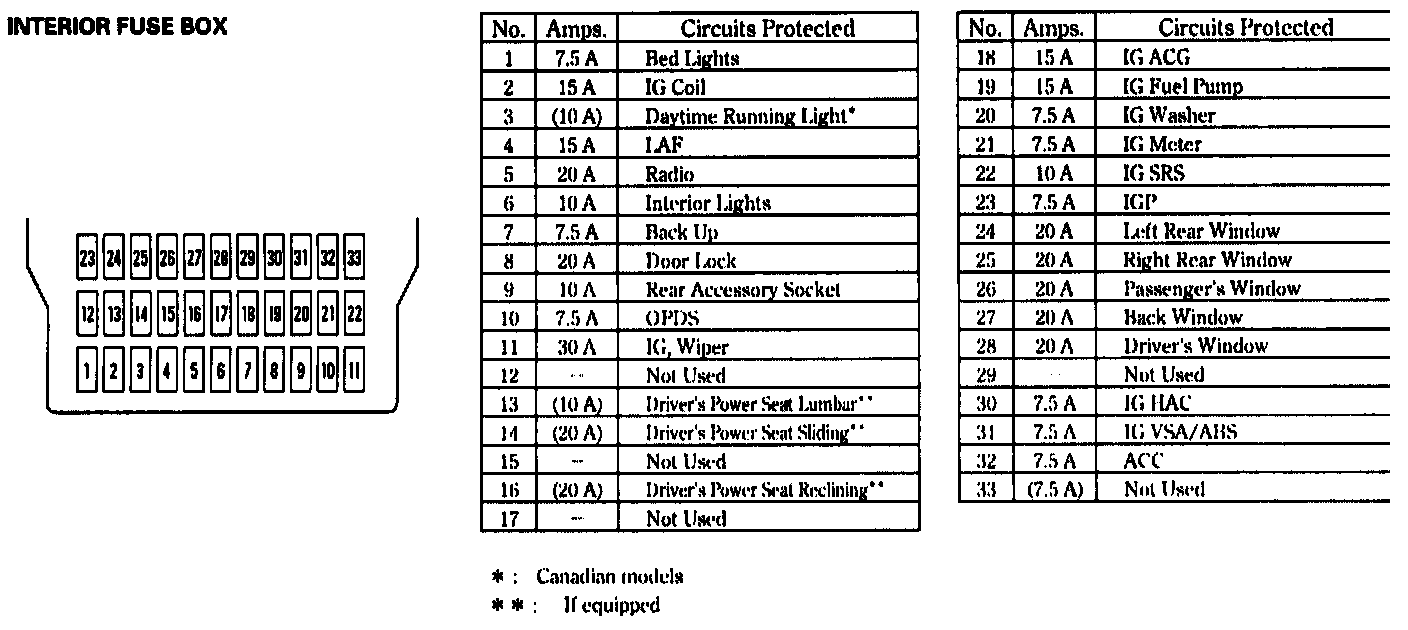

Under-dash Fuse/Relay Box
Under-dash Fuse/Relay Box

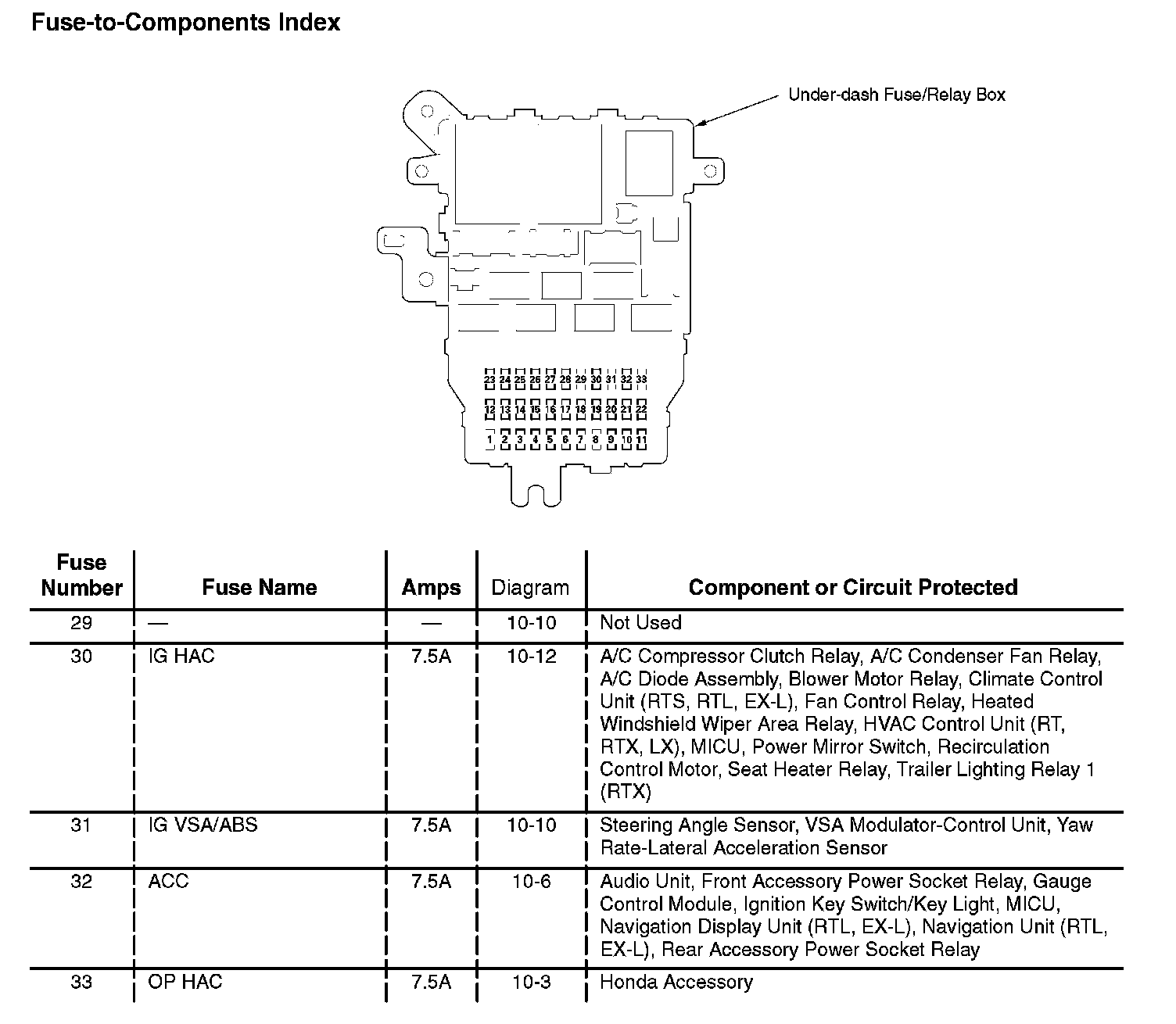

Under-dash Fuse/Relay Box, Part 1 Of 3:

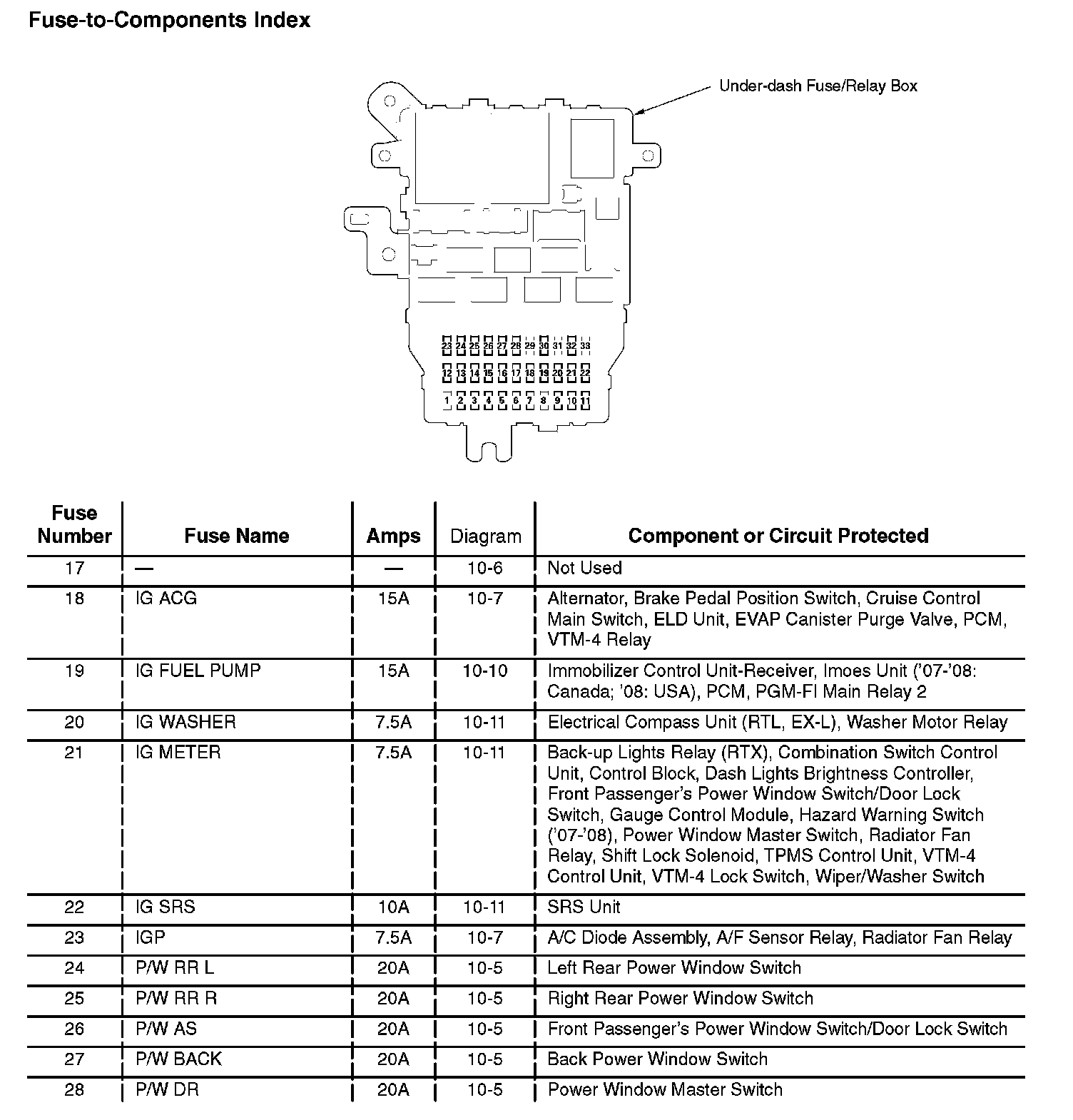

Under-dash Fuse/Relay Box, Part 2 Of 3:

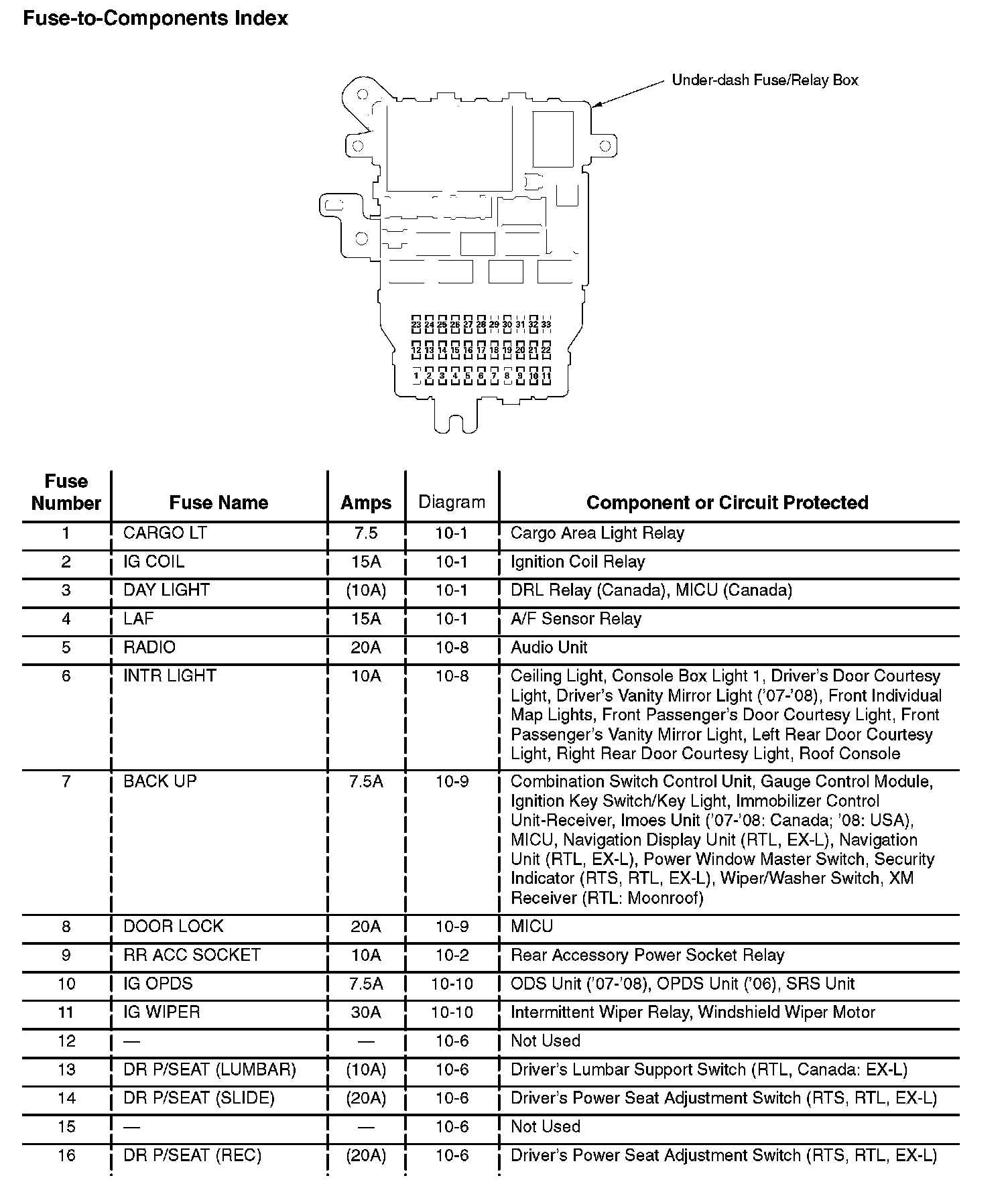

Under-dash Fuse/Relay Box, Part 3 Of 3:
